| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | CE |
| Dimension(L*W*H): | / |
| Weight: | / |
| Power(W): | / |
| Voltage: | / |
| Model Number: | MT-300E |
| Brand Name: | OHA |
| Place of Origin: | China (Mainland) |
| Power Source: | CNC |
| CNC or Not: | CNC |
| Condition: | New |
| Punch Force(kn): | 300 |
| Max.processing Sheet Size(mm): | 1250x5000 |
| Max.processing Sheet Thickness(mm): | 3.2/6.4 |
| Max.Punch Diameter per Onece(mm): | 88.9 |
| No. of station(NO.): | 32 |
| Hole Accuracy(mm): | +/-0.10 |
| Max.Sheet moving speed X-axis(m/min): | 80 |
| Max.Sheet moving speed Y-axis(m/min): | 60 |
| Turret Potating Speed(rpm): | 30 |
| CNC system: | BECKHOFF |
Quick Details
Specifications

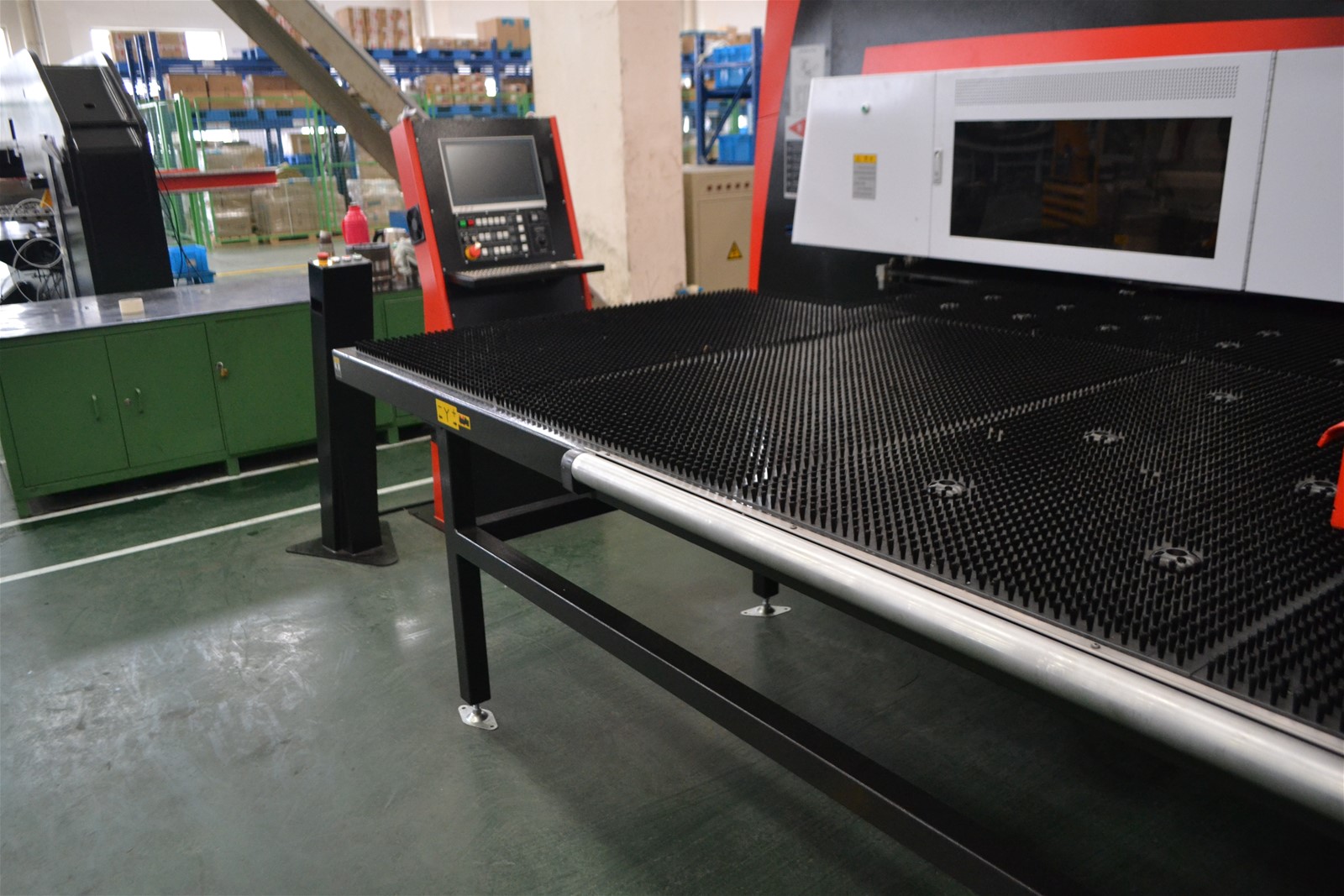

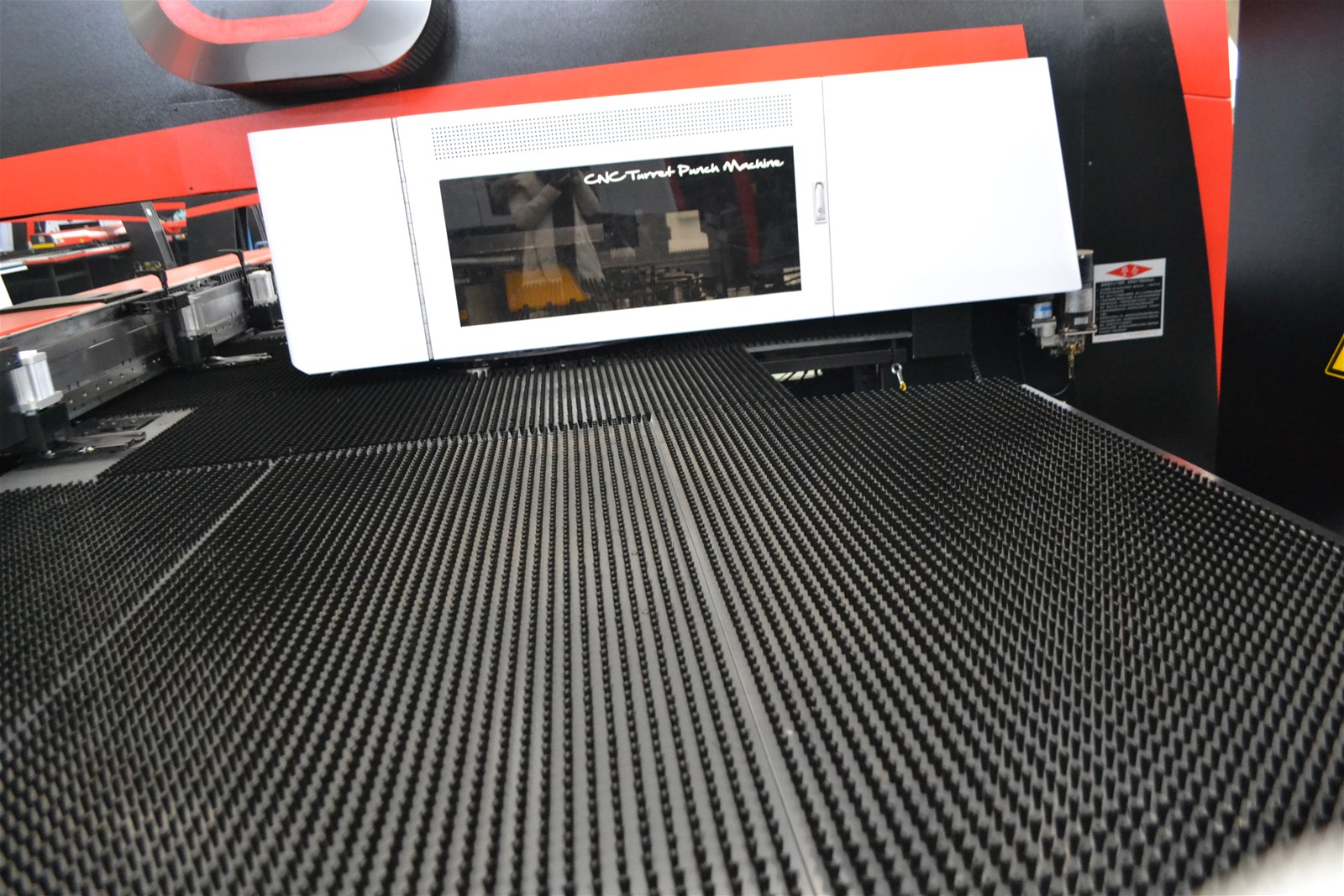

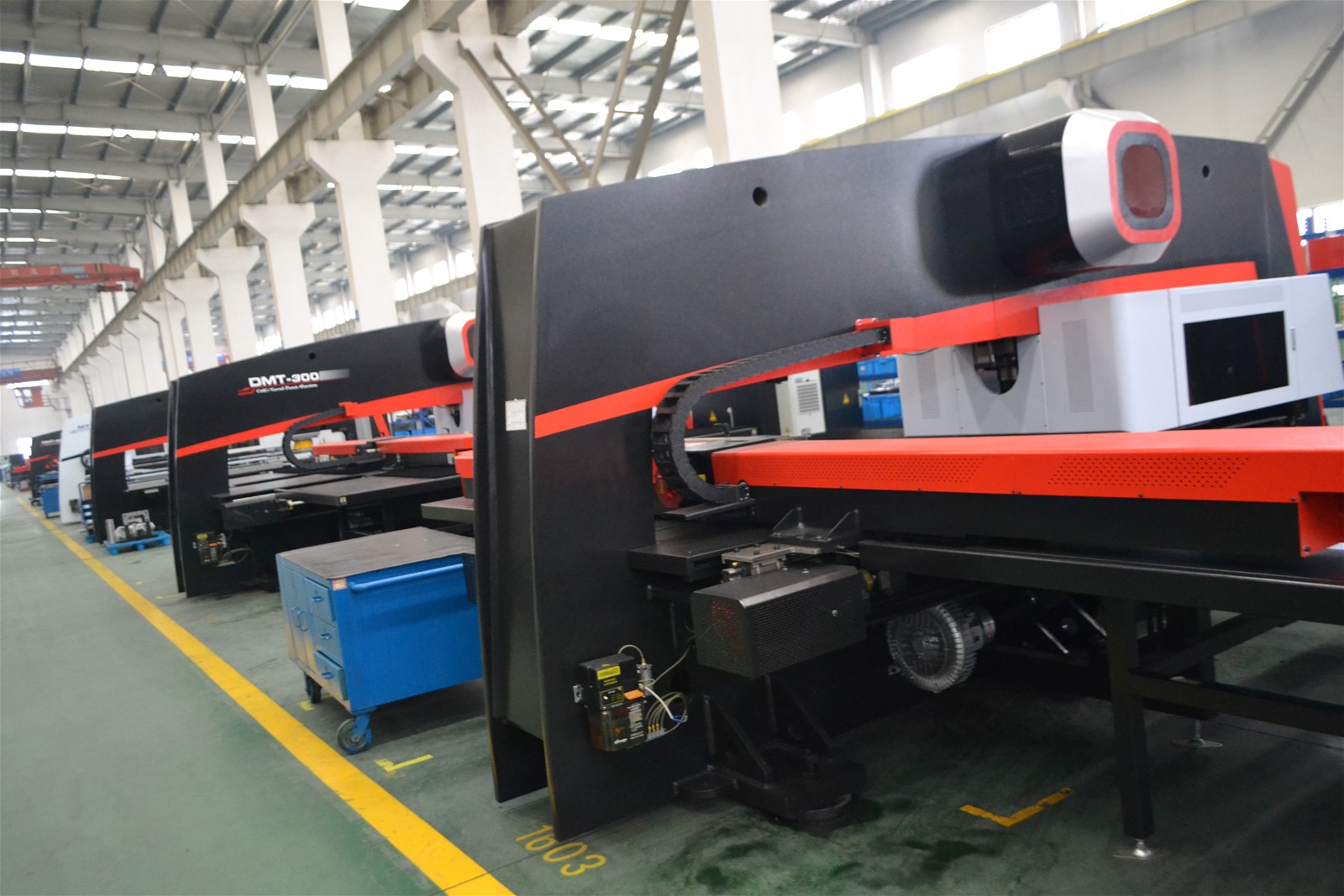

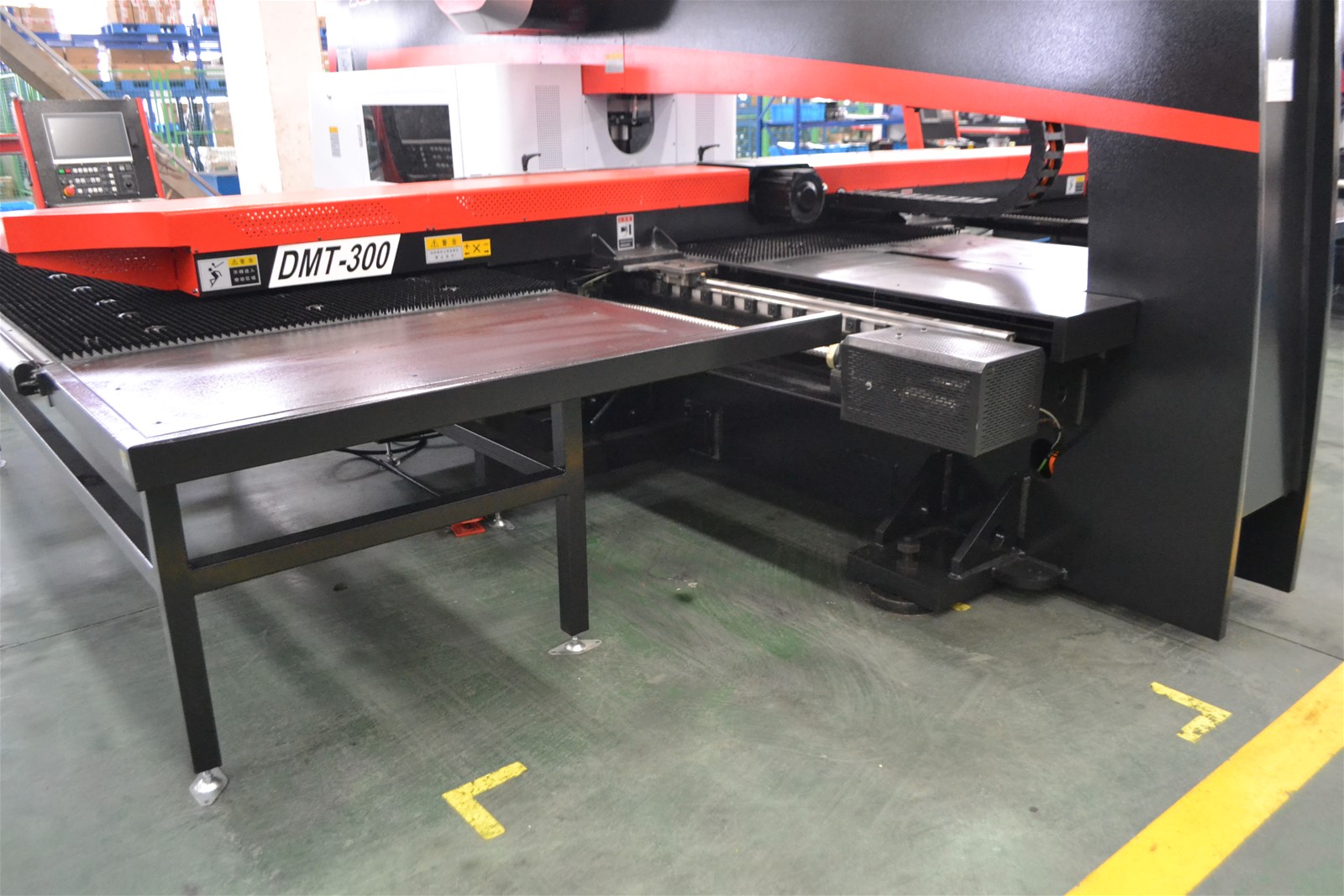

MT300E SERIES CNC TURRET PUNCH PRESS
Technical specifications:| Type | MT-300E |
| Punch Force(kn) | 300 |
| Max.processing Sheet Size(mm) | 1250x5000 |
| Max.processing Sheet Thickness(mm) | 3.2/6.4 |
| Max.punch diameter per once(mm) | 88.9 |
| NO.of station(NO.) | 32 |
| Hole Accuracy(mm) | +/-0.10 |
| Max sheet moving speed X-axis(m/min) | 80 |
| Max sheet moving speed Y-axis(m/min) | 60 |
| Max punch hit at 1mm&4mm(hpm) | 780 |
| Max punch hit at 25mm&4mm X-axis(hpm) | 420 |
| Max punch hit at 25mm&4mm Y-axis(hpm) | 320 |
| Turret Rotating Speed(rpm) | 30 |
| CNC system | BECKHOFF |
| Controling Axis(NO.) | 5 |
| Both of the models metioned above can be designed into the stroke of 1500mm | / |
Our customers:
RFQ:
If there is any other problem,just feel free to contact us.
