| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE,ISO,BV,SGS |
| Weight: | Customized as your request |
| Dimension(L*W*H): | Customized as your request |
| Power(W): | 2KW-75KW |
| Voltage: | 220V/380V |
| Model Number: | XLB |
| Brand Name: | Yefei |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

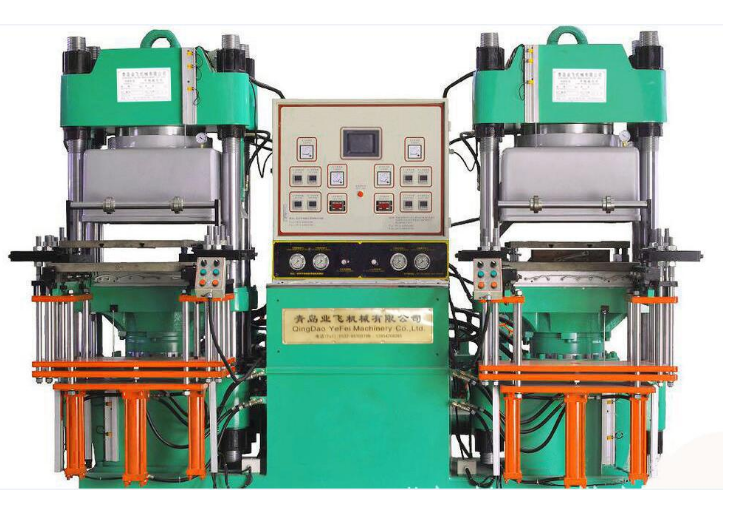

vacuum front lift-up machine series: rubber silicone making machine, vulcanizer, rubber
hydraulic press, plate vulcanizing press,plate vulcanizing machine made in china
Our machine applys to produce all kinds of rubber or silicone material product such as phone case, silicone band,
wrist band,silicone home supplies,sealing rings through compression molding or injection molding.
Characteristics:
1.suitable for two-layer or three-layer mold
2.every operations running through the touching screen, safe and simple
3.a self-adjusting oil-way system to ensure the stable performance and reduce noise
4.adopt double powers, double oil pumps, double motors and double coolers to promote production efficiency
5.lift-up opening mold
6.A Safety grating has been used to ensure the security of your operators while operating
7.adjustable speed of mold opening
Other types:
hydraulic press, plate vulcanizing press,plate vulcanizing machine made in china
Our machine applys to produce all kinds of rubber or silicone material product such as phone case, silicone band,
wrist band,silicone home supplies,sealing rings through compression molding or injection molding.
Characteristics:
1.suitable for two-layer or three-layer mold
2.every operations running through the touching screen, safe and simple
3.a self-adjusting oil-way system to ensure the stable performance and reduce noise
4.adopt double powers, double oil pumps, double motors and double coolers to promote production efficiency
5.lift-up opening mold
6.A Safety grating has been used to ensure the security of your operators while operating
7.adjustable speed of mold opening
Other types:
| TYPE | XLB 100T | XLB-200T | XLB-250T | XLB-300T | XLB-350T | XLB-500T |
| clamping force(ton) | 100 | 200 | 250 | 300 | 350 | 500 |
| stroke(mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| heating plate size(mm) |
up:400x380 down:400x400 |
up:503x508 down:560x560 |
up:600x600 down:600x650 |
up:600x600 down:600x650 |
up:700x700 down:700x750 |
up:1000x100 down:1200x1000 |
| horse power(hp) | 5.5x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| mold opening | up/down-in/oput 2RT/3RT/4RT | |||||
| vaccum pump(kw) | 2 | 3 | 3 | 3 | 3 | 4 |
| total power(kw) | 23 | 45 | 52 | 60 | 65 | 112 |
