The GSM 3G Gate Opener is special for authorized door access, and require turning ON/OFF your equipments remotely with a FREE call from your mobile phone and protect your assets. It supports to open the gate at the specified time. Also, the historical data can be read out via USB port.

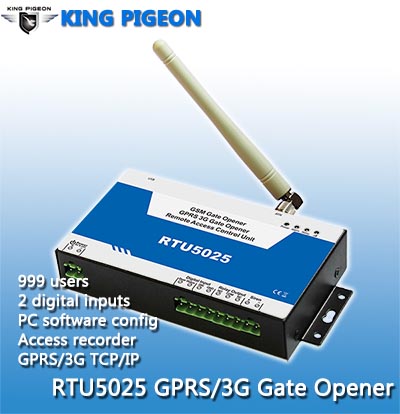

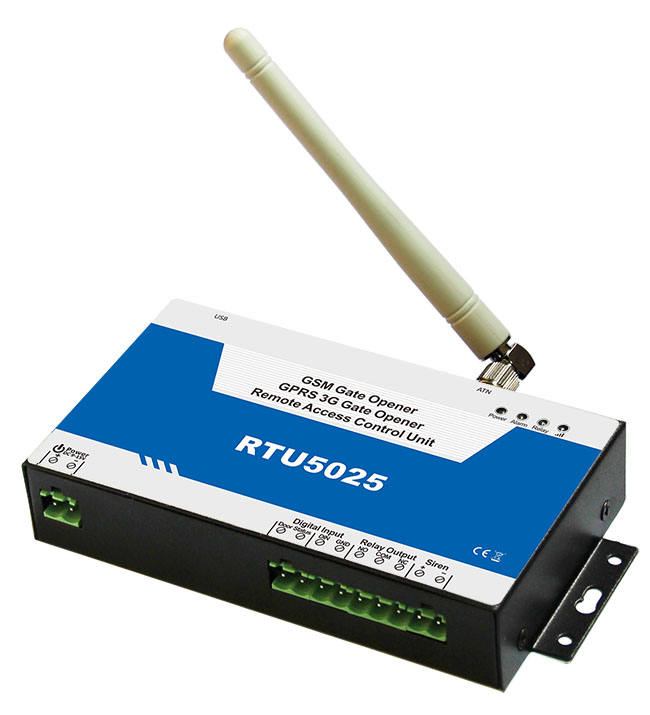

Model	DIN	Relay Output	Authorized Users	Memory	Specified Time	USB Port	GPRS
RTU5024	X	1	200	X	Yes	X	X
RTU5025	2	2	999	1000 Record	Yes	Yes	Yes

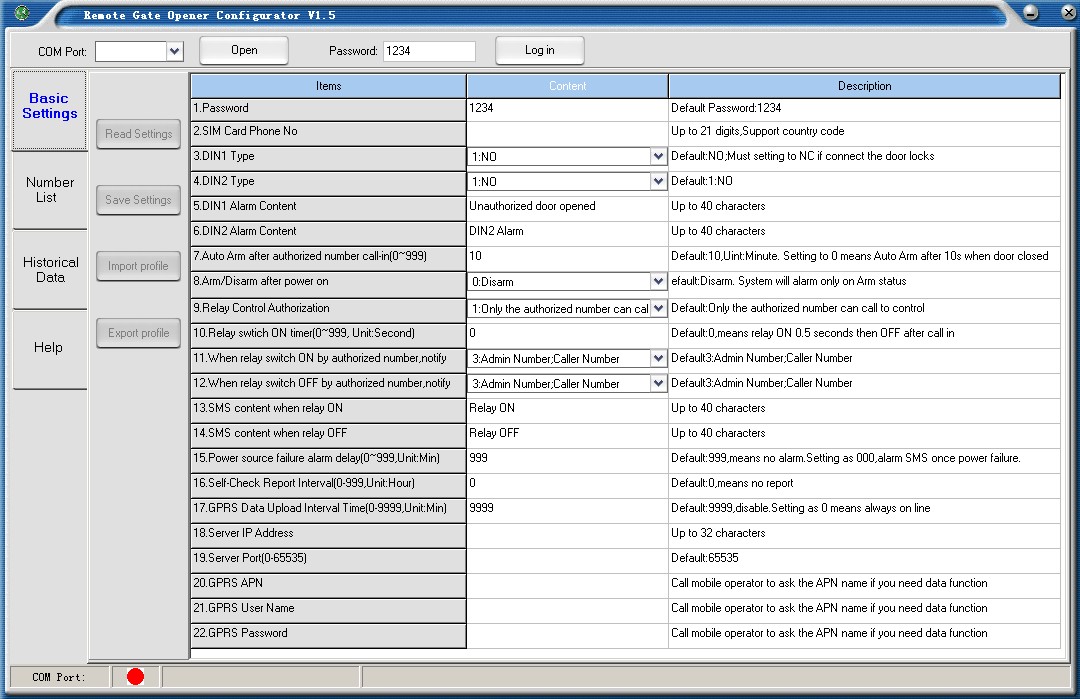

Notice	RTU5025 support Door Status Detection, PC Configurator, Memory,3G WCDMA, CDMA2000 and more functions.

>>>>>RTU5015 GSM Remote Gate Opener:

The GSM Gate Opener RTU5015 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems.

Actually the GSM Gate Opener RTU5015 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.

2 Digital Iutput (NC/NO, dry contact) Can use for Water Level Detector, Gas Detector, Smoke Detector, PIR Motion Detector, Door Magnets Sensor.etc.

1 Relay Output (3A/240VAC, NC and NO, Dry Contact) Well used for remotely switch ON/OFF equipments by Free Charge Phone Call.

Just dial from Authorized User number(Up to 64 users). then the Barrier and doors are opened, or the machine are turn ON or OFF by the GSM Gate Opener RTU5015. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carry out the turn ON/OFF action.

The RTU5025 supports GPRS communication function, very suitable for remotely monitoring outdoor cabinets and stations of telecom company, traffic origination, power supply company and so on. It can be authorized different repair person or maintains person to open the cabinets or stations at the specified time, saving time to get the keys for the locks and saving cost to repair or replace the locks while the person lost the key. And also can remote monitoring the door is opened or closed, or illegal opened.

1. Quad-band, 3G WCDMA, 3G CDMA, can work in the worldwide GSM and 3G Networks;

2. No call charges. the GPRS-3G Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';

3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

4. Add or remove users by SMS Text command or over GPRS Network or USB Port;

5. No need to provide a remote control or keys for different users;

6. Up to 999 authorized phone numbers can be configured at the specified time;

7. Remotely upload the historical data or via USB port, the record capacity is 10000events;

8. 1 Digital inputs for motion sensors or other sensors to protect your door and windows;

9. 1 input special for monitoring door status and automatically armed when door closed;

10. 1 output with relay rating 3A/240VAC for connecting the switch of the door or machines;
