| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | ISO9001,CE |
| Dimension(L*W*H): | 2040*1320*3035mm |
| Weight: | 9900kg |
| Power(W): | 11kw |
| Voltage: | 220V / 380V |
| Model Number: | JH21-125T |
| Brand Name: | Lottyes |
| Place of Origin: | China (Mainland) |
| Power Source: | Pneumatic |
| CNC or Not: | CNC |
| Condition: | New |
| Nominal pressure: | 1250KN |
| Nominal stroke: | 6mm |
| Slide stroke: | 160mm |
| Mold set height: | 350mm |
| Mold height adjusting amount: | 80mm |
| Slide block central distance: | 350mm |
| Working table thickness: | 140mm |
| Stand column distance: | 760mm |
| Air pressure: | 0.55Mpa |
Quick Details
Specifications
Introduction:

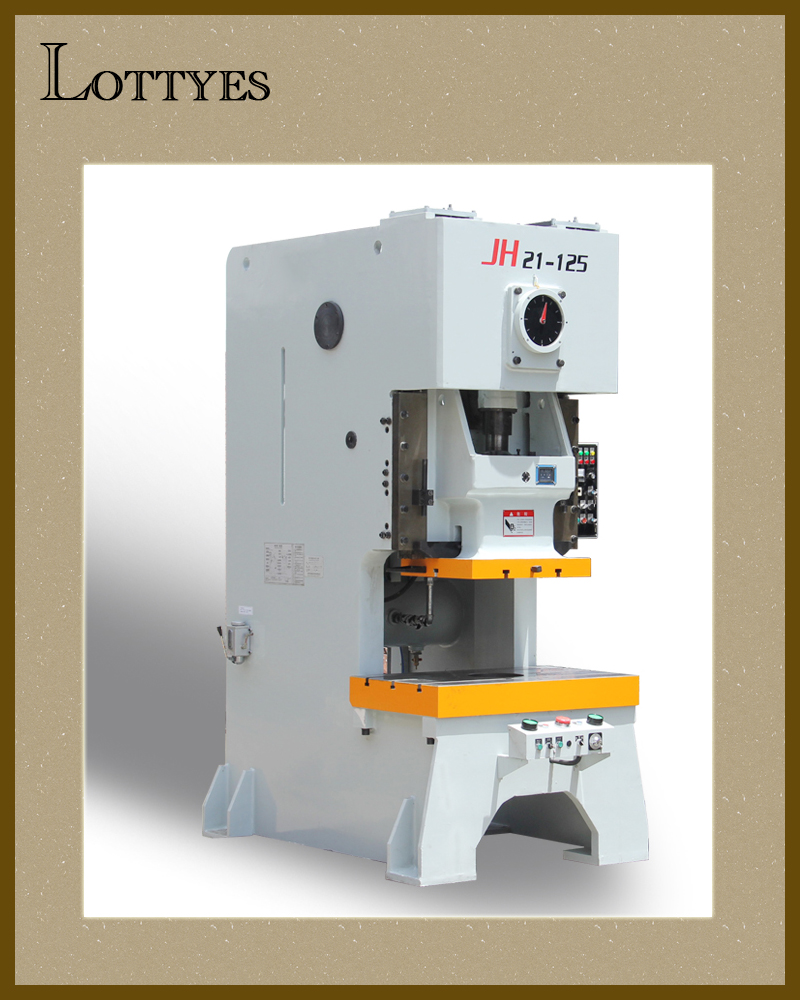

The JH21-125 press machine adopts the low inertia combined dry pneumatic friction clutch and brake, which has smoother press performance and easier maintenance, so to ensure reliable safety and flexible action,Iow noise, long service life.
Features:
1. Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability;
2. Vertical located crankshaft, compact structure;
3. The crankshaft undergoes grinding treatment after high frequency quenching;
4. Lengthened six-face rectangle guide with a surface of bronze plate;
5. Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact;
6. PLC control and imported safety duplex valve;
7. Wet type combined multi discs friction clutch and brake;
8. Hydraulic overload protected.
Technical Parameter:
|
Item |
Units |
Model |
||
|
JH21-125 |
||||
|
Nominal pressure |
KN |
1250 |
||
|
Nominal stroke |
mm |
6 |
||
|
Slide stroke |
mm |
160 |
||
|
Stroke number |
Constant speed |
min-1 |
50 |
|
|
Adjust speed(optional) |
min-1 |
40-60 |
||
|
Mold set height |
mm |
350 |
||
|
Mold height adjusting amount |
mm |
80 |
||
|
Slide block central distance |
mm |
350 |
||
|
Working table size |
Front and back |
mm |
680 |
|
|
Left and right |
mm |
1150 |
||
|
Working table hole size |
Front and back |
mm |
350 |
|
|
Left and right |
mm |
480 |
||
|
Round |
mm |
φ400 |
||
|
Working table thickness |
mm |
140 |
||
|
Sliding block underside size |
Front and back |
mm |
540 |
|
|
Left and right |
mm |
680 |
||
|
Die shank hole size |
Diameter |
mm |
60 |
|
|
Depth |
mm |
80 |
||
|
Stand column distance |
mm |
760 |
||
|
Motor power |
KW |
11 |
||
|
Air pressure |
Mpa |
0.55 |
||
|
Weight |
kg |
9900 |
||
