| Warranty: | one year |
|---|---|
| Certification: | ISO9001,CE |
| Dimension(L*W*H): | 1550*1140*2280mm |
| Weight: | 2660kg |
| Power(W): | 3kw |
| Voltage: | 220V / 380V |
| Model Number: | J23-40T |
| Brand Name: | Lottyes |
| Place of Origin: | China (Mainland) |
| Power Source: | Mechanical |
| CNC or Not: | Normal |
| Condition: | New |
| Nominal pressure: | 400KN |
| Nominal stroke: | 7mm |
| Slide stroke: | 100mm |
| Mold set height: | 290mm |
| Mold height adjusting amount: | 75mm |
| Slide block central distance: | 210mm |
| Stand column distance: | 290mm |
| Working table thickness: | 60mm |
| Inclination Angle: | 15 degree |
Quick Details
Specifications
We are Free Member because we strive to put every penny on products, rather than the endless advertising. As is known to all, whatever you're given, you pay for. So, do please equally treat the Premium Member and Free Member.
Introduction:

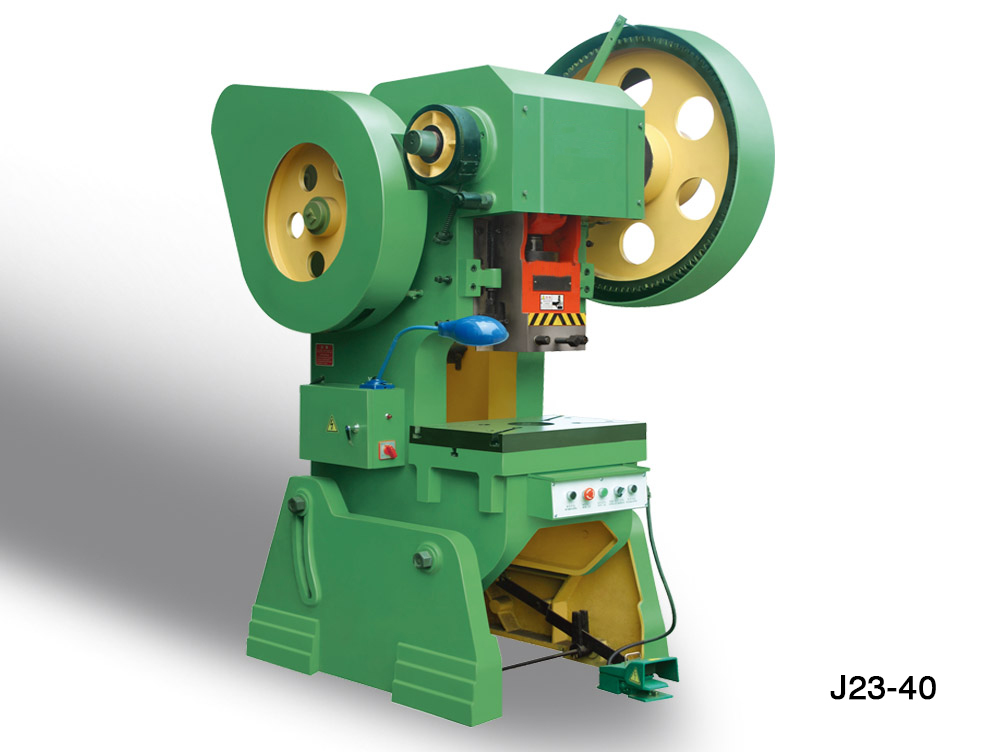

The puncher is a general punch machine used for pressing sheet metal, which is suitable for cold pressing, such as shearing, punching, blanking, bending and shallow drawing, but it is not suitable for stamping. The body of the press machine can be tilted so as to facilitate the finished products falling down from the die.
Features:
(1) Large operation space, and the movable bolster could be moved out of frame to set
the die. The structure is simple and the appliance is also beautiful.
(2) The machine adopts double safety valve to ensure the accurate implementation of the clutch instruction.
(3)It has both hands button and foot switch to achieve continuous, single and inching practices.
(4)Electrical components are in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
Technical Parameter:
|
Item |
Units |
Model |
|
|
J23-40 |
|||
|
Nominal pressure |
KN |
400 |
|
|
Nominal stroke |
mm |
7 |
|
|
Slide stroke |
mm |
100 |
|
|
Stroke number |
min-1 |
55 |
|
|
Mold set height |
mm |
290 |
|
|
Mold height adjusting amount |
mm |
75 |
|
|
Slide block central distance |
mm |
210 |
|
|
Working table size |
Front and back |
mm |
400 |
|
Left and right |
mm |
610 |
|
|
Working table hole size |
Front and back |
mm |
150 |
|
Left and right |
mm |
300 |
|
|
Diameter |
mm |
200 |
|
|
Sliding block underside size |
Front and back |
mm |
220 |
|
Left and right |
mm |
242 |
|
|
Die shank hole size |
Diameter |
mm |
50 |
|
Depth |
mm |
70 |
|
|
Stand column distance |
mm |
290 |
|
|
Working table thickness |
mm |
60 |
|
|
Inclination Angle |
° |
15 |
|
|
Boundary dimension |
Front and back |
mm |
1550 |
|
Left and right |
mm |
1140 |
|
|
Height |
mm |
2280 |
|
|
Motor power |
KW |
3 |
|
|
Weight |
kg |
2660 |
|
