After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | one year |
Certification: | ISO9001,CE |
Dimension(L*W*H): | 1990*1500*2960mm |
Weight: | 5800kg |
Power(W): | 7.5kw |
Voltage: | 220V / 380V |
Model Number: | J23-80T |
Brand Name: | Lottyes |
Place of Origin: | China (Mainland) |
Power Source: | Mechanical |
CNC or Not: | Normal |
Condition: | New |
Nominal pressure: | 800KN |
Nominal stroke: | 7mm |
Slide stroke: | 130mm |
Stroke number: | 40min-1 |
Mold set height: | 390mm |
Mold height adjusting amount: | 80mm |
Slide block central distance: | 310mm |
Stand column distance: | 400mm |
Working table thickness: | 85mm |
Inclination Angle: | 20 degree |
Quick Details
Specifications
Introduction:

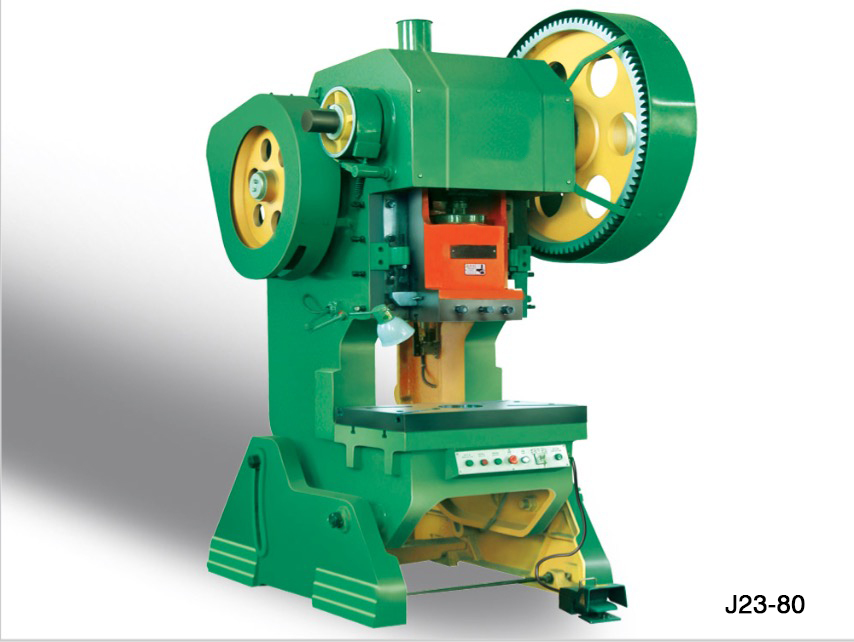

The J23-80 puncher press machine is a general punch machine used for pressing sheet metal, which is commonly used in watch, toys, tableware, telecommunications, instrumentation, electrical machine, automobile making and so many other fields.
When the press machine is equipped with the automatic feeding device, it can carry out semi-automatic pressing. The nominal force of the equipment occurs 5mm distance from the slider to bottom dead center. In the design of cold pressing process, the working rules are selected according to the pressure curve diagram. When selecting, the intersection between use pressure and corresponding crank angle must be within the scope of strength.
Technical Parameter:
Item |
Units |
Model |
|
J23-80 |
|||
Nominal pressure |
KN |
800 |
|
Nominal stroke |
mm |
7 |
|
Slide stroke |
mm |
130 |
|
Stroke number |
min-1 |
40 |
|
Mold set height |
mm |
390 |
|
Mold height adjusting amount |
mm |
80 |
|
Slide block central distance |
mm |
310 |
|
Working table size |
Front and back |
mm |
570 |
Left and right |
mm |
860 |
|
Working table hole size |
Front and back |
mm |
310 |
Left and right |
mm |
450 |
|
Diameter |
mm |
400 |
|
Sliding block underside size |
Front and back |
mm |
360 |
Left and right |
mm |
400 |
|
Die shank hole size |
Diameter |
mm |
60 |
Depth |
mm |
70 |
|
Stand column distance |
mm |
400 |
|
Working table thickness |
mm |
85 |
|
Inclination Angle |
° |
20 |
|
Boundary dimension |
Front and back |
mm |
1990 |
Left and right |
mm |
1500 |
|
Height |
mm |
2960 |
|
Motor power |
KW |
7.5 |
|
Weight |
kg |
5800 |
