Type: | Multi-Function Packaging Machine |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | CE |
Dimension(L*W*H): | 550*500*1700mm |
Model Number: | VP-50KB |
Brand Name: | Van Pack |
Place of Origin: | China (Mainland) |
Power: | 1.2KW |
Voltage: | 220V |
Driven Type: | Electric |
Automatic Grade: | Automatic |
Packaging Material: | Paper,Plastic |
Packaging Type: | Bags,Film,Foil,Pouch |
Application: | Beverage,Chemical,Food,Medical |
Function: | Filling,Sealing,Slitting |
Condition: | New |
Quick Details
Specifications

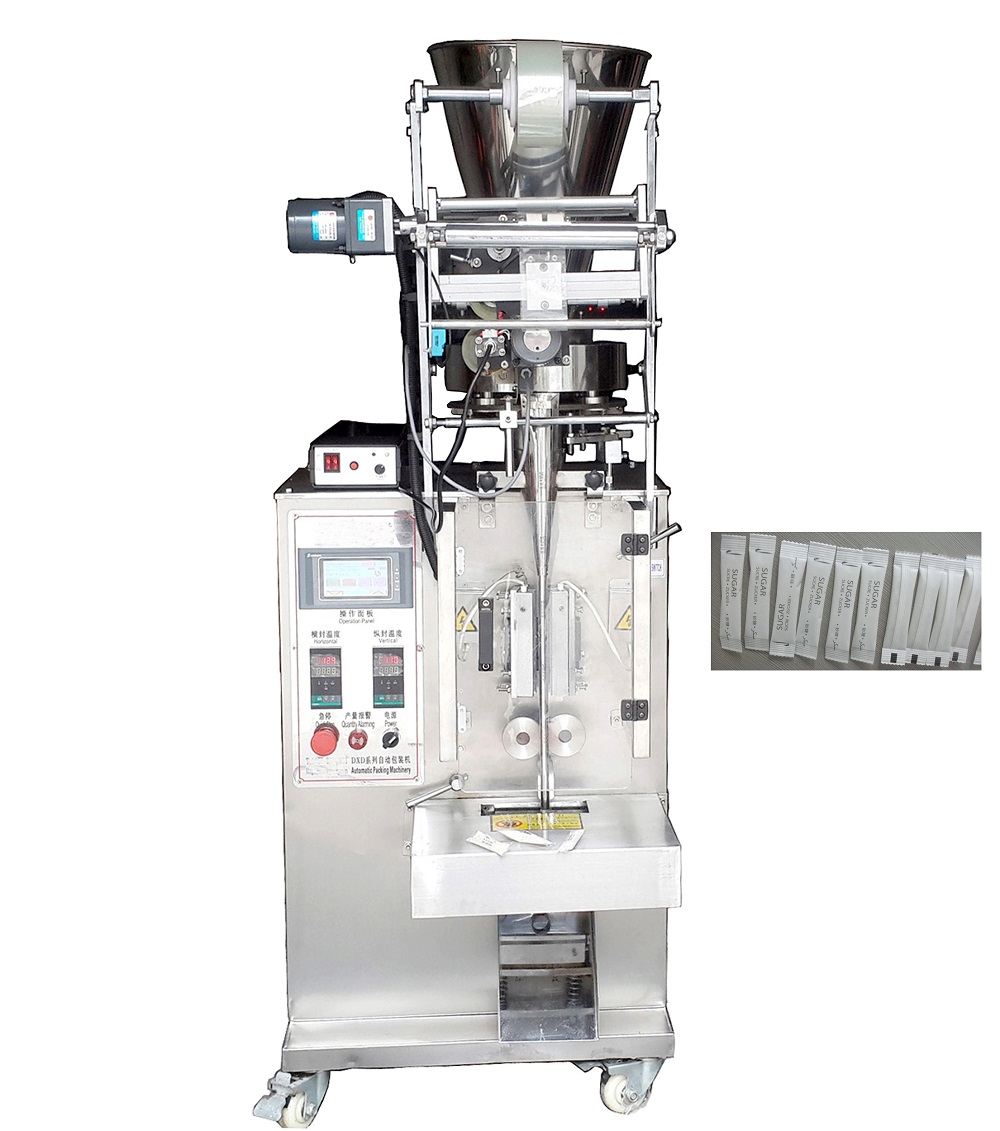

Automatic Sugar Packing Machine
1.Brief Introduction:
Be able to weight, make bag, fill, seal, cut off, print the date and lot number automatically. Suitable for packing seed, tea ,salt, pills, monosodium glutamate, white sugar, coffee(3 in 1 coffee or coffee powder), soup ingredients & pepper etc.
2.Techincal parameters:
Machine speed
50-70bags/minute
bag size
(L)30-180 mm (W) 17-55mm one width one bag former
Film width
Width *2+ sealing edge width *2
Film Material
Composite film/aluminum foil/paper-PE film/laminated paper
Bag type
Stick
Notch
zipper notch
Voltage
AC220V Single-phase 60HZ/50HZ
Total Power
1.2KW
Measuring range
1-5g;5-10g;10-20g;15-30g
G.W
230KG
Control system
Taiwan Delta PLC control system
touch screen
English
Measuring mode
volume cup filler(one machine is only with one set of volume cup)
Machine material
Stainless Steel 304(SS304)
3.Performance features:
Be able to weight, make bag, fill, seal, cut off, print the date and lot number automatically. Suitable for packing seed, tea ,salt, pills, monosodium glutamate, white sugar, coffee(3 in 1 coffee or coffee powder), soup ingredients & pepper
