| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 900*500*1800mm |
| Model Number: | VP-CY2 |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 1.5KW |
| Voltage: | 220V |
| Driven Type: | Pneumatic |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Beverage,Chemical,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

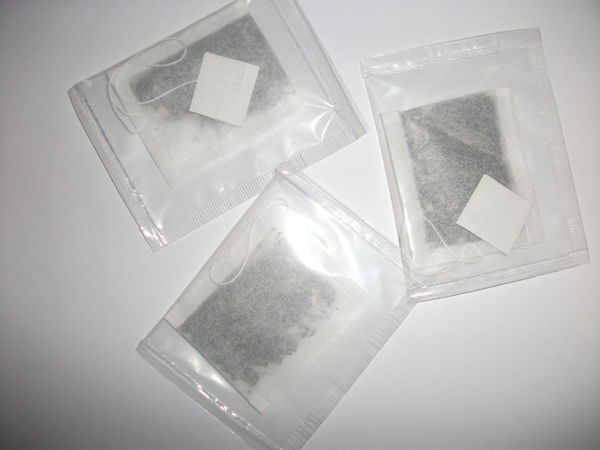

Automatic Tea Bag Packing Machine
1.Brief Introduction:
Weight, fill product to small bag, make the small bag, put small bag into big bag, seal, print the manufacture date and expiry date and batch number on outer big bag , cut off ,cut easy-tearing notch on outer bag automatically.
2.Techincal parameters:
Machine speed
30-50bags/min
Volume range
0.5g-1g;1-2grams;2-4grams;4-8grams
Outer bag size
(W)75mm (L)80-120mm one width one bag former
Filter Bag size
(W)50-60mm (L)40-65mm one width one bag former
Paper Tag
(Width)22.5-25mm (Length)22.5-25mm 25*25mm
Thread
120-180mm
Bag type
Flat notch 3 three sealing pouch
Voltage
AC110V/220V/240V Single-phase 60HZ 1.6KW
G.W
350KG
Control system
PLC control system
touch screen
Customer's official language and English
Machine size
Stainless Steel 304(SS304 ) 900*500*1800mm
Model
VP-CY2
3.Performance features:
Weight, fill product to small bag, make the small bag, put small bag into big bag, seal, print the manufacture date and expiry date and batch number on outer big bag , cut off ,cut easy-tearing notch on outer bag automatically.
