| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Model Number: | J21-125T |
| Brand Name: | Lottyes |
| Place of Origin: | China (Mainland) |
| Nominal pressure: | 1250KN |
| Nominal stroke: | 10mm |
| Slide stroke: | 140mm |
| Stroke number: | 38min-1 |
| Mold set height: | 480mm |
| Mold height adjusting amount: | 100mm |
| Slide block central distance: | 380mm |
| Stand column distance: | 530mm |
| Working table thickness: | 100mm |
| Motor power: | 11KW |
Quick Details
Specifications
We are Free Member because we strive to put every penny on products, rather than the endless advertising. As is known to all, whatever you're given, you pay for. So, do please equally treat the Premium Member and Free Member.
Introduction:

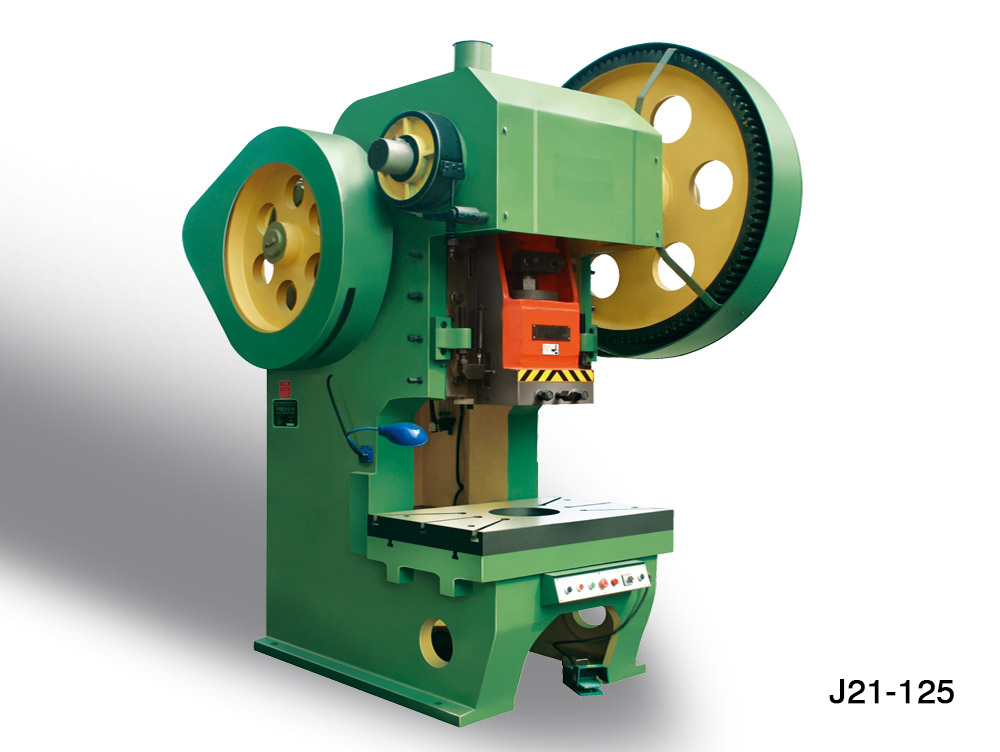

J21-125 is derived from J23-125, which adopts helical gears, rigid clutch, whole casting body, and it cannot be tilted. It is a general punch machine used for pressing watch, toys, tableware, telecommunications, instrumentation, electrical machine, automobile making and so many other fields.
When the press machine is equipped with the automatic feeding device, it can carry out semi-automatic pressing. The nominal force of the equipment occurs 5mm distance from the slider to bottom dead center. In the design of cold pressing process, the working rules are selected according to the pressure curve diagram. When selecting, the intersection between use pressure and corresponding crank angle must be within the scope of strength.
Features:
(1)The machine has both hands button and foot switch to achieve continuous, single and inching practices.
(2)Electrical components are in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
(3) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
(4)Steel welded body, tempering treatment, high rigidity, accuracy and stability.
(5)The crankshaft undergoes grinding treatment after high frequency quenching.
Technical Parameter:
|
Item |
Units |
Model |
|
|
J21-125 |
|||
|
Nominal pressure |
KN |
1250 |
|
|
Nominal stroke |
mm |
10 |
|
|
Slide stroke |
mm |
140 |
|
|
Stroke number |
min-1 |
38 |
|
|
Mold set height |
mm |
480 |
|
|
Mold height adjusting amount |
mm |
100 |
|
|
Slide block central distance |
mm |
380 |
|
|
Working table size |
Front and back |
mm |
710 |
|
Left and right |
mm |
1080 |
|
|
Working table hole size |
Front and back |
mm |
340 |
|
Left and right |
mm |
450 |
|
|
Diameter |
mm |
450 |
|
|
Sliding block underside size |
Front and back |
mm |
370 |
|
Left and right |
mm |
430 |
|
|
Die shank hole size |
Diameter |
mm |
60 |
|
Depth |
mm |
75 |
|
|
Stand column distance |
mm |
530 |
|
|
Working table thickness |
mm |
100 |
|
|
Inclination Angle |
/ |
/ |
|
|
Boundary dimension |
Front and back |
mm |
2320 |
|
Left and right |
mm |
1735 |
|
|
Height |
mm |
3110 |
|
|
Motor power |
KW |
11 |
|
|
Weight |
kg |
9800 |
|
