The following example is for you reference.


1.Brief Introduction:

  High quality machine , low price , good for carton waste



2.Techincal parameters:

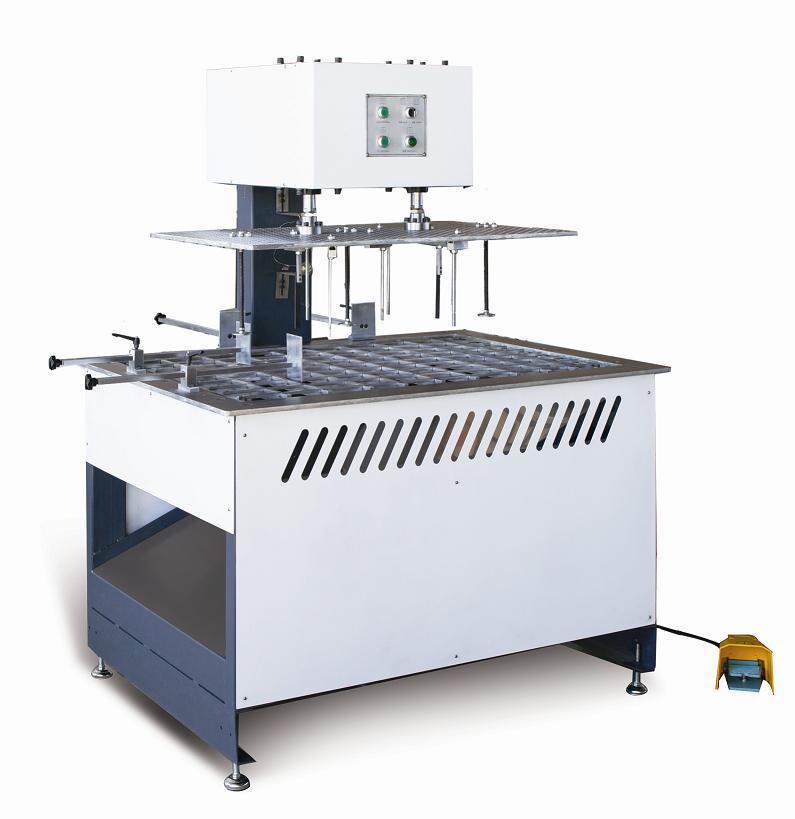

MODEL	RH-1200
UP LOCKING BOAD SIZE	960×600mm
STRIPPING SIZE	1200×650mm
THICKNESS OF CORRUGATED PAPER	≤100mm
THICKNESS OF CARDBOARD	≤50mm
WORKING PLATFORM SIZE	1260×980
MACHINE SIZE	1260×1080×1700
WEIGHT	≈420KG
POWER SUPPLY	COMPRESS AIR
INPUT	220V/50HZ
AIR INPUT	0.6-0.8MPA





3.Performance features:

Performance;

1,The machine is completed by a servo motor,PLC programmable control.

2,The machine commissioning completed by the HMI selective, simple and easy to adjust.

3,The machine contfol accessories for all full use of intemational high-end brands,the failure of low and high accuracy.

4,The machine with a fault alarm functions,such as and part of the failure,the alarm will whistle,fault will be displayed on the screen.

5,The machine can touch with emergency stop switch,if an emergency press stops automatically.
