| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Model Number: | J23-16T |
| Brand Name: | Lottyes |
| Place of Origin: | China (Mainland) |
| Nominal pressure: | 160KN |
| Nominal stroke: | 3.7mm |
| Slide stroke: | 70mm |
| Stroke number: | 120min-1 |
| Mold set height: | 210mm |
| Mold height adjusting amount: | 45mm |
| Slide block central distance: | 160mm |
| Stand column distance: | 220mm |
| Working table thickness: | 40 |
| Inclination Angle: | 20 degree |
Quick Details
Specifications
We are Free Member because we strive to put every penny on products, rather than the endless advertising. As is known to all, whatever you're given, you pay for. So, do please equally treat the Premium Member and Free Member.
Introduction:

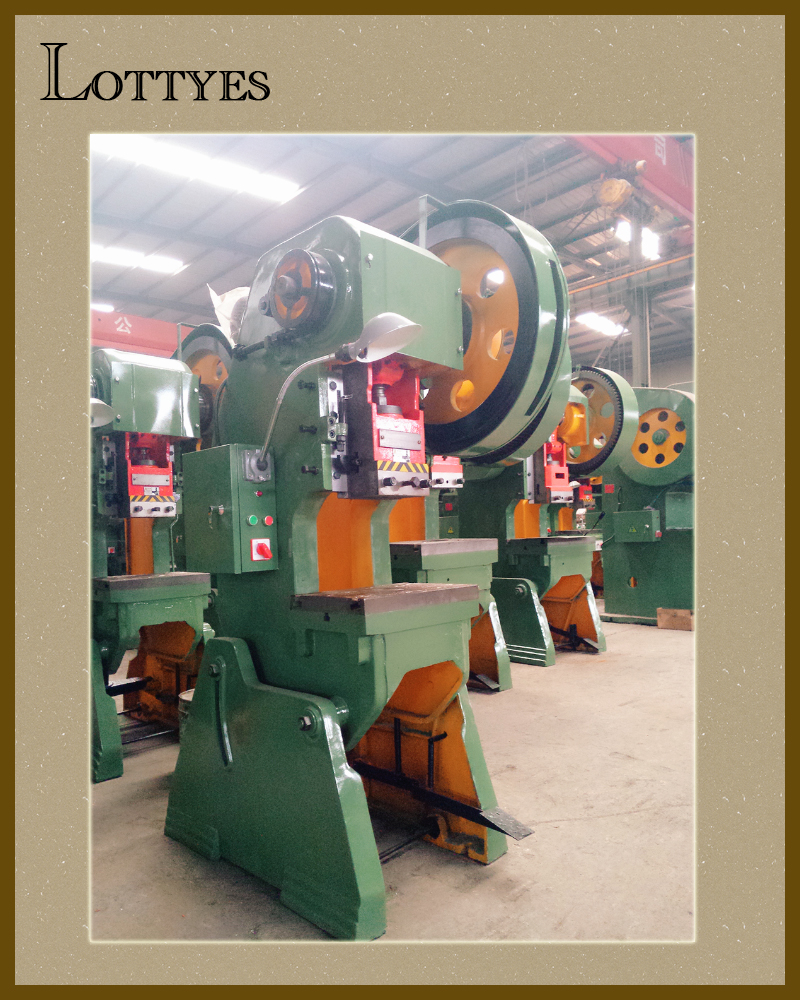

J23-16 punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance. The punch press can be used for punching holes, blanking, trimming, bending, shallow stretching and forming in national defense, aerospace, automobile, tractor, motor, electrical appliance, bearing, instruments, agricultural machine and tool, bicycle, sewing, mechanical appliance, daily hardware and coinage departments.
Technical Parameter:
|
Item |
Units |
Model |
|
|
J23-16 |
|||
|
Nominal pressure |
KN |
160 |
|
|
Nominal stroke |
mm |
3.7 |
|
|
Slide stroke |
mm |
70 |
|
|
Stroke number |
min-1 |
120 |
|
|
Mold set height |
mm |
210 |
|
|
Mold height adjusting amount |
mm |
45 |
|
|
Slide block central distance |
mm |
160 |
|
|
Working table size |
Front and back |
mm |
300 |
|
Left and right |
mm |
450 |
|
|
Working table hole size |
Front and back |
mm |
160 |
|
Left and right |
mm |
240 |
|
|
Diameter |
mm |
290 |
|
|
Sliding block underside size |
Front and back |
mm |
200 |
|
Left and right |
mm |
200 |
|
|
Die shank hole size |
Diameter |
mm |
40 |
|
Depth |
mm |
60 |
|
|
Stand column distance |
mm |
220 |
|
|
Working table thickness |
mm |
40 |
|
|
Inclination Angle |
° |
20 |
|
|
Boundary dimension |
Front and back |
mm |
1120 |
|
Left and right |
mm |
800 |
|
|
Height |
mm |
1930 |
|
|
Motor power |
KW |
1.5 |
|
|
Weight |
kg |
1120 |
|
