Quick Details

Brand Name:	QISHUAI
Model Number:	QISHUAI8+8
Material:	Alumina Ceramic
Application:	Industrial Ceramic
Type:	Ceramic Plates
Place of Origin:	China (Mainland)
name:	92% 15010050 alumina ceramic lining tile for chute
length:	3000mm or as request
width:	1800mm or as request
thickness:	10+12,8+8,8+6 and etc
feature:	wear resistant
application:	industrial ceramic
usage:	alumina ceramic
specific application:	cement,steel,power and mining
delivery time:	shipped in 15 days after deposit
payment:	TT

Specifications

Lowest price 92% 150*100*50 alumina ceramic lining tile for chute

Product information:

High Density Alumina Ceramic Tile oFfers excellent Mechanical properties, superior wear resistance and desirable corrosion Performance.
Advanced processing techniques enable Manufacturing of alumina in a variety of geometries from simple to complex Shapes and sizes allowing Qishuai to customise ceramic lining systems to suit Client specific requirements.

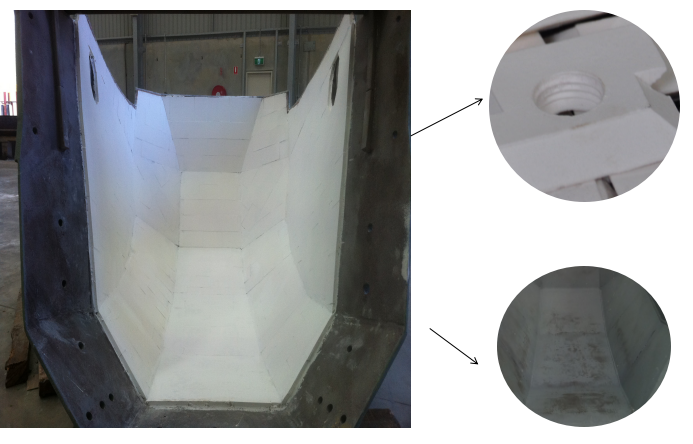

Quality alumina tile combined with Qishuai's Fully compliant and preferred installation methodology, high density alumina Ceramic overcomes temperature limitations, impact and abrasion concerns in Various environments. High Density Alumina Ceramic Tiles can be epoxy bonded or Fitted with weld ferrules to chutes; buckets; plates; pipes; bends; and cones.

Alumina Content

80-85%

90-96%

> 99.5%

99%

General Application

Lower Cost Electrical & Mechanical

High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing

Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance

Porous, Easily Degassed & Machinable

Porosity

%

0-.05

0-.05

0-.05

Variable

Density

Gm/cm3

3.45-3.50

3.55-3.75

3.75-3.95

2.4

Flexural Strength

kpsi

35.0-40.0

40.0-50.0

50.0-55.0

-

Comprehensive Strength

kpsi

260.0

> 300.0

> 300.0

-

Tensile Strength

kpsi

15.0-20.0

20.0-28.0

20.0-28.0

-

Linear Coefficient of Thermal Expansion

(cm/cm/°C) 25-300°C 25-700°C

5.9X10-6 6.5X10-6

6.3X10-6 7.0X10-6

6.5X10-6 7.5X10-6

6.5X10-67.5X10-6

Dielecctric Constant at 25°C

1 MH 10 MH

8.5-8.9 8.4-8.8

9.2-9.8 9.0-9.6

9.5-9.9 9.3-9.7

-

Dielectric Strength

Volt/mil

200

225

225

-

Te Value

°F °C

1472 800

> 1832 > 1000

> 1832 > 1000

> 1832 > 1000

Thermal Conductivity at 25°C

Cal/sec/cm2/cm/°C

.03-.04

.04-.06

.07-.08

-

Thermal Shock

Good

Good

Good

Good

Safe Use Temperature

°F °C

2550 1400

3000-3100 1650-1700

3275 1800

3275 1800

Application Industries

Coal Industry

Pasting lining plate: Inlet and Outlet pipe of medium pump, mixing pump, coal mud pump of coal plant, feed, Overflow, bottom-flow pipe of hydrocyclone, chute of sculpting sieve, medium Pipe, bottom-flow pipe of magnetic separator etc.

Power Industry

Welded lining plate: hopper, Medium speed coal mill, guard board, apron board, draught fan housing, chute, Distribution valve, coal bunker, ash &slag pipe.

Pasting lining plate: Pulverized Coal preparation system, ash handling elbow, fuel exhauster etc.

Steel,Cement Industries

Welded lining Plate:Bunker,chute,dust removal system,charging system etc.

Pasting lining Plate:Classifier,dust collection.

Chemical Industry

Transporting system, dust Removal system, processing equipment

Smelting Industry

Transporting system, batching System, roasting system, dust removal system.

Mine Industry

Materials conveying system.

Dock Industry

Materials conveying system:fixd Funnel of berth,Bucket Wheel Machine and belt conveyor transfer station,ship Unloader hopper.

Why choose ZIBO QISHUAI?

· Professional manufacturer.

·ISO9001 compliant to guarantee quality.

· Timely after sales service.

· Customized available

how to get wanted offer?

· We can offer as your designed drawings and technology Requirements.

· We can make solutions based on your application parameter types of Abrasion, system and equipment design operating temperature and materials.

Alumina Content		80-85%	90-96%	> 99.5%	99%
General Application		Lower Cost Electrical & Mechanical	High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing	Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance	Porous, Easily Degassed & Machinable
Porosity	%	0-.05	0-.05	0-.05	Variable
Density	Gm/cm3	3.45-3.50	3.55-3.75	3.75-3.95	2.4
Flexural Strength	kpsi	35.0-40.0	40.0-50.0	50.0-55.0	-
Comprehensive Strength	kpsi	260.0	> 300.0	> 300.0	-
Tensile Strength	kpsi	15.0-20.0	20.0-28.0	20.0-28.0	-
Linear Coefficient of Thermal Expansion	(cm/cm/°C) 25-300°C 25-700°C	5.9X10-6 6.5X10-6	6.3X10-6 7.0X10-6	6.5X10-6 7.5X10-6	6.5X10-67.5X10-6
Dielecctric Constant at 25°C	1 MH 10 MH	8.5-8.9 8.4-8.8	9.2-9.8 9.0-9.6	9.5-9.9 9.3-9.7	-
Dielectric Strength	Volt/mil	200	225	225	-
Te Value	°F °C	1472 800	> 1832 > 1000	> 1832 > 1000	> 1832 > 1000
Thermal Conductivity at 25°C	Cal/sec/cm2/cm/°C	.03-.04	.04-.06	.07-.08	-
Thermal Shock		Good	Good	Good	Good
Safe Use Temperature	°F °C	2550 1400	3000-3100 1650-1700	3275 1800	3275 1800

Coal Industry	Pasting lining plate: Inlet and Outlet pipe of medium pump, mixing pump, coal mud pump of coal plant, feed, Overflow, bottom-flow pipe of hydrocyclone, chute of sculpting sieve, medium Pipe, bottom-flow pipe of magnetic separator etc.
Power Industry	Welded lining plate: hopper, Medium speed coal mill, guard board, apron board, draught fan housing, chute, Distribution valve, coal bunker, ash &slag pipe. Pasting lining plate: Pulverized Coal preparation system, ash handling elbow, fuel exhauster etc.
Steel,Cement Industries	Welded lining Plate:Bunker,chute,dust removal system,charging system etc. Pasting lining Plate:Classifier,dust collection.
Chemical Industry	Transporting system, dust Removal system, processing equipment
Smelting Industry	Transporting system, batching System, roasting system, dust removal system.
Mine Industry	Materials conveying system.
Dock Industry	Materials conveying system:fixd Funnel of berth,Bucket Wheel Machine and belt conveyor transfer station,ship Unloader hopper.
