| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | ISO9001,CE |
| Weight: | 5480 kg |
| Dimension(L*W*H): | 1540*1200*2570 mm |
| Rated Power: | 5.5 KW |
| Voltage: | 220V / 380V |
| Model Number: | JH21-63T |
| Brand Name: | LOTTYES |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Nominal pressure: | 630 KN |
| Nominal stroke: | 4mm |
| Slide stroke: | 120mm |
| Mold set height: | 300mm |
| Mold height adjusting amount: | 80mm |
| Slide block central distance: | 300mm |
| Stand column distance: | 620mm |
| Motor power: | 5.5KW |
| Air pressure: | 0.55Mpa |
| Weight: | 5480kg |
Quick Details
Specifications
We are Free Member because we strive to put every penny on products, rather than the endless advertising. As is known to all, whatever you're given, you pay for. So, do please equally treat the Premium Member and Free Member.
Introduction:

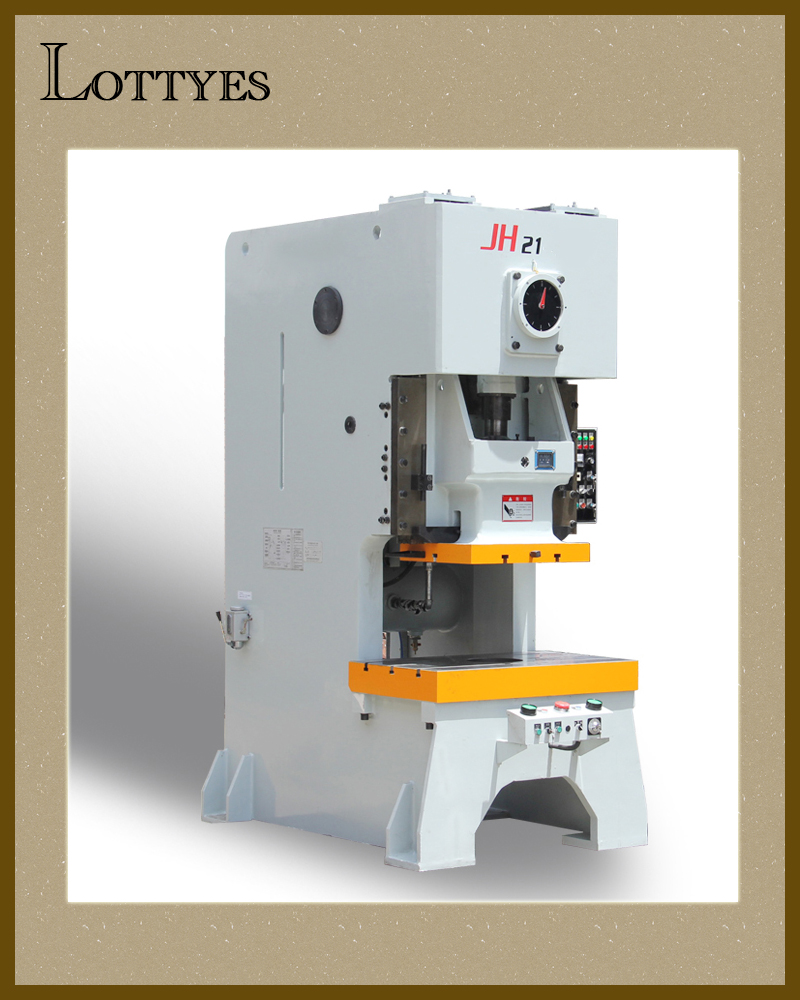

JH21 Series High Precision Presses is one of the new generation of plate process developed by Lottyes Machinery Co., Ltd. It is used for cutting, punching, blanking, bending and light stretching work.
Features:
1.Entire steel welded frame with high intensity
2.Dry pneumatic friction clutch and brake
3.Gear pairs: oil bath lubrication
4.Six-face rectangle lengthened guide, JH21-315B/400B: eight-face lengthen guide
5.Hydraulic overload protector
6.Automatic lubrication system
7.Lifting balance cylinder
5.Equipped with dual solenoid valve and electrical grease forced lubrication system
6.Equipped with dual solenoid valve, PLC control system, Button, AC contactor, air circuit breaker
7.Integrated interface (electrical cam included)
8.Options: air cushion, automatic feed shaft device, light curtain, automatic devices
Technical Parameter:
|
Item |
Units |
Model |
||
|
JH21-63 |
||||
|
Nominal pressure |
KN |
630 |
||
|
Nominal stroke |
mm |
4 |
||
|
Slide stroke |
mm |
120 |
||
|
Stroke number |
Constant speed |
min-1 |
70 |
|
|
Adjust speed(optional) |
min-1 |
60-80 |
||
|
Mold set height |
mm |
300 |
||
|
Mold height adjusting amount |
mm |
80 |
||
|
Slide block central distance |
mm |
300 |
||
|
Working table size |
Front and back |
mm |
580 |
|
|
Left and right |
mm |
900 |
||
|
Working table hole size |
Front and back |
mm |
350 |
|
|
Left and right |
mm |
380 |
||
|
Round |
mm |
φ365 |
||
|
Working table thickness |
mm |
110 |
||
|
Sliding block underside size |
Front and back |
mm |
400 |
|
|
Left and right |
mm |
480 |
||
|
Die shank hole size |
Diameter |
mm |
?50 |
|
|
Depth |
mm |
80 |
||
|
Stand column distance |
mm |
620 |
||
|
Motor power |
KW |
5.5 |
||
|
Air pressure |
Mpa |
0.55 |
||
|
Weight |
kg |
5480 |
||
