The following example is for you reference.

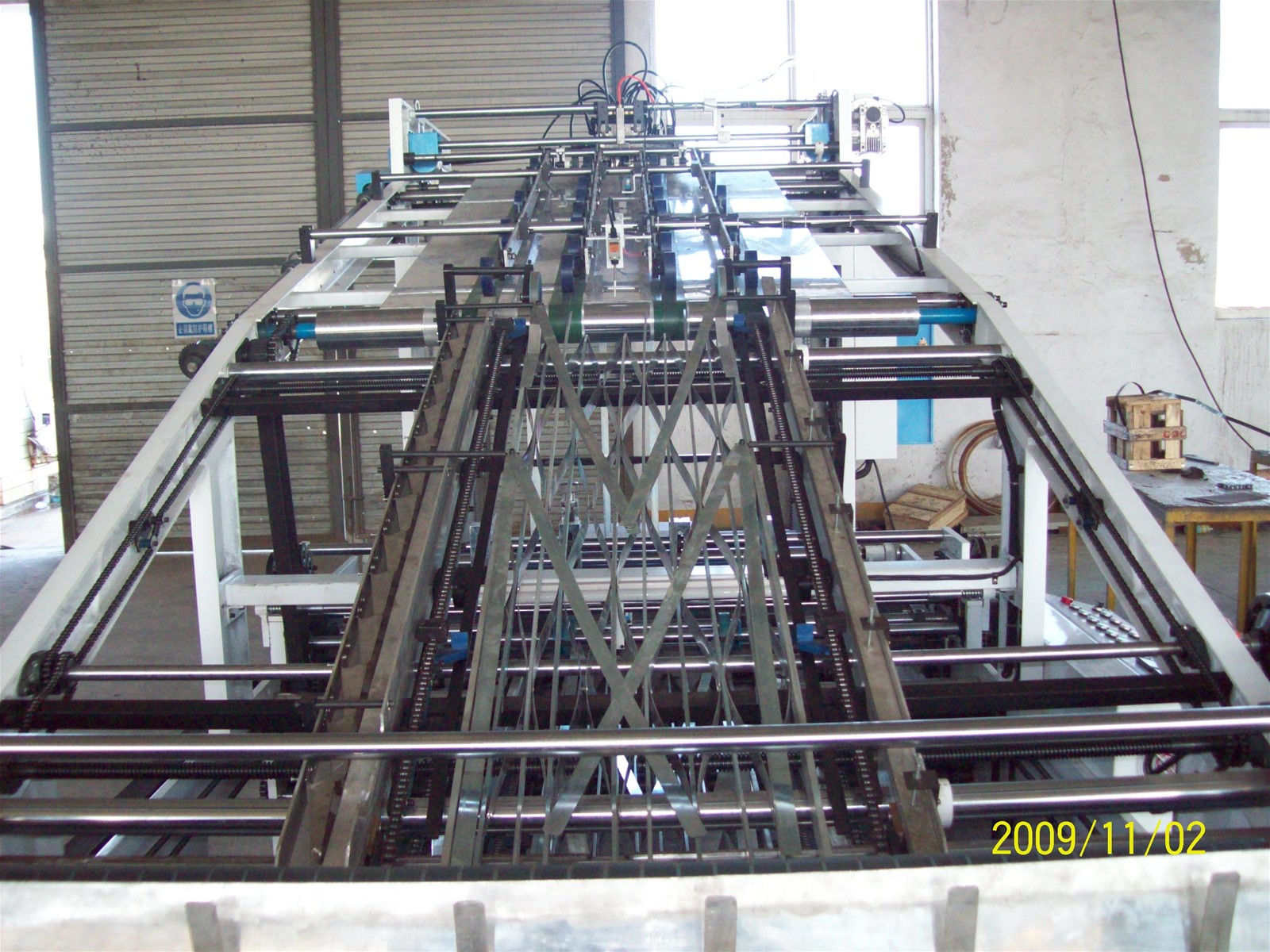

1.Brief Introduction:



 HIGH QUALITY MACHINE , low price machine

2.Techincal parameters:



      MAX PAPER SIZE                       1450*1100MM

                   MINI PAPER SIZE                       400*400MM

            MINI BASIS WEIGHT OF BOTTOM PAPER       300GSM

                   MAX BASIS WEIGHT                     800GSM

                   MAX THICKNESS                         10MM

            MINI BASIS WEIGHT OF FACE PAPER            180GSM

                   MAX BASIS WEIGHT                      800GSM

            PRECISION OF CARDBOARD TO CARDBOARD     ±1.2MM

            PRECISION OF CARDBOARD TO CORRUGATED    ±1.5MM

                   SPEED                                    100PIECES/MINUTE

                   TOTAL POWER                            14HP

                   TOTAL LENGTH                            12.5M

                   TOTAL WEIGHT                            5900KG



3.Performance features:

Speciae Features

Alls major key part imported from the genuine manufacturers with service assurance of the entire system.
Hi-speed production efficency.
Automated system allowing easier and faster adjustment.
Precise, reliable, low normal tear and wear, efforts and time saving, with low noise level.
Provide with make -up system to save paper stacking time and improve operational speed
