Nominal pressure: | 1600KN |
---|---|
Nominal stroke: | 12mm |
Slide stroke: | 150mm |
Stroke number: | 35min-1 |
Mold set height: | 400mm |
Mold height adjusting amount: | 100mm |
Slide block central distance: | 380mm |
Stand column distance: | 690mm |
Working table thickness: | 140mm |
Motor power: | 18.5KW |
Quick Details
Specifications
Description:

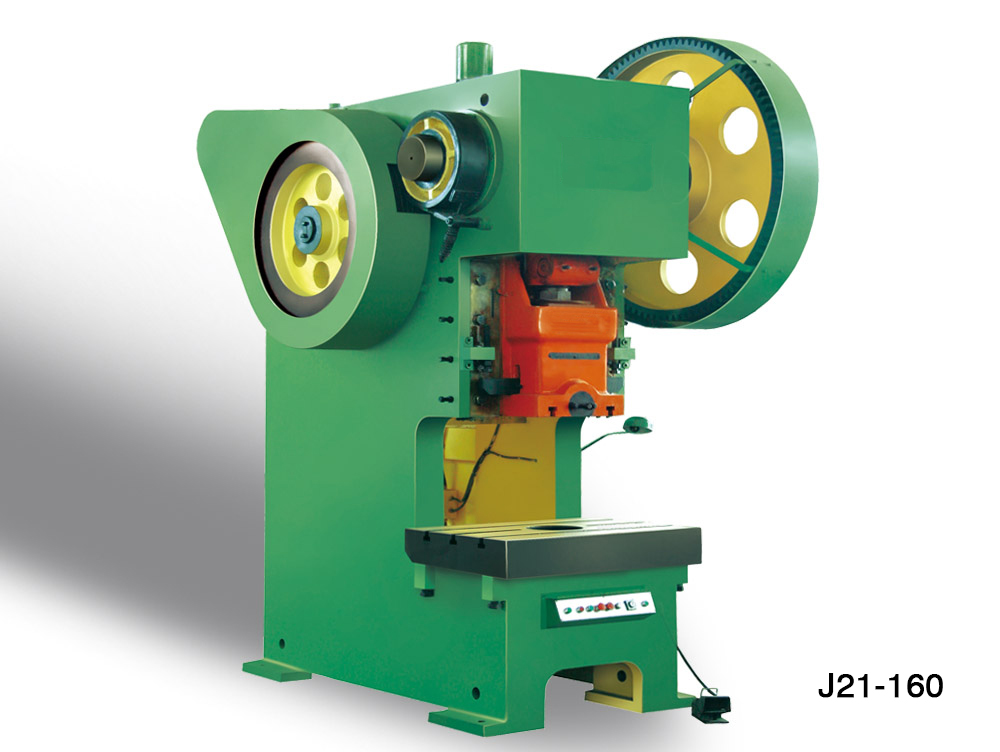

J21-160 punch press is a suitable open type crank press machine featuring a left and right open body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance, novel overall design gives the machine elegant appearance, the throat has certain depth. The compact structure makes its use convenient and operation safe.
Characteristics:
1. With foundry structure for better vibration resistance.
2. Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3. Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage.
4. Hands and foot switch operation buttons design, it's easy to activate continuous, single and adjustment practices.
5. Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.
Item
Units
Model
J21-160
Nominal pressure
KN
1600
Nominal stroke
mm
12
Slide stroke
mm
150
Stroke number
min-1
35
Mold set height
mm
400
Mold height adjusting amount
mm
100
Slide block central distance
mm
380
Working table size
Front and back
mm
740
Left and right
mm
1070
Working table hole size
Front and back
mm
/
Left and right
mm
/
Diameter
mm
/
Sliding block underside size
Front and back
mm
480
Left and right
mm
400
Die shank hole size
Diameter
mm
70
Depth
mm
90
Stand column distance
mm
690
Working table thickness
mm
140
Inclination Angle
/
/
Boundary dimension
Front and back
mm
2550
Left and right
mm
1820
Height
mm
3245
Motor power
KW
18.5
Weight
kg
13200
