| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 3000*1500*2600mm |
| Model Number: | VP-KB-12 |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 4.5KW |
| Voltage: | 220V |
| Driven Type: | Pneumatic |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Beverage,Chemical,Commodity,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

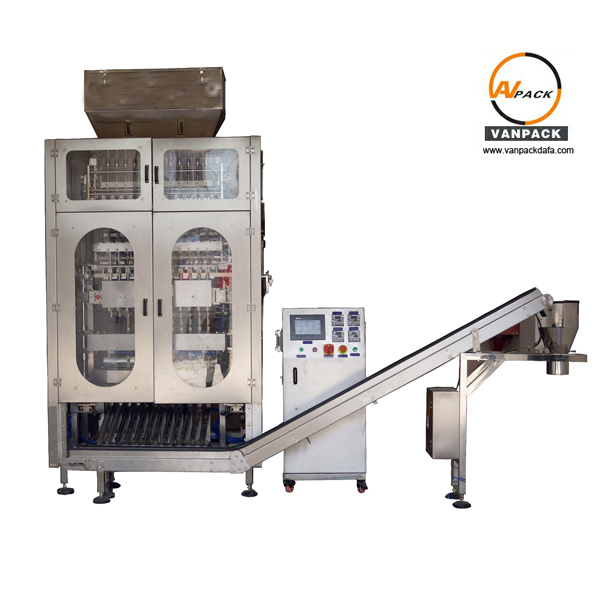

12 Lanes Stick Coffee Sugar Packing Machine
1.Brief Introduction:
This machine can pack small granule(the size is no more than 60meshes) like sugar,instant soup,instant tea, 3 in 1 coffee,chocolate instant,juice instant,salt,pepper and so on
2.Techincal parameters
Name
12 Lanes Stick Granule Packing Machine
Model
VP-KB-12
Objects
Small Granule like sugar and instant chocolate
Range of measure
1-30ml(or 1-15g);0.2-1g
Filling accuracy
Less than 2%
Sachet size range
Width:17-23mm Length:30-170mm
Sealing style
Stick Sachet
Sealing margin
Parallel lines
Cutting edge
flat
Film material
Capacity
300-500sticks/minute
Control style
PLC+ elec sensor system+ Full touch screen
Power
4.5KW
Power supply
AC 220V/50HZ + earth or AC380V/50HZ 3Phases
Gross Weight
800Kg
Pneumatic
0.24cbm/min, 0.6MPa
Machine Dimension
L1800mm W1500mm H3000mm
Package Dimension
L2000mm W1800mm H2100mm for packing device
L800mm W450mm H650mm for filling hopper
Accessory & tools and other documents (Free)
1) One set accessory and one set tools for each machine
2) English operation instruction one piece operation instruction
3) Products catalogs several pieces
BOPP/CPP,PET/AL/PE,FILTER PAPER, Laminated paper
3.Performance features:
This machine can pack small granule(the size is no more than 60meshes) like sugar,instant soup,instant tea, 3 in 1 coffee,chocolate instant,juice instant,salt,pepper and so on
