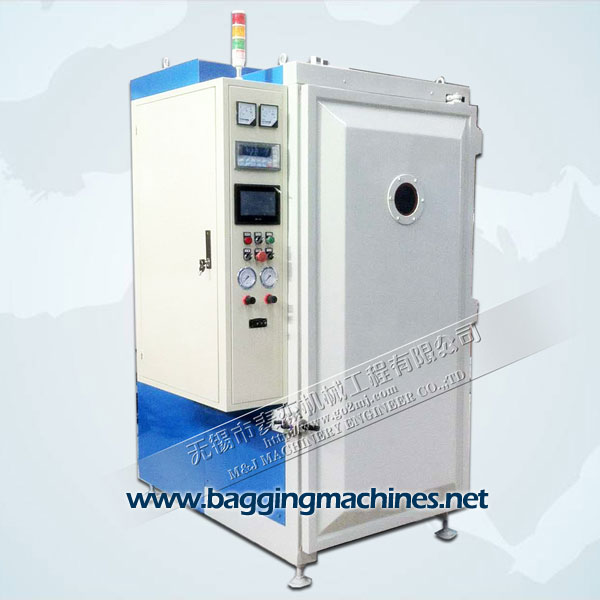

LSC-ZF1550 Vacuum Type Valve Bag Filling Machine

I. Application

LSC-ZF1550 model Superfine Powder Vacuum Packing Machine is a closed system consists of the feeding mechanism, filtration transport unit, sealed conversion parts and other components. It consists of , vacuum chamber, and bag  filler

Mainly application: Feeding and filling the very light, extremely fine nano powders (such as fluffy carbon black, fumed silica, precipitated silica and alumina, and fine graphite powder) into the valve bag. It's widely used powder production plant or powder re-packing factory and others.

II. Working principle

Adopts the pressure difference between the feeding mechanism and the vacuum chamber, under an airtight and vacuum condition, it would feed extremely light or extremely fine powders into the bag from raw materials warehouse. It completely solves the extremely light and fine powder's packaging problem of difficult packaging, bulky, and serious pollution problem.

This vacuum packing machine's vacuum packaging equipment and high flow (low flow) of powder flow (commonly known as: fast feeding and slow feeding) are changing during the packaging process, via the signal communications computing, PLC system will automatic control the proportional valve for the corresponding continuous adjustment so as to guarantee the uniform rate of filling material into the valve bags, thus to achieve the high filling packing accuracy.



Operating system: human design, PLC program combined control, designed according to the physical properties of materials, packaging specifications and packaging speed. Continuously feedback through signal positive and negative communication. With PLC, it's finishing the automatic control of the production process, the negative pressure level and the feeding speed. Ensure to compliance with the customer's different packaging requirements due to raw materials different density and different speeds, and thus to meet customers specific demands of weighing packaging solution.



Production process: full automatic operation, with features of fast packaging speed, high accuracy and no dust pollution.

III. Technical data:

Model	LCS-ZF1550
Packing range	1～50Kg/bag
Accuracy	±0.2～0.5％
Packing speed	40～70bags/hour(10Kg/bag) According to the materials features, vacuum pressure, materials volume and density
Power supply	380V/50Hz/7.5Kw
Air source	P≥0.6MPa,Q≥0.1M3/min
Self weight	1250Kg
Size	1800(L)×1100(W)×2450(H)mm
