| Brand Name: | yacer |
|---|---|
| Wavelength: | 1 |
| Data Rate: | 1 |
| warranty: | 1 |
| Connector: | 1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Technical Specifications

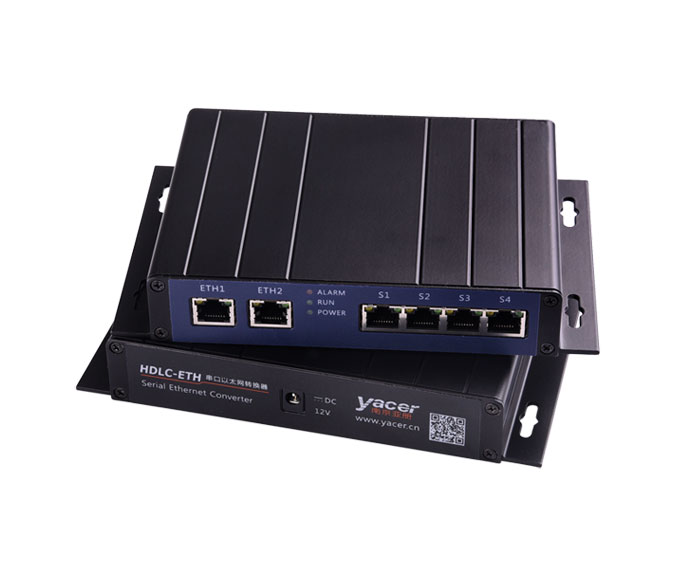

- Dual 10/100MEthernet interface, with support for the Ethernet switching, VLAN and dual-IP Functions
- Dual or quad RS-232 synchronous & asynchronous serial ports
- Full-duplex, with the baud rate up to 250 Kbps
- Support for the synchronous HDLC protocol, asynchronous UART
- 15KV ESD protection
- +12VPower supply
- Industrial wide temperature
Applications
- Secondary Surveillance Radar (SSR), ADS-B data communication
- Air Traffic Management (ATM)
- Air Traffic Control (ATC)
- Synchronous & Asynchronous serial communication and conversion
- Embedded application
Technical Specifications
SerialPort | |
Quantity |
2, 4 x RJ-45 |
Working Mode |
Synchronous HDLC, Asynchronous UART |
Interface Type |
RS-232 full-duplex |
Encoding Format |
NRZ |
Baud rate |
250 Kbps |
HDLCFrame length |
1470Bytes |
Synchronous Clock |
Normal, slave and master clock mode |
ESDProtection |
15 KV |
Ethernet Interface | |
Quantity |
2 x RJ-45 |
Function |
Ethernet Switching support VLAN and Dual-IP support |
Rate |
10/100 Mbps, auto MDI/MDI-X |
Network Protocol |
TCP/IP |
Programming Interface |
UDP Server, UDP Client Unicast/Multicast/Broadcast |
Configuration Management | |
Software Tool |
Yacer-DMS Configuration management software |
Management Interface |
Ethernet Interface |
Power Requirements | |
Input voltage |
+12V |
Power Consumption |
< 3W |
Power Interface |
DC-5.5-2.5mminterface |
Mechanical Characteristics | |
Dimensions |
HxWxD:32 MmX193.55 mmx124 mm |
Weight |
450g |
Enclosure |
Aluminum Alloy fully-enclosed enclosure, IP30 |
Operating Environment | |
Operating temperature |
-40 ~ +85 |
Storage Temperature |
-40 ~ +85 |
Operating Humidity |
595%(non condensing) |
Information
Model |
RS-232SerialPort |
Ethernet Interface |
HDLC-ETH-200 |
2 x Synchronous/asynchronous serial ports |
2 x 10/100M |
HDLC-ETH-400 |
2 x Synchronous/asynchronous serial ports +2 x synchronous serial ports |
2 x 10/100M |
