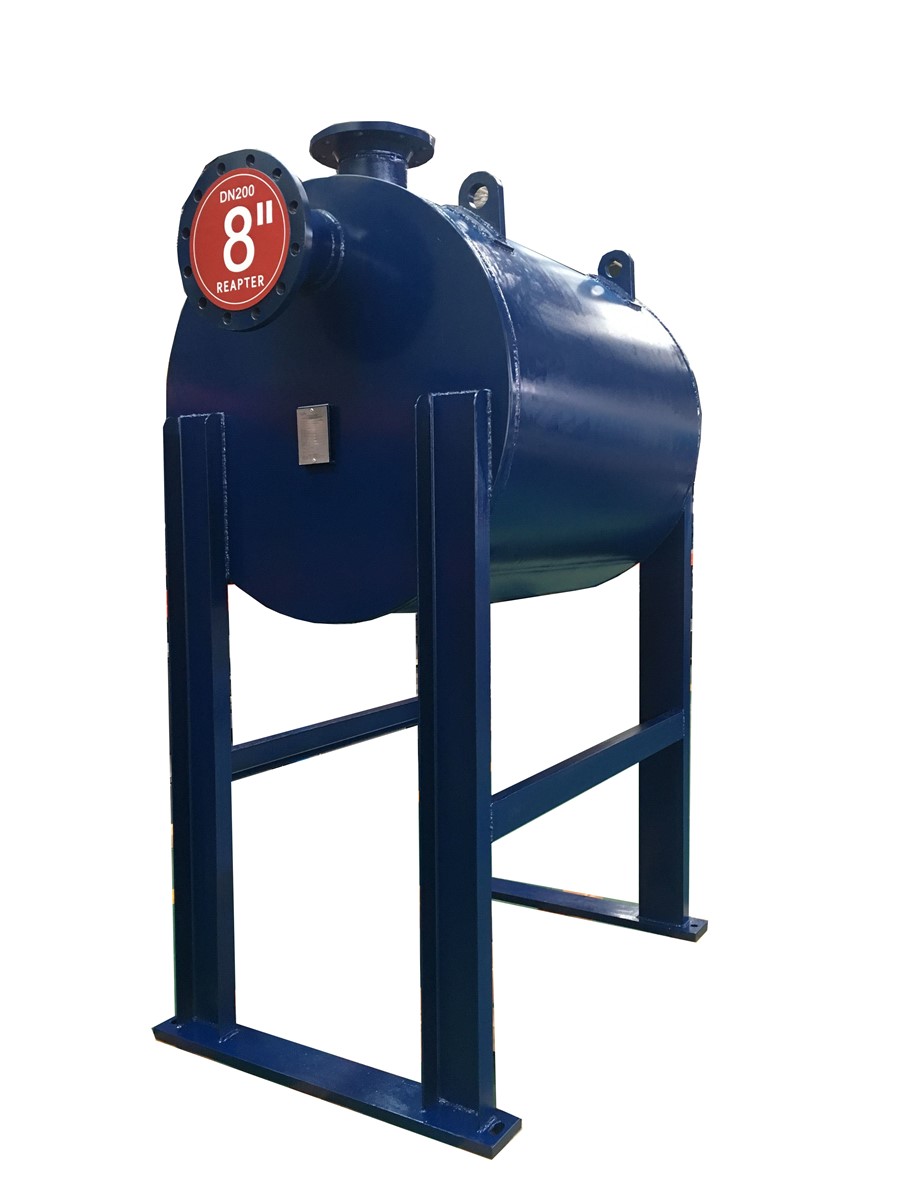

Product name:Plate shell heat exchanger
Product features:No gasket, non brazing, solid structure, seal structure design unique, to prevent the media bypass, high heat efficiency and energy saving, compact structure, light weight, flexible structure, mature and reliable technology, low fouling, easy maintenance, small space requirement, at the end of the small temperature difference
Detailed product description
Plate type heat exchanger is to plate tube as heat exchangers, also called sheet heat exchanger. It is mainly composed of two parts of the tube bundle and the shell. the contact points of the cold pressing formed pair of panels are tightly welded together to form a plate tube containing a plurality of flat flow channels. Many boards with different widths are arranged in a certain order. In order to keep the distance between the plate and the tube, the two ends of the adjacent plate pipe are inserted into the metal strip and welded together with the plate pipe. At both ends of the plate tube, the tube sheet is formed, so that a lot of the board are firmly connected together to form a tube bundle. The end face of the plate bundle is presented with a plurality of flat flow passage plate bundles which are assembled in the shell body, and the sliding seal between the shell body and the shell is eliminated by the sliding seal. Equipment section is generally circular, there are rectangular, hexagonal, etc..
Specifications:
Specification parameter: design temperature: -195-600
Design pressure: vacuum -150.0bar
Single plate area: 0.022-2.0 square meters
Sheet thickness and working pressure
