Type: | Multi-Function Packaging Machine |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | CE |
Dimension(L*W*H): | 700*800*2300mm |
Model Number: | VP-NT |
Brand Name: | Van Pack |
Place of Origin: | China (Mainland) |
Power: | 1.5KW |
Voltage: | 220V |
Driven Type: | Pneumatic |
Automatic Grade: | Automatic |
Packaging Material: | Paper,Plastic |
Packaging Type: | Bags,Film,Foil,Pouch |
Application: | Chemical,Commodity,Food,Medical |
Function: | Filling,Sealing,Slitting,Wrapping |
Condition: | New |
Quick Details
Specifications

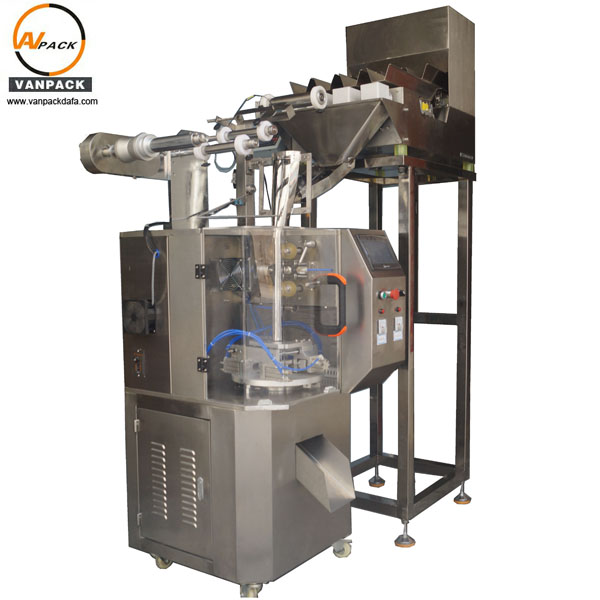

Automatic Pyramid Bag Tea Packing Machine
1.Brief Introduction:

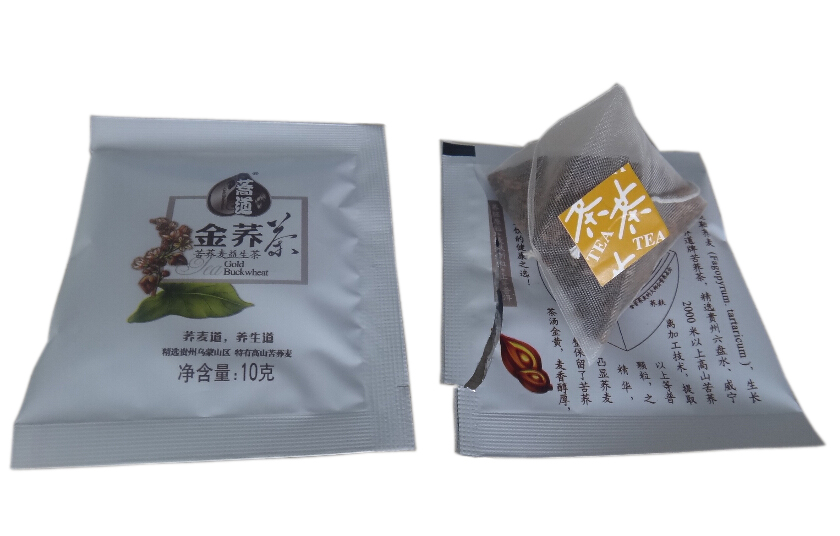

The machine can pack flower tea,green tea,black tea,broken tea,rose and so on.
2.Techincal parameters:
Speed
30-50bags/minute
Weight range
0.5g-10g
Weighting mold
4 Head Weigher Filler
Tea request
Tea length≤3cm,assumes the platy, otherwise the weighing precision will drop.
Bag paper request
Pure Nylon or non-woven fabric
Roll quantity
1
Rolled paper core inside diameter
Φ76mm
Rolled outer diameter
≤Φ400mm
Seal cutting
ultrasound
Seal cutting equipment
2 sets
Standard electric appliance configure
Pneumatic element, button, exchange contact device
Source pressure
≥0.6Mpa
Motor power
Approximately 1.6kw AC220V/50HZ or AC110V/60HZ
Operate person
1
Machine size
L700*W800*H2300(mm)
Machine weight
600kg
3.Performance features:
1. Ultrasound sealing, make the tea bag beautiful.
2. The capacity can reach 4.5kg/hour as 2grams/bag.108kg/day as 24 hours
3. The material with tag can make the tea bag with tag.
4. Slip volume measurement can change the infilling easily.
5. According to customer's tea to choose electronic scale or cup filler.
6. Pneumatic Components adopt Japan PLC, Electric components adopt Omron Brand
7. PLC controller, color full touch-screen system, both are international famous brand, make the performance more stable, easy to operate, more humanity.
