| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 550*500*1700mm |
| Model Number: | VP-50KZ |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 1.5KW |
| Voltage: | 220V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Beverage,Chemical,Commodity,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

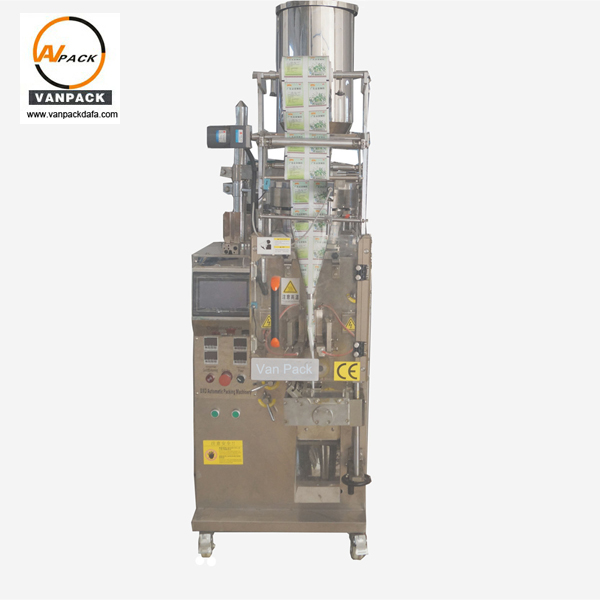

Automatic Seed Packing Machine
1.Brief Introduction:
Be able to weight, make bag, fill, seal, cut off, print the date and lot number automatically. Suitable for packing seed, tea ,salt, pills, monosodium glutamate, white sugar, coffee(3 in 1 coffee or coffee powder), soup ingredients & pepper etc.
2.Techincal parameters:
Machine speed
70-85bags/minute
bag size
(L)30-160 mm (W) 25-100mm one width one bag former
Film width
Width *2
Film Material
Composite film/aluminum foil/paper-PE film/laminated paper
Bag type
4-side sealing sachet or 3-side sealing sachet
Notch
zipper notch or flat notch
Voltage
AC220V Single-phase 60HZ/50HZ
Total Power
1.2KW
Measuring range
0.2g;0.3g;0.4g;0.5-1g;1-2g;2-4g;4-8g;5-10g;10-20g;20-40g;25-50g
G.W
230KG
Control system
PLC control system
touch screen
English
Measuring mode
volume cup filler(one machine is only with one set of volume cup)
Machine material
Stainless Steel 304(SS304)
Model
VP-50KZ
3.Performance features:
Be able to weight, make bag, fill, seal, cut off, print the date and lot number automatically. Suitable for packing seed, tea ,salt, pills, monosodium glutamate, white sugar, coffee(3 in 1 coffee or coffee powder), soup ingredients & pepper etc.
