| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | DW-330V |
| Brand Name: | DAWEI |
| Type: | Portable Ultrasonic Diagnostic Devices |
| Certificate:: | CE ISO |
| Warranty:: | 24 Months |
| display mode:: | B,2B,4B,M,B/M |
| body marks:: | 30 |
| ports:: | vedio output SVGA PAL-D |
| dispaly monitor:: | 10CRT |
| cine loop:: | 256 frames |
| probe interface:: | 2 |
| TGC:: | 8 |
| Name:: | Portable veterinary ultrasound |
Quick Details
Specifications

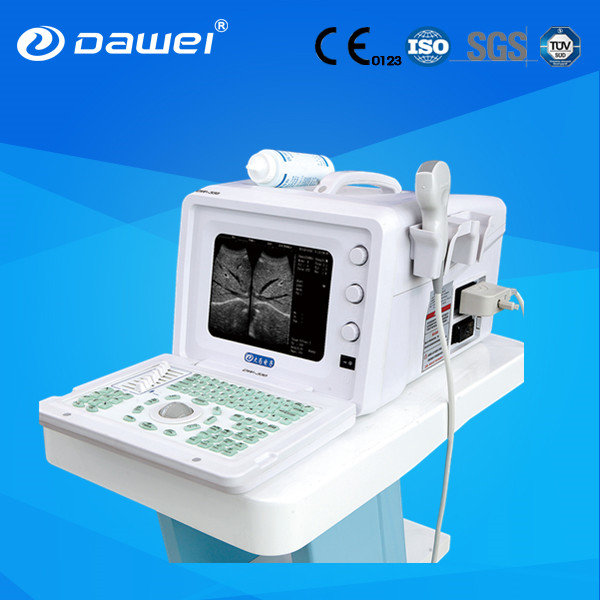

Portable veterinary ultrasound with B/W veterinary ultrasound system
1.portable ultrasound
2.10" CRT monitor
3.double probe interfaces
4.backlit silicon gel keyboard
5.SGS, ISO13485,CE
Supported by numerous digital technologies, DAWEI introduces the DW-330V as an easy-to-use, portable B/W ultrasound system for veterinary applications.The DW-330V is lightweight (8kg in weight with optional mobile trolley) but versatile, which creates a comfortable working environment for veterinarians. The great B/W ultrasound image, quality abundant veterinary software packages and professional vet transducers make DW-330V a welcomed vet ultrasound.
As an ultra-compact system, the DW-330V combines the essential features of easy-to-use and high image quality, not only to make the ultrasound diagnosis more reliable and efficient but also to maximize the veterinarians's confidence and comfort during diagnosis.
Five Variable Frequencies
This technology minimizes the inconvenience of frequently changing probes by working with broad band probes.
Specialized Veterinary Design
Anti-dust, anti-glare, three-meter transducer cable
Specialized Veterinary Transducer

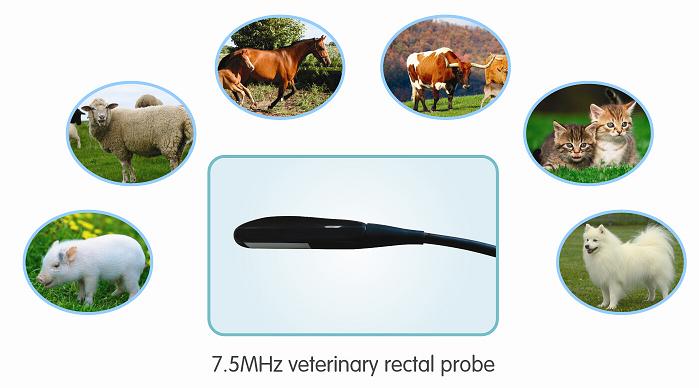

Anti-corrosion cable surface, three meters transducer cable length, 7.5MHz Linear probe and 6.5Mhz micro-convex transducer
Portable veterinary ultrasound with B/W veterinary ultrasound system
DW330 Full-digital Portable Ultrasound Scanner
First-class digital imaging technology, more clearer image
1. Professional embedded ultrasonic platform
2. High-precision full-digital imaging technology
3. high density probe,broadband and frequency conversion technology,Increase the image quality greatly.
4. Backlight silica gel keyboard, Photoelectricity track control
5. intellectualized TGC gain control of the whole paragraph8, precisely adjustment image density
6. Wide applications: Abdominal, OB/GYN, Urology, Cardiology, Small parts examination etc.
7. USB port: storable and readable
Luxuriant image processing
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Monitor: 10 inch high resolution CRT
Scanning mode: convex / linear / micro-convex
Probe interface: 2
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Body marks: 30
Pseudo color: 7
Magnification: ×0.8, ×0.85, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week,FW,AFI, EDD,maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz
Standard Configuration
10 inch high resolution CRT
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
USB port
Options
6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz)
7.5MHz High frequency linear probe(6.5MHz-8.5MHz)
Trolley
