| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 month |
| Certification: | CE ISO |
| Weight: | 1060kg |
| Overall Dimensions: | 2270*1100*1380mm |
| Table Size: | 2100*930mm |
| Max. Lifting Height: | 8m |
| Min. Lifting Height: | 1.4m |
| Rated Loading Capacity: | 300KG |
| Power: | 2.2kw |
| Lift Drive / Actuation: | Hydraulic |
| Model Number: | SPM |
| Brand Name: | Spower |
| Place of Origin: | China (Mainland) |
| Product name: | scissor lift |
| Voltage: | 110v 220v 240v 380v Optional |
| Guardrail height: | 1100mm |
| Material: | High Strength Manganese Steel |
| Wind resistance: | force 5 |
| Motor power supply: | AC/DC/Diesel |
| Color: | Choice |
| Lifting speed: | 4-6m/min |
| Movement speed: | 5 Km/h |
| Application: | scissor lift |
Quick Details
Specifications

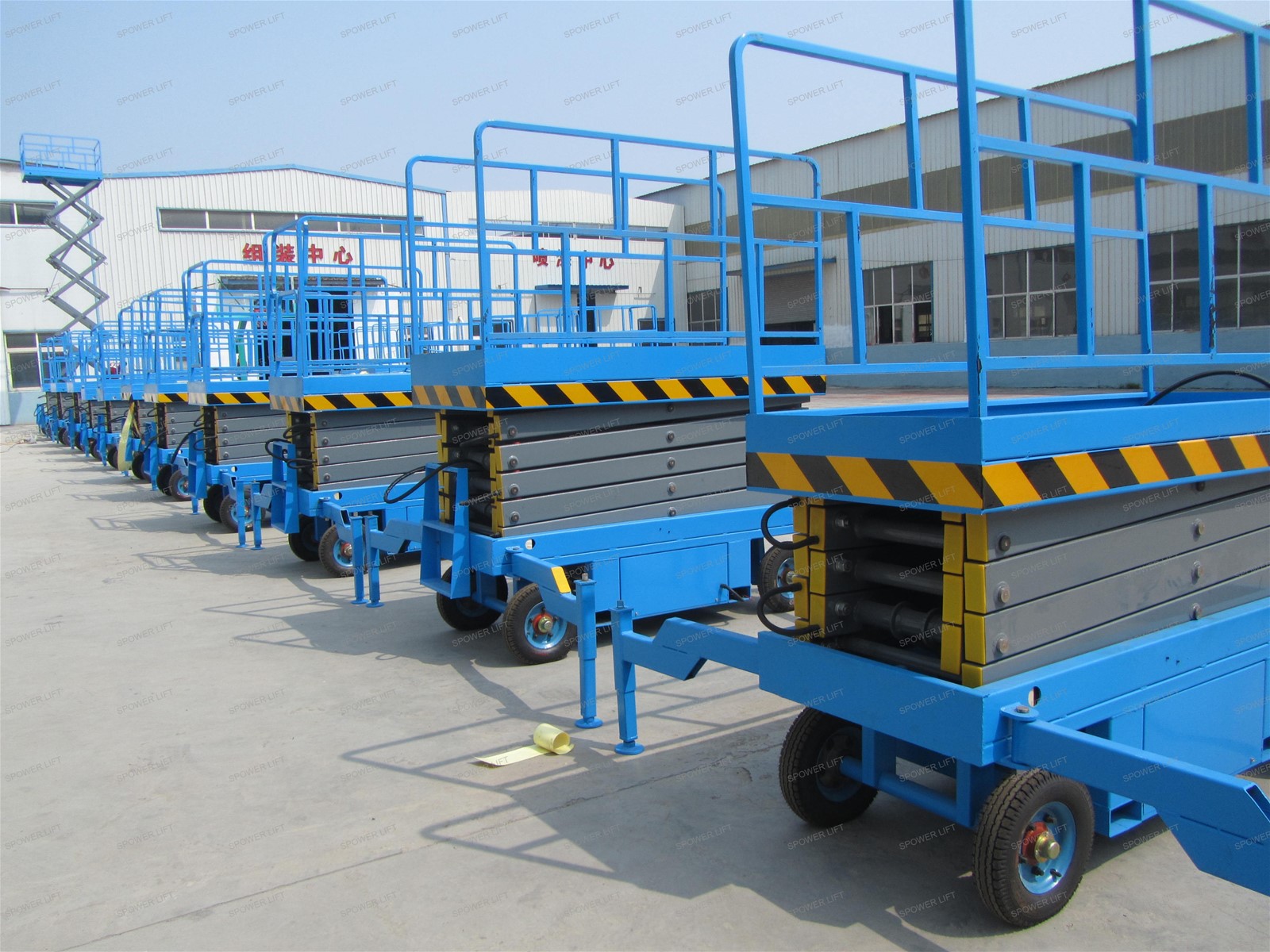

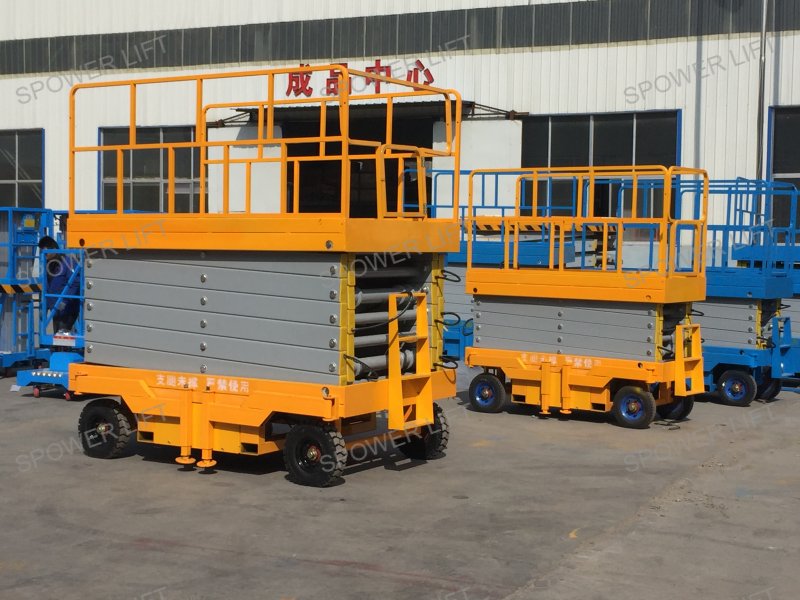

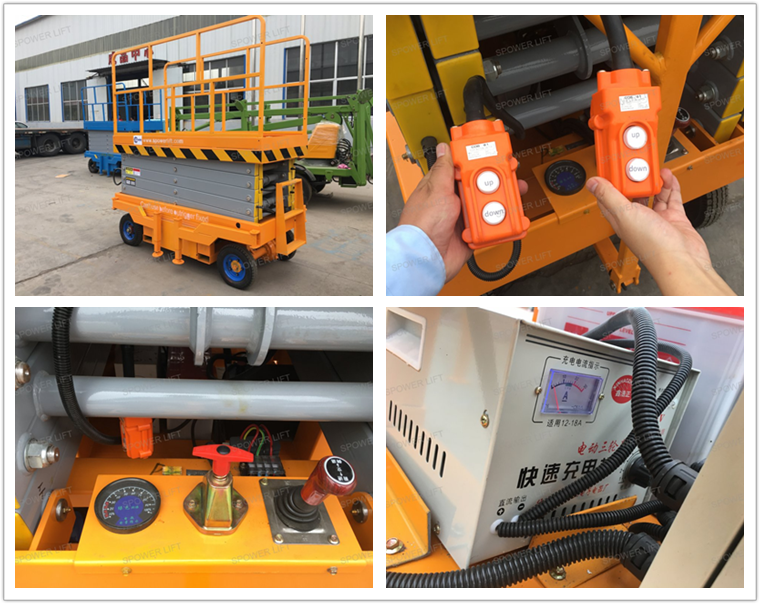

4-18m man aerial lifting platform mobile hydraulic scissor lift
Application:
Our Mobile scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. the scissor lift can be also equipped with battery. with the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Main Models:
Model
Capacity
(kg)Table size
(mm)Max Height
(mm)Power
(kw)Total Dimension
(mm)Net Weight
(kg)
SPM0.3-4
300/500
2100*830
4000
1.5
2270*1000*1140
810 SPM0.3-6
300/500
2100*830
6000
1.5
2270*1000*1270
900 SPM0.3-7
300/500
2100*830
7000
2.2
2270*1000*1270
980 SPM0.3-8
300/500/1000
2100*930
8000
2.2
2270*1100*1400
1060 SPM0.3-9
300/500
2100*930
9000
2.2
2270*1100*1500
1150 SPM0.3-10
300/500/1000
2100*1230
1000
2.2
2270*1400*1550
1360 SPM0.3-11
300/500
2100*1230
1100
2.2
2270*1400*1670
1450 SPM0.3-12
300/500/1000
2550*1530
12000
3
2770*1750*1860
2260 SPM0.3-14
300/500/1000
2550*1530
14000
3
3060*1750*1800
2400 SPM0.3-16
300/500
2800*1600
16000
3
3060*1900*2100
3500 SPM0.3-18
300/500
3060*1600
18000
3
3350*1910*2100
3900
Feature:
1. High working capacity, easily pushed around, most spacious platforms for several people to work.
2. High strength steel structures smoothly lift up and drop down, easily operated, few faults.
3. Moving method: 4 wheel and 2wheel types are optional, it can be pneumatic rubber tires, solid rubber tires or polyurethane tires.
4. Power sources: local power available at the working sites(110V,220V,380V,415V),diesel engines and generators
5. Lifting height: 4m,6m,8m,10m,12m,14m,16m,18m hydraulic lift.
Safety protection:
1.Sensitive overload protection device and locking device for falling down
2.Explosion –proof valve: prevent the hydro oil pipe from cracking.
3.Overflow valve: it will prevent the pressure too high when the machine rises up.
4.Emergency decline valve: it can let the machine falls down when power is off.
5.Safety lock: the lift machine can't work if your operation is wrong.
after service:
1. Installation drawing and manual will be provided after the order.
2. All the scissor lift will be produced strictly according to ISO9001 quality management system.
3. Spare parts will be offered for free during the warranty period.
4. Every scissor lift must be tested by running one hour before delivery,100% qualified.
5. the total machine guarantee is 12 moths.
FAQ:
1. Delivery Time
the product will be finished within 15 days and with best quality.
2. Payment Terms
T/T, L/C, Western Union, escrow, paypal, other kinds, pls contact with us.
3. MOQ
MOQ is 1 set.
4. Package
Usually, we will pack our product by plywood case or loaded into container.
