| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1500*1300*2500mm |
| Model Number: | VP-1000KB |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 5.0KW |
| Voltage: | 220V |
| Driven Type: | Mechanical |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Chemical,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

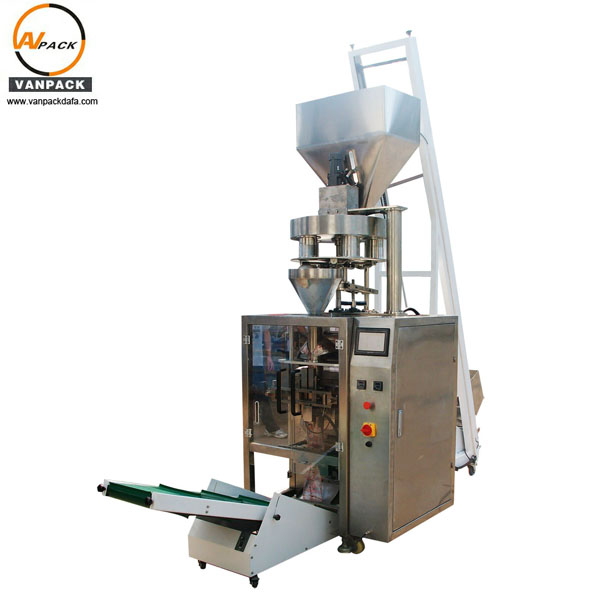

Automatic Salt Packing Machine
1.Brief Introduction:
To be able to pack small granule like sugar,salt,pepper,bean,pill,coffee bean,seed and any other granule which their length is no more than 1.5cm
2.Techincal parameters:
Model
VP-420B
VP-520B
VP-620B
VP-720B
Bag Size Range
(L)100-350mm
(W)80-200mm
(L)100-400mm
(W)80-250mm
(L)100-450mm
(W)80-300mm
(L)100-510mm
(W)80-350mm
Max. Film Width
420mm
520mm
620mm
720mm
Capacity
30-50bags/minute
20-45bags/minute
10-35bags/minute
5-35bags/minute
Bag type
Pillow Bag Or Gusset Pillow Bag
Gas volume
0.4cbm/minute 0.6Mpa
Voltage
AC220V/50-60HZ Single Phase or AC380V/50HZ 3 Phases
Total Power
2.2KW
2.8KW
3.5KW
4.0KW
Weight to Pack
500-1000ml;1000-2000ml
Control system
PLC control system
Packing material
Laminated film ,laminated paper, Pure Aluminum film
Measuring Way
Volume Cup Filler(It depends on one piece granule's size)
Accuracy
More or Less 1-2%
Machine Material
Stainless Steel 304
Machine Size
1500*1300*2500mm
Function:
Be able to load granule to the hopper of the machine, weight, fill, make the bag, print manufacture date and expiry date and batch number, seal, cut off, automatically
3.Performance features:
To be able to pack small granule like sugar,salt,pepper,bean,pill,coffee bean,seed and any other granule which their length is no more than 1.5cm
