| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1500*1000*2500mm |
| Model Number: | VP-1000YB |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 1.5KW |
| Voltage: | 220V |
| Driven Type: | Pneumatic |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Beverage,Chemical,Commodity,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

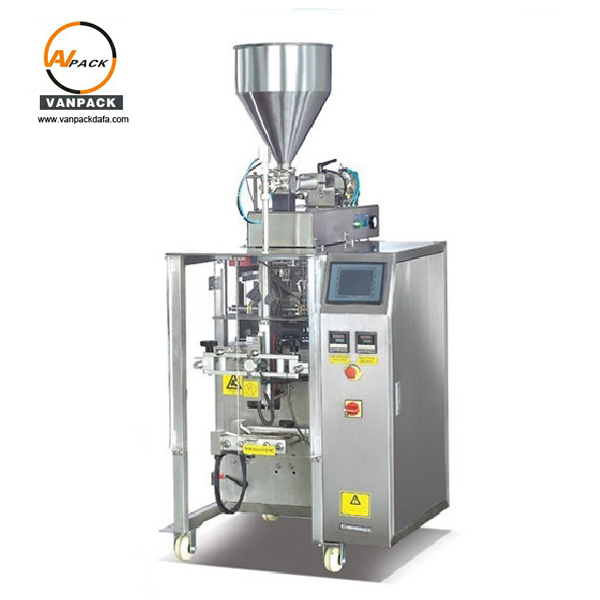

Automatic Oil Packing Machine
1.Brief Introduction:

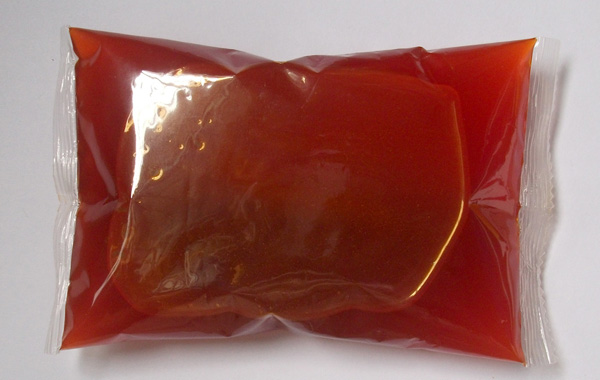

It is widely used in food, medicine and chemical industries.etc.The products that specially to be packed ,such as fruit juice with fruit granule,wine,milk,soymilk,ice pop,water and so on
2.Techincal parameters:
Model
VP-1000YB
Machine speed
15-35bags/minute(It depends on the weight to pack and bag size)
Bag length
Length:150- 480mm
Film Width
420mm
Gas consumption
0.6- 0.8 Mpa
Bag type
Back Sealing Bag (pillow) and 45 degree angle pillow bag
Voltage
AC380V/50HZ 3 phases
Total Power
4.5 KW
Measuring range
100g-1000g
weight
680KG
Control system
PLC Control System
Packing material
Laminated or composite Film that can be heat sealed, like BOPP/CPP; PET/AL/PE/; PET/PA/PE ; Nylon/ PET/PE.etc.
Machine Dimension
1500*1000*2500mm
3.Performance features:
It is widely used in food, medicine and chemical industries.etc.The products that specially to be packed ,such as fruit juice with fruit granule,wine,milk,soymilk,ice pop,water and so on
