| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1000 * 1800*1900mm |
| Model Number: | VP-KT |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 1.2KW |
| Voltage: | 220V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Chemical,Commodity,Food,Machinery & Hardware,Medical |
| Function: | Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

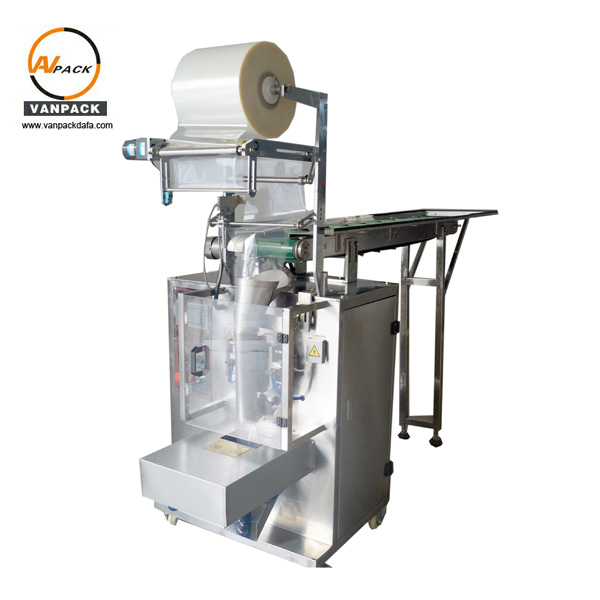

Automatic Trailer(Bucket) Packing Machine
1.Brief Introduction:
It is suitable for irregular article packing that needs putting article by hand, such as Spoon, cooling oil, jasmine scented green tea .pepper, battery, etc. automatically finished Convey to blanking , making bag, measuring, sealing, cutting, printing(with printer).Irregular products need put article work done by hand and also add automatically blanking device(granular/fluid/powder ),can two several kinds of articles fall into one bag at the same time to realize mixed package .
2.Techincal parameters:
Name
Automatic Packing Machine Combined with Trailer
Model
VP-KT
Packing Article
Irregular article, sheet, screw .etc irregular or piece products.
Making Bag Size
Width:30- 100 mm Length: 50-160 mm
Packing Speed
10- 60 Bags / min
Control System
Imported PLC Control System
Language
English and Chinese
Power
1.2 KW
Power supply
AC220V 50HZ single phase ; AC380V 50Hz ,3 phase
Weight
N.W:300kg G.W:350kg
Roll Packing Film
Laminated or composite film that can be heat sealed, like PET/AL/PE; PET/ PA/PE; PET/PE .etc…..
Material
Stainless Steel 304
Machine's Size
1000 * 1800*1900mm
3.Performance features:
It is suitable for irregular article packing that needs putting article by hand, such as Spoon, cooling oil, jasmine scented green tea .pepper, battery, etc. automatically finished Convey to blanking , making bag, measuring, sealing, cutting, printing(with printer).Irregular products need put article work done by hand and also add automatically blanking device(granular/fluid/powder ),can two several kinds of articles fall into one bag at the same time to realize mixed package .
