| Standard: | DIN |
|---|---|
| Brand Name: | Rbo |
| Material: | Stainless Steel&Carbon Steel |
| Certificate: | ISO9001 |
| Size: | M3-M20 |
| Model Number: | M3-M20 |
| Place of Origin: | China (Mainland) |
| Material: | Spring Steel&Stainless Steel |
Quick Details
Specifications
Basic information
| SIZE | Limit | Limit | Limit | Limit | Limit | Limit | |||||||
| d1 | dev | d2 | dev | h | dev | m | dev | n | dev | s | dev | Weight | |
| 3 | 3.1 | ﹢0.3 | 6.2 | ﹣0.4 | 0.95 | ﹣0.15 | 0.8 | ±0.1 | 0.2 | ﹢0.2 | 0.6 | ±0.03 | 0.083 |
| 3.5 | 3.6 | 7.2 | 1.1 | 1 | 0.2 | 0.7 | 0.138 | ||||||
| 4 | 4.1 | 8.2 | 1.15 | 1.2 | 0.2 | 0.8 | 0.209 | ||||||
| 5 | 5.4 | ﹢0.3 | 10.2 | ﹣0.4 | 1.5 | ﹣0.25 | 2 | 0.4 | ﹢0.3 ﹣0.1 |
1 | ±0.04 | 0.426 | |
| 6 | 6.1 | 12.2 | 1.8 | ﹣0.3 | 2 | ﹢0.2 | 0.4 | 1.2 | 0.76 | ||||
| 8 | 8.2 | 16.2 | 2.4 | 2 | 0.4 | 1.4 | 1.55 | ||||||
| 10 | 10.2 | ﹢0.4 | 20.25 | ﹣0.5 | 2.6 | ﹣0.45 | 2 | 0.4 | 1.6 | 2.78 | |||
| 12 | 12.4 | 24.25 | 2.6 | 2 | 0.4 | 1.6 | 3.97 | ||||||
| 16 | 16.4 | 32.3 | ﹣0.6 | 3.96 | 4.5 | 0.4 | 2.5 | ±0.08 | 11.2 | ||||
| 20 | 20.5 | ﹢0.5 | 40.3 | 4.65 | 4.5 | 0.4 | ﹢0.4 | 3 | 20.8 | ||||
| Acier doux |
Acier 8.8 |
Acier 10.9 |
Acier 12.9 |
Zingue Blanc |
Zingue Bichro |
Inox A2 |
Inox A4 |
Nyion | Laiton | Cuivre | Alu | Acier Htere's | |
| Materials | Our Advice for You below: |
| Spring Steel: 65Mn | ≤200°C, under Normal Condition |
| Stainless Steel: SS304, SS316 | ≤300°C, under Corrosive Condition |
| Customized as Per Clients' Requirements |

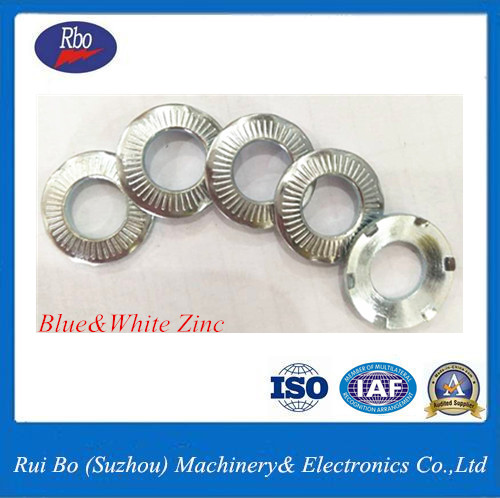

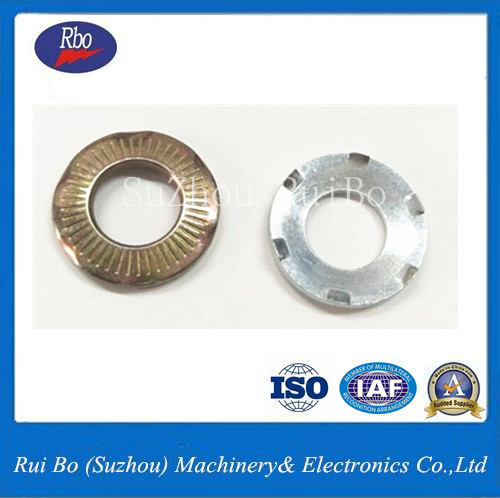

Plated Zinc, Dacromet , Geomet, Black Finishing
Model NO.: SN70093
Material:Stainless Steel & Carbon steel
Size: M3-M20
Shipping Method: by Sea ,by Air
Payment Term:T/T,Westunion,L/C
Certificates: ISO 9001
Specification: M3- M20
Spring Washer Type: Standard
MOQ: 1000 PCS
Delivery Time: 3-20 Working Days
OEM&ODM: Supported
Loading Port:Shanghai Port
Production Ability: 5000000 PCS / Month
Transport Package: 25*16*25cm Carton Box, Then Polywood Box Packed
Origin:China
