| Type: | Home Amplifier |
|---|---|
| Brand Name: | Schrodinger Audio, Customer logo |
| Frequency Response: | 20HZ ~ 20KHZ |
| Power Supply: | 110/220V |
| Warranty: | 1year |
| Place of Origin: | China (Mainland) |
| Model Number: | CFA155K-6B (Vacuum Tube Amp) |
Quick Details
Specifications

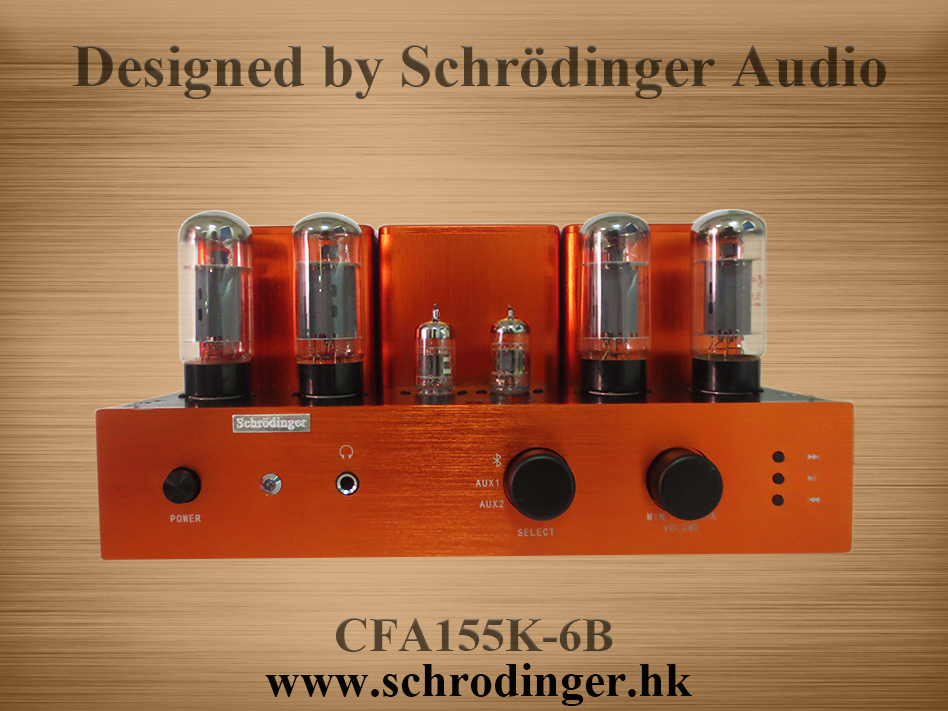

CFA155K-6B is the Powerful Vacuum Tube Push Pull Amplifier
Suitable for users who want to find more powerful audio amplifier or want to upgrade the audio system.
- Tubes: 6L6x4,12AX7Bx2
- Output Power: 12W + 12W (8Ω) RMS Output
- Frequency Response: 20Hz ~ 20kHz (-1.5dB)
- THD: <1% (1kHz)
- Signal-to-Noise Ratio: 80dB
- Input Sensitivity: 0.775V (0dB)
- Input Impedance: 100KΩ
- Load Impedance: 8Ω (typ) and 4Ω (typ)
- Headphones Plug: 3.5mm
- Operating Voltage: As Customer Requirement
- Power Dissipation: 100W (typ)
- Sound Input: AUX x2, Bluetooth Wireless,
- Bluetooth Transfer Distance: 10m
- Bluetooth Module: 3.0 Version
- Dimension(mm):346×210×250
- Net Weight: 11.2kg
