| Standard: | DIN |
|---|---|
| Brand Name: | Rbo |
| Material: | Stainless Steel&Carbon Steel |
| Certificate: | ISO9001 |
| Size: | M1.6-M30 |
| Model Number: | M1.6-M30 |
| Place of Origin: | China (Mainland) |
| Material: | Spring Steel&Stainless Steel |
Quick Details
Specifications

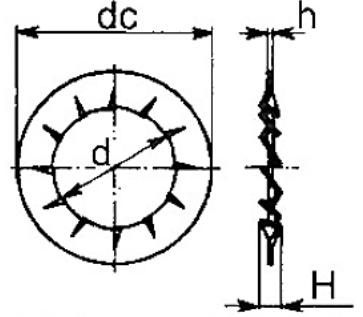

| DIN6798J Internal Serrated Lock Washer | |||||
| Dimension | D H13 |
DC h14 |
H min |
Height |
Teeth min |
| 1.6 | 1.7 | 3.6 | 3h |
0.3 | 7 |
| 1.8 | 2 | 4 | 0.3 | 7 | |
| 2 | 2.2 | 4.5 | 0.3 | 7 | |
| 2.2 | 2.4 | 5 | 0.4 | 7 | |
| 2.5 | 2.7 | 5.5 | 0.4 | 7 | |
| 3 | 3.2 | 6 | 0.4 | 7 | |
| 3.5 | 3.7 | 7 | 0.5 | 8 | |
| 4 | 4.3 | 8 | 0.5 | 8 | |
| 5 | 5.3 | 10 | 0.6 | 8 | |
| 6 | 6.4 | 11 | 0.7 | 9 | |
| 7 | 7.4 | 12.5 | 0.8 | 10 | |
| 8 | 8.4 | 15 | 0.8 | 10 | |
| 10 | 10.5 | 18 | 0.9 | 12 | |
| 12 | 13 | 20.5 | 1 | 12 | |
| 14 | 15 | 24 | 1 | 14 | |
| 16 | 17 | 26 | 1.2 | 14 | |
| 18 | 19 | 30 | 1.4 | 14 | |
| 20 | 21 | 33 | 1.4 | 16 | |
| 22 | 23 | 36 | 1.5 | 16 | |
| 24 | 25 | 38 | 1.5 | 16 | |
| 27 | 28 | 44 | 1.6 | 18 | |
| 30 | 31 | 48 | 1.6 | 18 | |
| Materials | Our Advice for You below: |
| Spring Steel: 65Mn | ≤200°C, under Normal Condition |
| Stainless Steel: SS304, SS316 | ≤300°C, under Corrosive Condition |
| Customized as Per Clients' Requirements |
Plated Zinc,Darcomet, Geomet, Black Finishing
Basic information:
Model NO.:DIN6798J
Material:Stainless Steel
Combination Washer Packaging:All Inclusive
Size:M6-M16
Shipping Method:by Sea,by Air
Payment Term:T/T,Westunion,L/C
Certificates:ISO 9001:2000
Trademark:Rbo
Specification:M1.6- M30
Type:Lock Washer
Combination Washer Structure:A Type
Spring Washer Type:Standard
MOQ:1000 PCS
Delivery Time:3-20 Working Days
OEM&ODM:Supported
Loading Port:Shanghai Port
Production Ability:5000000 PCS / Month
Transport Package:25*16*25cm Carton Box, Then Polywood Box Packed
Origin:China
