| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | One year |
| Certification: | CE |
| Weight: | 340kg |
| Dimension(L*W*H): | 2500*1000*1500mm |
| Voltage: | 220V/380V |
| Cooling Capability(kw): | 62.5 |
| Model Number: | XCA-20D |
| Brand Name: | XHC |
| Place of Origin: | China (Mainland) |
| Type: | Air-Cooled |
| Condition: | New |
Quick Details
Specifications

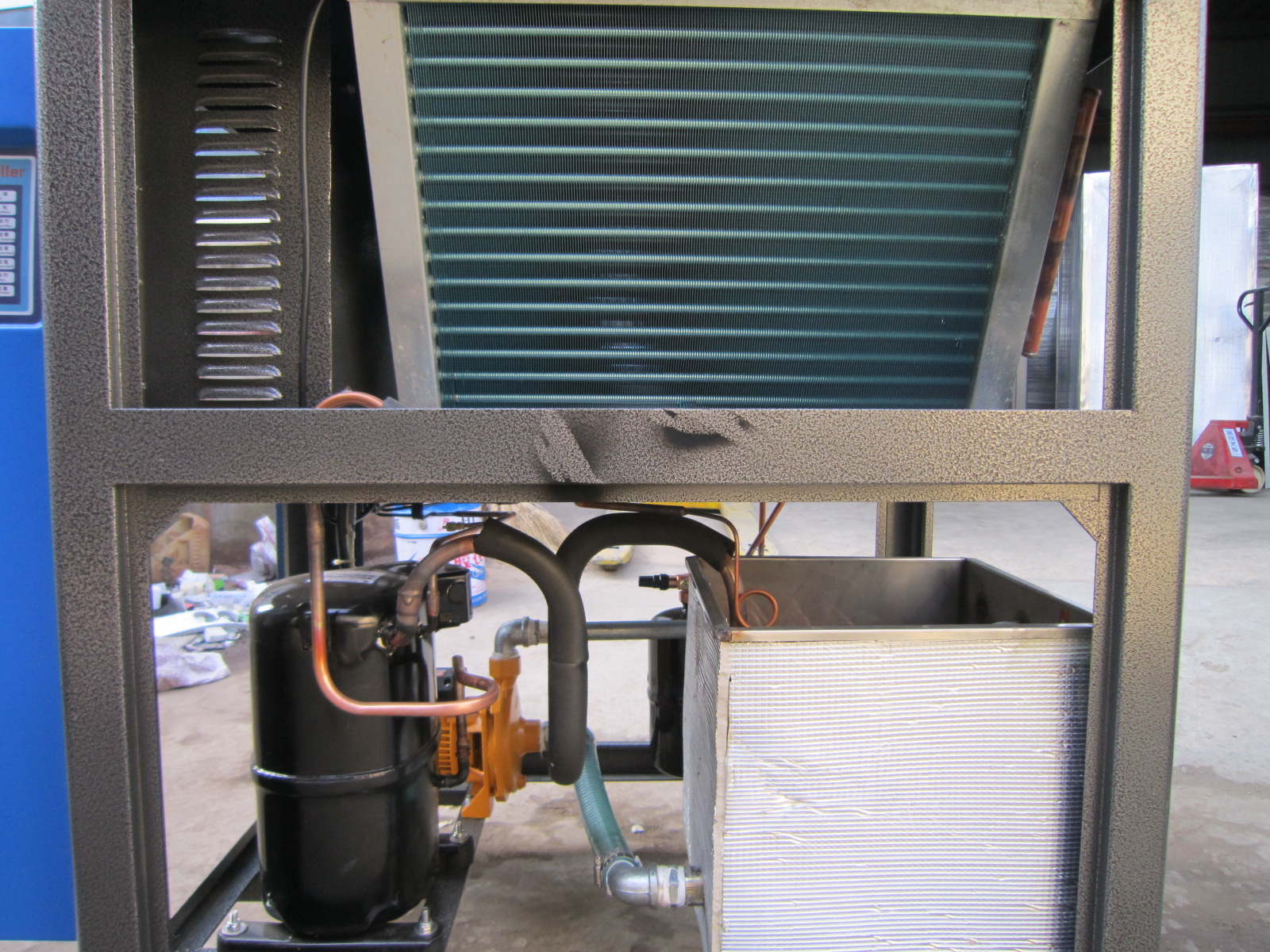

20HP Industrial air cooled water cooling system price
I.Description of Water cooling system:
1.XHC Air chiller has complete
specifications. It has the characteristic of perfect case design, electrostatic
plastic spraying shell, European design, beautiful and graceful appearance and
easy installation. The condenser use high efficiency internal thread tube with
clean water aluminium fins having "V" shape central air conditioner
design, high heat transfer well.
2.Compressors adopt the new and famous brand compressors imported from Europe, Japan and United Stated with the feature of environmental protection, energy saving and durability.
3.Easy installation, using
without cooling towers and cooling water circulation pumps.
II.Technical parameter of Water cooling system :
|
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
|
Capacity |
Power |
|
Flow water |
Cooling air |
size |
|
|
The models below include 1 Compressor |
||||||
|
XCA-02S |
4988kcal/hr |
2.5kw |
1.9kw |
1.3m3/h |
2270m3/h |
0.8*0.6*0.85m |
|
XCA-03S |
8428kcal/hr |
3.4kw |
2.9kw |
1.8m3/h |
3400m3/h |
0.95*0.68*1.0m |
|
XCA-05S |
13,932kcal/hr |
5.7kw |
4.8kw |
2.6m3/h |
4550m3/h |
1.28*0.68*1.2m |
|
XCA-08S |
21,156kcal/hr |
8.5kw |
7.5kw |
4.2m3/h |
6800m3/h |
1.24*0.73*1.38m |
|
XCA-10S |
27,090kcal/hr |
11.4kw |
9.8kw |
5.5m3/h |
9600m3/h |
1.5*0.8*1.32m |
|
XCA-12S |
31,304kcal/hr |
13.3kw |
11.8kw |
6.6m3/h |
9600m3/h |
1.5*0.8*1.35m |
|
The models below include 2 Compressors |
||||||
|
XCA-16D |
41,796kcal/hr |
18.1kw |
15.2kw |
7.8m3/h |
13200m3/h |
1.58*0.95*1.46m |
|
XCA-20D |
53,750kcal/hr |
22.8kw |
19.8kw |
11.2m3/h |
19800m3/h |
2.5*1.0*1.5m |
|
XCA-25D |
62,264kcal/hr |
26.9kw |
23.8kw |
13.4m3/h |
26000m3/h |
2.5*1.0*1.58m |
|
XCA-30D |
83,420kcal/hr |
36.5kw |
30.6kw |
16.6m3/h |
265000m3/h |
2.65*1.0*1.58m |
|
XCA-40D |
107,500kcal/hr |
45.8kw |
39.5kw |
21.2m3/h |
39800m3/h |
2.8*1.15*1.68m |
|
XCA-50D |
124,700kcal/hr |
53.9kw |
47.2kw |
26.5m3/h |
52000m3/h |
2.8*1.9*1.75m |
|
Note : |
||||||
|
1.The details above is based on the following parameter :Evaporator temperature:10°C, Condensing temperature:54.4°C |
||||||
|
2.Main Voltage :3Phase-380V/50HZ ,3Phase-220V-50HZ/60HZ |
||||||
|
3.Refrigerant :R22 or R404a |
||||||
