| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1500*1300*2800mm |
| Model Number: | VP-Y4 |
| Brand Name: | Van Pack |
| Place of Origin: | China (Mainland) |
| Power: | 2.8KW |
| Voltage: | 220V |
| Driven Type: | Pneumatic |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Foil,Pouch |
| Application: | Beverage,Commodity,Food,Medical |
| Function: | Filling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

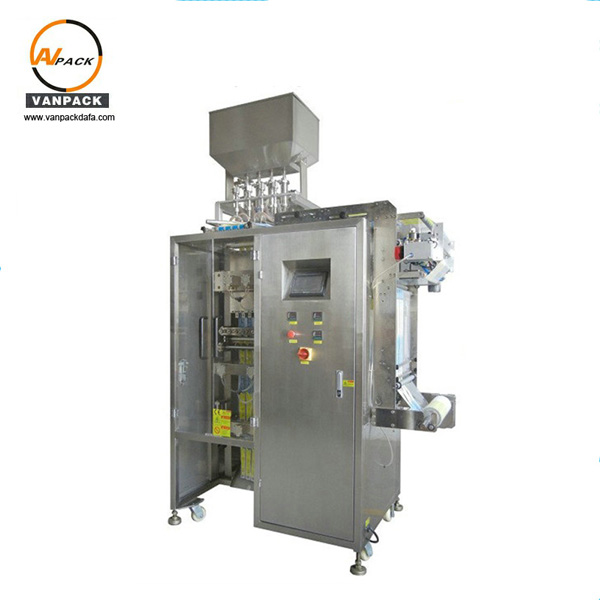

Automatic 4 Lanes Ice Pop Packing Machine
1.Brief Introduction:
The machine is suitable for liquid like ice pop, juice, medicine oral, water, wine, vinegar and so on
2.Techincal parameters:
Model
VP-4C
VP-6C
VP-8C
Lanes
4Lanes
6Lanes
8Lanes
Sachet Range
(W)25-55mm
(L)30-320mm
(W)25-51mm
(L)50-320mm
(W)25-37.5mm
(L)50-320mm
One machine is for one width only (the users can choose one of their range),the length can be adjusted freely
Maxi. film width
480mm
680mm
680mm
Machine speed
Sticks/Minute
100-160PCS
150-240PCS
200-320PCS
Bag type
4 Side Seals Sachet
Gas volume
0.4cbm/minute 0.6Mpa
Voltage
AC220V/50-60HZ Single Phase or AC380V/50HZ 3 Phases
Total Power
2.8KW
3.2KW
3.6KW
Weight to Pack
1-30ml;10-100ml
Control system
PLC control system
Packing material
Laminated film ,laminated paper, Pure Aluminum film
Measuring Way
Piston Pump Filler With Electric Valve
Accuracy
1%
Machine Material
Full Stainless Steel 304
Machine Size
1500*1300*2800mm
Function:
Be able to load liquid or paste to the hopper of the machine, weight, fill, make the bag, print manufacture date and expiry date and batch number, seal, cut off, cut easy-tearing notch automatically
3.Performance features:
The machine is suitable for liquid like ice pop, juice, medicine oral, water, wine, vinegar and so on
