| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 month |
| Certification: | CE ISO |
| Weight: | 680kg |
| Overall Dimensions: | 1550*850*2000mm |
| Table Size: | 1370*600mm |
| Max. Lifting Height: | 18m |
| Min. Lifting Height: | 4m |
| Rated Loading Capacity: | 250kg |
| Power: | 1.5kw |
| Lift Drive / Actuation: | Hydraulic |
| Lift Mechanism: | Lift Chain |
| Model Number: | SPA |
| Brand Name: | Spower |
| Place of Origin: | China (Mainland) |
| Product name: | man lift |
| Pump station: | Italy & China venture 1.5kw station |
| wheels: | 4 pieces |
| Lifting speed: | 4-6m/min |
| OEM: | Offered |
| Material: | High-strength Aluminum Alloy |
| Color: | Customized Color Acceptable |
| Feature: | man lift |
| Guardrail height: | 1100mm |
| Power source: | AC DC(battery) for your choice |
Quick Details
Specifications

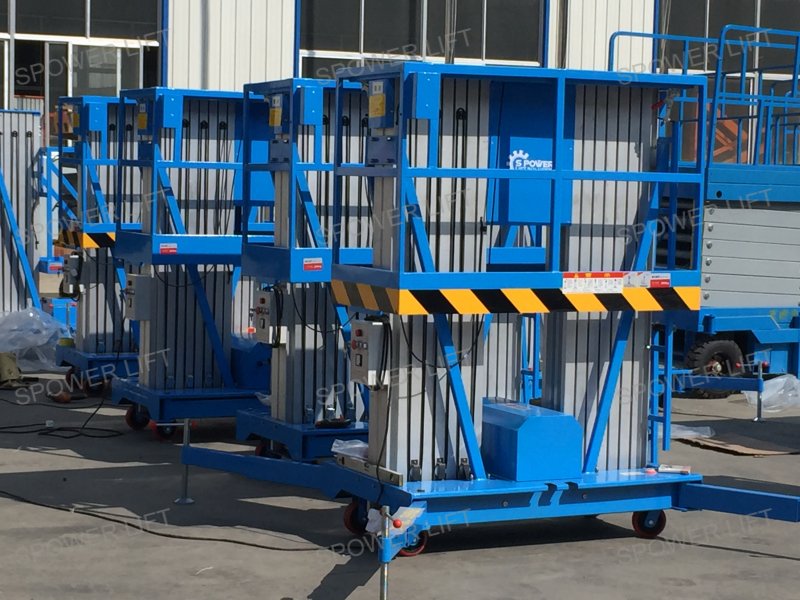

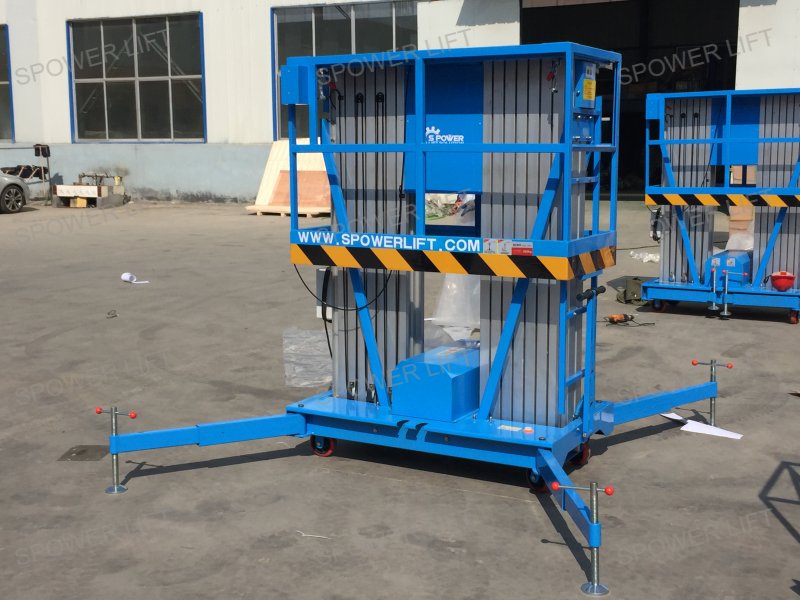

Double mast aluminium hydraulic mobile man lift
This man lift is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops,
business hall, hotels, lobby,restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment
maintenance,paint decoration.
Main Models
|
Aluminum lift |
Vertical travel(m) |
Platform size(mm) |
Loading capacity (kg) |
Overall size(mm) |
Lift weight (kg) |
|
Single Mast |
4 | 600*600 | 100 | 1300*820*1980 | 250 |
| 6 | 600*600 | 100 | 1300*820*1980 | 320 | |
| 8 | 600*600 | 100 | 1300*820*1980 | 320 | |
| 10 | 600*600 | 100 | 1300*820*2200 | 360 | |
|
Double Mast |
6 | 1370*600 | 250 | 1550*850*1650 | 450 |
| 8 | 1370*600 | 250 | 1550*850*2000 | 560 | |
| 10 | 1370*600 | 250 | 1550*850*2000 | 680 | |
| 12 | 1470*600 | 200 | 1550*850*2000 | 720 | |
| 14 | 1470*600 | 200 | 1550*850*2500 | 780 | |
| Three Mast | 10 | 1580*800 | 250 | 1880*1000*2050 | 1080 |
| 12 | 1580*800 | 250 | 1880*1000*2050 | 1160 | |
| 14 | 1600*800 | 200 | 1900*1200*2500 | 1060 | |
| 16 | 1600*800 | 200 | 2000*1200*2500 | 1120 | |
| Four mast | 12 | 1580*800 | 250 | 1950*1200*2000 | 1050 |
| 14 | 1600*800 | 200 | 1950*1200*2500 | 1250 | |
| 16 | 1600*800 | 200 | 2000*1200*2500 | 1480 | |
| 18 | 1580*800 | 250 | 2150*1350*2960 | 1700 |
Introduction
A. Our aluminium hydraulic man lift are made up of high grade aluminum profile.

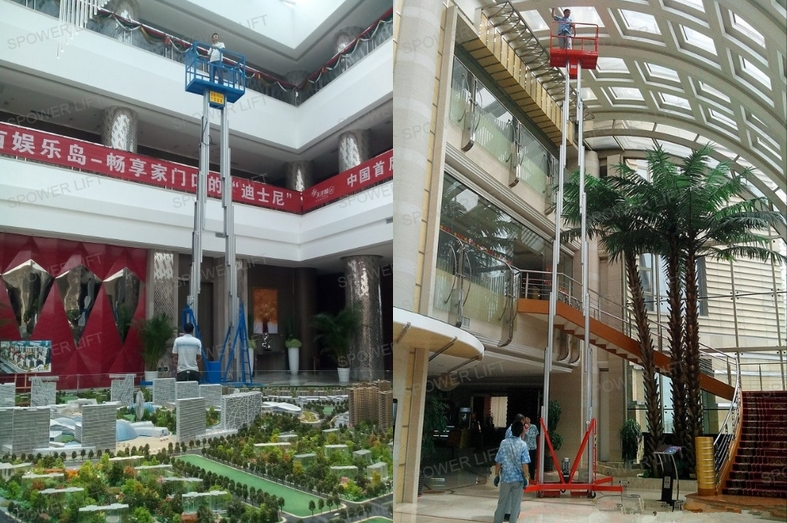

B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 250kg.The power sources could be 110,220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
Advantage
1.The aluminium man lift is light weight, good flexibility, and suitable for two people to operate.
2. Beautiful structure, light weight.
3. Compact structure, small size transport state, can enter narrow and small area.
4. Safety protection device and imported pump, increases the service life and safety assurance.
5. No noise and air pollution.
6.No installation, easy to maintenance.
After service:

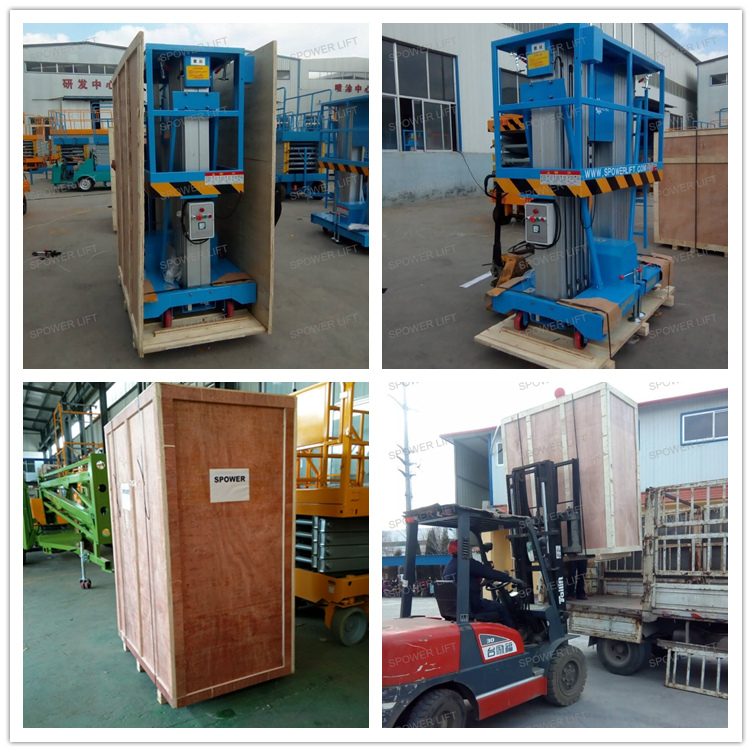

1. All man lift sold will be tested before shipment;
2. One year warranty without man-made fault;
3. 24hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free within warranty.
