| Application: | Laser Marking |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Power(W): | 10W/20/30W/50W/75W |
| Model Number: | OV-FP |
| Brand Name: | OV Laser |
| Place of Origin: | China (Mainland) |
| Working Accuracy: | 0.01 |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | EZCad |
| Cooling Mode: | Air Cooling |
| CNC or Not: | Yes |
| Laser Type: | Fiber Laser |
| Condition: | New |
| Laser Power: | 10watt 20watt 30watt 50watt |
| Laser source: | IPG,Raycus |
| Laser Wave Length: | 0.015mm |
| Laser Head: | Balvenometer |
| Marking Speed: | 0-7000mm/s |
| Marking Depth: | 0.1-4mm |
| Working Accuracy: | <=0.001mm |
| Makring Area: | 110*110mm, 200*200mm |
| Applicable Material: | Acrylic,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Wood |
| Dimension: | 900*600*260mm |
Quick Details
Specifications
1. Machine Introduction:

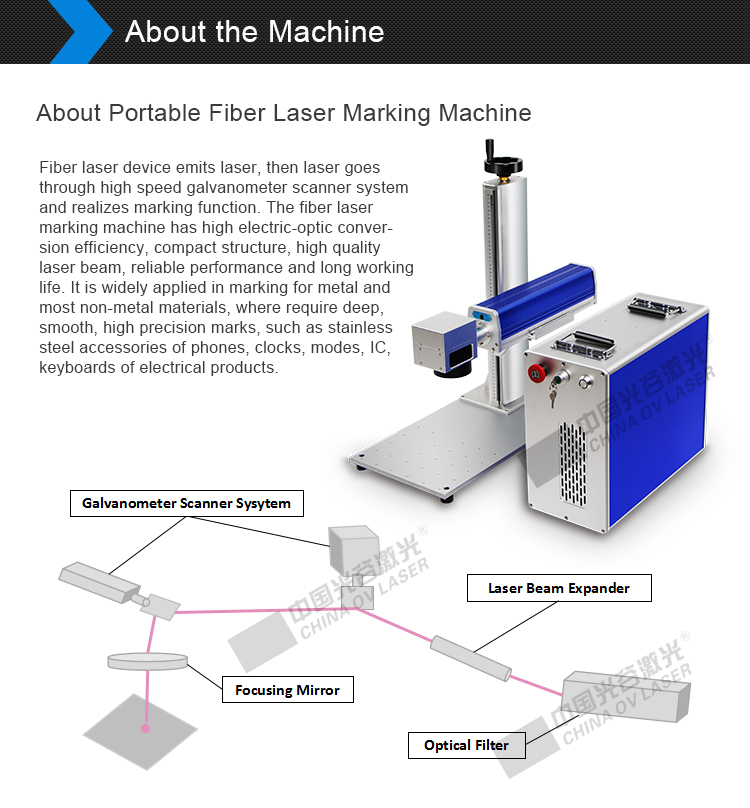

Fiber laser device emits laser, then laser goes through high speed galvanometer scanner system and realizes marking function. The fiber laser marking machine has high electric-optic conversion efficiency, compact structure, high quality laser beam, reliable performance and long working life. It is widely applied in marking for metal and most non-metal materials, where require deep, smooth, high precision marks, such as stainless steel accessories of phones, clocks, modes, IC, keyboards of electrical products.
2. Machine Structure:
The machine is combined of laser device, computer, auto controller and precision machinery.
3. Machine Specification
4. Advantages of the Machine
Fiber laser device emits laser, then laser goes through high speed galvanometer scanner system and realizes marking function. The fiber laser marking machine has high electric-optic conversion efficiency, compact structure, high quality laser beam, reliable performance and long working life. It is widely applied in marking for metal and most non-metal materials, where require deep, smooth, high precision marks, such as stainless steel accessories of phones, clocks, modes, IC, keyboards of electrical products.
2. Machine Structure:
The machine is combined of laser device, computer, auto controller and precision machinery.
3. Machine Specification
|
Index |
Information |
Remark |
|
Laser Type |
Continuous Laser or pulse Laser |
|
|
Output Laser Power |
10w/20w/30w/50w |
Optional: 10w/20w/30w/50w/75w |
|
beam quality M2 |
<2 |
|
|
Laser Wavelength |
1064nm |
|
|
Repetition Frequency |
0-100KHZ |
|
|
Marking Area |
110*110mm |
Optional: 50mm*50mm / 100mm*100mm / 200mm*200mm /3 00mm*300mm |
|
Marking Depth |
0.01～0.015mm |
|
|
Marking Speed |
<=7000mm/s |
|
|
Repeated Precision |
0.0002mm |
|
|
Minimum Line Width |
0.015～0.1mm |
|
|
Minimum Character |
0.2mm |
|
|
Voltage |
380V/50-60Hz or 220V/50-60Hz |
|
|
Power of whole machine |
0.5KW |
|
|
Positional Accuracy |
0.02mm |
|
|
Laser Working Life |
﹥100,000 hours |
|
|
Cooling Way |
Air Cooling inside |
|
|
Control Interface |
Standard USB |
|
|
Volume of machine |
900*600*260mm |
|
4. Advantages of the Machine
|
No. |
Advantages |
Keyword |
Detail Description |
|
1 |
Superior Laser Beam |
1 micron |
The definition is 1 micron,10 times as that of traditional products. |
|
2 |
High Precision |
Up to 0.0012mm |
Up to 0.0012mm, bring you the fantastic and satisfied marking effect |
|
3 |
Excellent Marking Result |
Max. 1mm |
Max. 1mm for stainless steel, suitable for the industries which need high precision and depth marking effect. |
|
4 |
High Speed |
up to 7000 mm/s |
Imported scanning system makes the scanning speed is up to 7000 mm/s, is 3 to 5 times above that of traditional products. |
|
5 |
High Reliability |
>100,000 hours |
MTBMTBF (Mean Time Between Failure) > 100,000 hours |
|
6 |
Easily Operating |
AutoCAD, Coredraw, Photoshop |
humanized operating process, the CNC Software supports AutoCAD, Coredraw, Photoshop etc. Output software, can automatically edit and revise characters, pictures, bar codes, QR codes, serial numbers and so on, and supports PLST, PCX, DXF, BMP, JPG and many other graphs. |
|
7 |
Ultra-long lifetime |
10 years without Consumables |
One Fiber marker can work for more than 10 years without any consumables. |
|
8 |
Energy Saving |
up to 30% |
The efficiency of optic-electrical converting is up to 30% |
