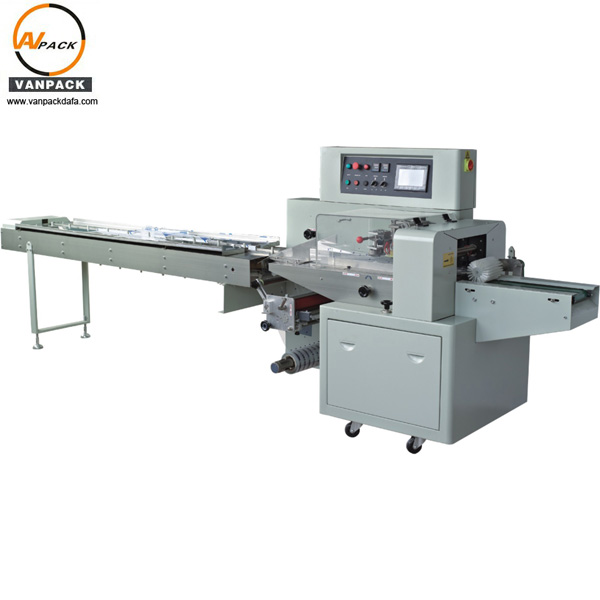

Automatic Hardwares Parts Packing Machine


1.Brief Introduction:

I. Main performance and structure features

1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.

2. human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.







II. Application

Suitable for packaging various kinds of regular objects like baby diaper,biscuits , pies , chocolates , bread , instant noodles , moon-cakes , drugs , daily appliances , industrial parts , paper boxes, plates , etc .





2.Techincal parameters:

Model	VP--600
Machine speed	20-80bags/min
Bag size range	(W)50-250mm (L)120-450mm
Max. Film Width	≤600mm
Product Height	Max.80mm
Dimension of Film Roll	Out Dia.≤320mm, Inner Dia.≤75mm
Bag type	Pillow type bag
Notch	Zipper
Voltage	AC220V Single-phase 50HZ or 380V/50HZ three phases
Total Power	5KW
G.W	900KG
Control system	Panasonic PLC control system
Packing material	BOPP/CPP.PET/AL/PE
Material	Stainless steel 304+Carbon Steel
Machine Dimension	(L)4020×(W)970×(H)1500mm

3.Performance features:

The machine can pack baby diaper ,biscuit, bonbon, donut ,handles, cake, bread, candy, spoon, jasmine flake, card, Battery jelly, pistachio, dumpling, chocolate, pet food & small hardware (screw, nail, Handle, bolt) ,fork ,knife and so on

Function:

Convey, make bag, ,seal, cut off and stick barcode label on the sachet automatically.

width and Length of the bag:

It can be adjusted freely and don't need to change any parts of the machine

Batch Coding: it can print the date and batch number on the sachet.
