| Application: | Laser Marking |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Power(W): | 10W/20W/30W/50W |
| Model Number: | OV-PF |
| Brand Name: | Optics Valley |
| Place of Origin: | China (Mainland) |
| Working Accuracy: | 0.01 |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | EZCAD Software |
| Cooling Mode: | Air Cooling |
| CNC or Not: | Yes |
| Laser Type: | Fiber Laser |
| Condition: | New |
| Laser source: | IPG,Raycus |
| Laser head: | Galvenometer |
| Marking Speed: | 7000mm/s |
| Laser marking Depth: | 0.01-4mm |
| Working Accuracy: | 0.002mm |
| Fiber laser source lifespan: | 100,000-200,000 hours |
| Marking Area: | 50mm*50mm- 300mm*300mm |
| Applicable Material: | Acrylic,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Wood |
| Dimension: | 900*600*260mm |
| Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Quick Details
Specifications
1. Machine Introduction
Fiber laser device emits laser, then laser goes through high speed galvanometer scanner system and realizes marking function. The fiber laser marking machine has high electric-optic conversion efficiency, compact structure, high quality laser beam, reliable performance and long working life. It is widely applied in marking for metal and most non-metal materials, where require deep, smooth, high precision marks, such as stainless steel accessories of phones, clocks, modes, IC, keyboards of electrical products.

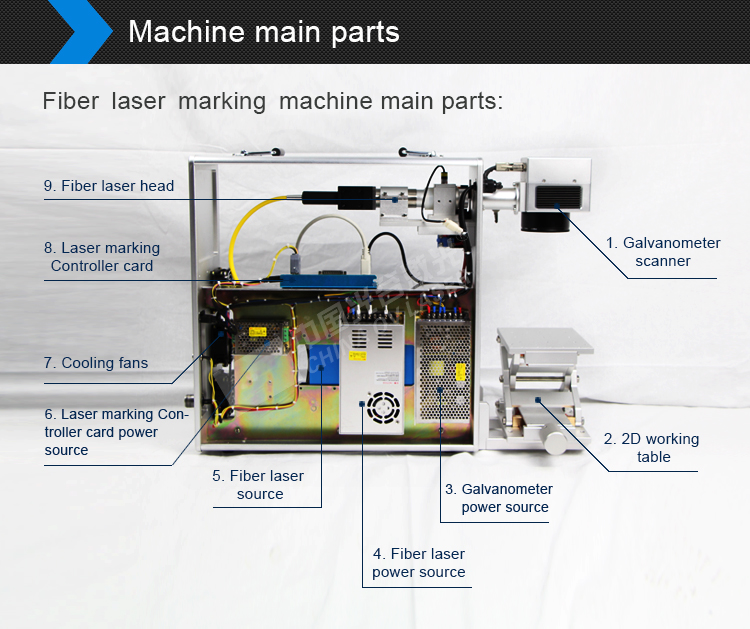

2. Machine Structure:
|
No. |
Main Part |
Remarks |
|
1 |
Gavanometer Scanner |
|
|
2 |
Working Table |
2D/3D for choosing |
|
3 |
Gavanometer Power Source |
|
|
4 |
Fiber Laser Power Source |
|
|
5 |
Fiber Laser Source |
|
|
6 |
Laser Marking Controller Card Power Source |
|
|
7 |
Cooling Fans |
|
|
8 |
Laesr Marking Controller Card |
|
|
9 |
Fiber Laser Head |
|
3. Machine Advantages:
|
No. |
Advantages |
Keyword |
Detail Description |
|
1 |
Superior Laser Beam |
1 micron |
The definition is 1 micron,10 times as that of traditional products. |
|
2 |
High Precision |
Up to 0.0012mm |
Up to 0.0012mm, bring you the fantastic and satisfied marking effect |
|
3 |
Excellent Marking Result |
Max. 1mm |
Max. 1mm for stainless steel, suitable for the industries which need high precision and depth marking effect. |
|
4 |
High Speed |
up to 7000 mm/s |
Imported scanning system makes the scanning speed is up to 7000 mm/s, is 3 to 5 times above that of traditional products. |
|
5 |
High Reliability |
>100,000 hours |
MTBMTBF (Mean Time Between Failure) > 100,000 hours |
|
6 |
Easily Operating |
AutoCAD, Coredraw, Photoshop |
humanized operating process, the CNC Software supports AutoCAD, Coredraw, Photoshop etc. Output software, can automatically edit and revise characters, pictures, bar codes, QR codes, serial numbers and so on, and supports PLST, PCX, DXF, BMP, JPG and many other graphs. |
|
7 |
Ultra-long lifetime |
10 years without Consumables |
One Fiber marker can work for more than 10 years without any consumables. |
|
8 |
Energy Saving |
up to 30% |
The efficiency of optic-electrical converting is up to 30% |
4. Specifications
|
Index |
Information |
Remark |
|
Laser Type |
Continuous Laser or pulse Laser |
|
|
Output Laser Power |
10w/20w/30w/50w |
Optional: 10w/20w/30w/50w/75w |
|
beam quality M2 |
<2 |
|
|
Laser Wavelength |
1064nm |
|
|
Repetition Frequency |
0-100KHZ |
|
|
Marking Area |
110*110mm |
Optional: 50mm*50mm / 100mm*100mm / 200mm*200mm /3 00mm*300mm |
|
Marking Depth |
0.01～0.015mm |
|
|
Marking Speed |
≤7000mm/s |
|
|
Repeated Precision |
0.0002mm |
|
|
Minimum Line Width |
0.015～0.1mm |
|
|
Minimum Character |
0.2mm |
|
|
Voltage |
380V/50-60Hz or 220V/50-60Hz |
|
|
Power of whole machine |
0.5KW |
|
|
Positional Accuracy |
0.02mm |
|
|
Laser Working Life |
﹥100,000 |
|
|
Cooling Way |
Air Cooling inside |
|
|
Control Interface |
Standard USB |
|
|
Volume of machine |
570mmX270mmX200mm |
|
5. Laser Marking Samples:
OV Portable Laser fiber laser marking machine is widely applied for stainless steel marking, carbon steel marking, iron making, aluminum marking, copper marking, anodized and coated material materials marking, as well as some not-metallic materials such as hard plastic marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable, computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
6. Package:
There are 3 layers of package:
1. waterproof thickening plastic bag;
2. foam to protect from shaking;
3. solid export wooden case.
7. After-sales Service:
1. One year for laser source,two years for all other parts.
2. 24 hours technical support by email or calling.
3. Free training for installation and operation.
8. FAQ
1.How to install and use this laser marking machine?
The machine is already installed before shipping by our technical team.We have very detailed English manual for laser system and laser marking software. For some small parts installation, we will send detail training video, user's manual along with the machine. 98% customers can learn by themselves. We will also guide you if you have any doubts.
2.What if there is sth wrong with laser marking machine?
Please contact us at first time and do not try to fix it by yourself. We will response within 24 hours as quick as we can to solve it for you.
