| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Extra Services: | Slotting & Notching |
| Automation: | Automatic |
| Power: | Cnc |
| Material / Metal Processed: | Stainless Steel |
| Raw Material: | Sheet / Plate Rolling |
| Machine Type: | Roller-Bending Machine |

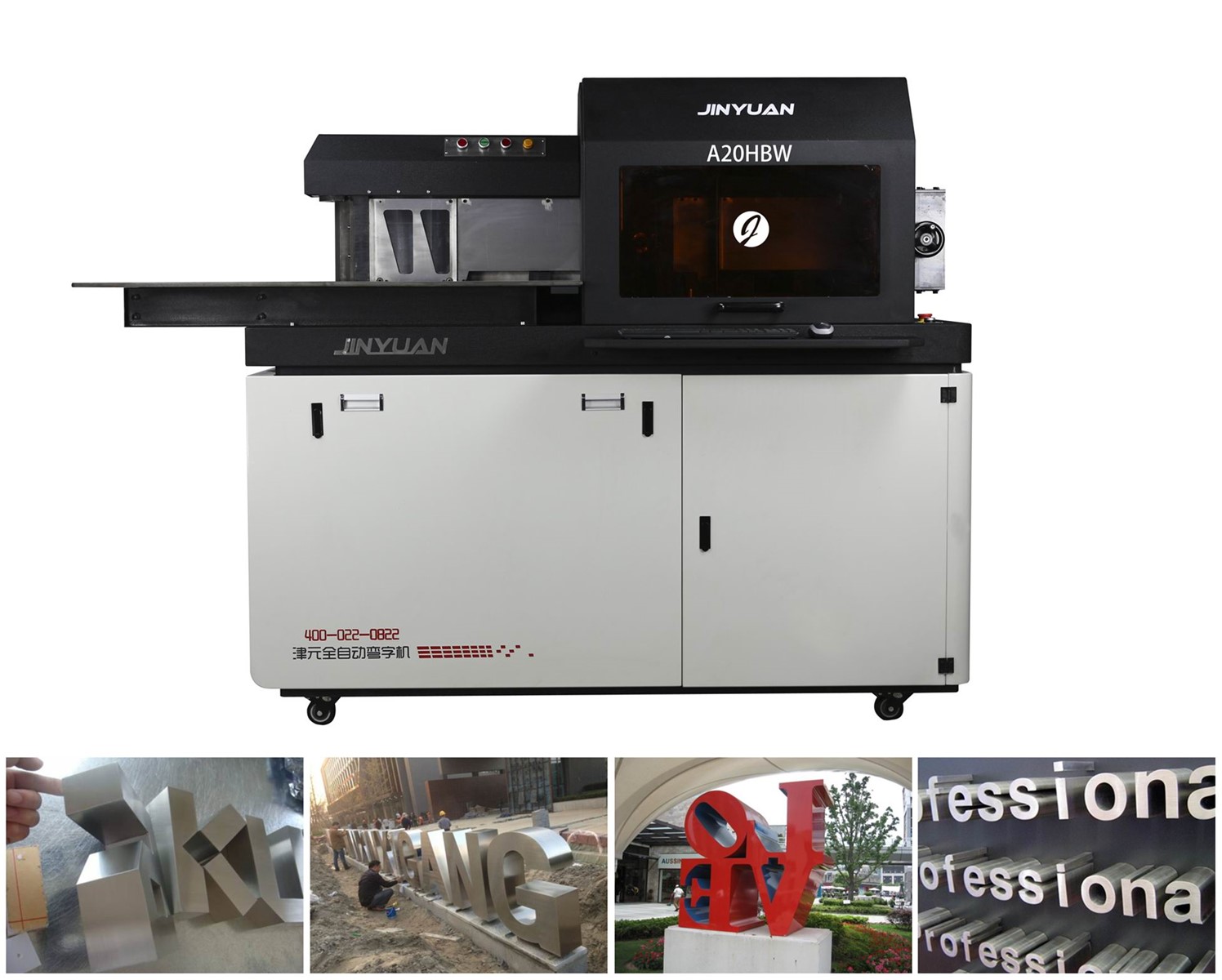

| Model Number: | A20HBW |
| Brand Name: | JINYUAN |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications
Specifications:
Feeding System ( Progressive clamping feeding device )
Slotting System ( plane cutter slotting system )
Bending System ( Double blade alternate bending system)
Suitable Material ( Stainless steel,Galvanized steel, Aluminum)
Material Height (20-200mm)
Material Thickness ( Stainless stel, Galvanized steel≤1.5mm, Aluminum≤2.5mm)
Size Accuracy ( ±0.1mm )
Input File Format( .Dxf, .Plt )
Dimensions( L1860MM *W680MM * H1700MM)
Power ( AC220 50Hz 3.0Kw)
Air Source ( 0.6m3 /Min)
Total Weight ( 600Kg)
Slotting System ( plane cutter slotting system )
Bending System ( Double blade alternate bending system)
Suitable Material ( Stainless steel,Galvanized steel, Aluminum)
Material Height (20-200mm)
Material Thickness ( Stainless stel, Galvanized steel≤1.5mm, Aluminum≤2.5mm)
Size Accuracy ( ±0.1mm )
Input File Format( .Dxf, .Plt )
Dimensions( L1860MM *W680MM * H1700MM)
Power ( AC220 50Hz 3.0Kw)
Air Source ( 0.6m3 /Min)
Total Weight ( 600Kg)
Feature:
Two groups fixture which are set Respectively before and after the encoder to clamp the material for progressive Work. Compare with the circular clamping feeding it can effectively reduce the Material waste during using the plate material. Serco drive and high quality Ball screw and linear guide configuration makes the feeding smooth and steady. the strengthened design of the blade and knife improve the height and thickness of plates.
