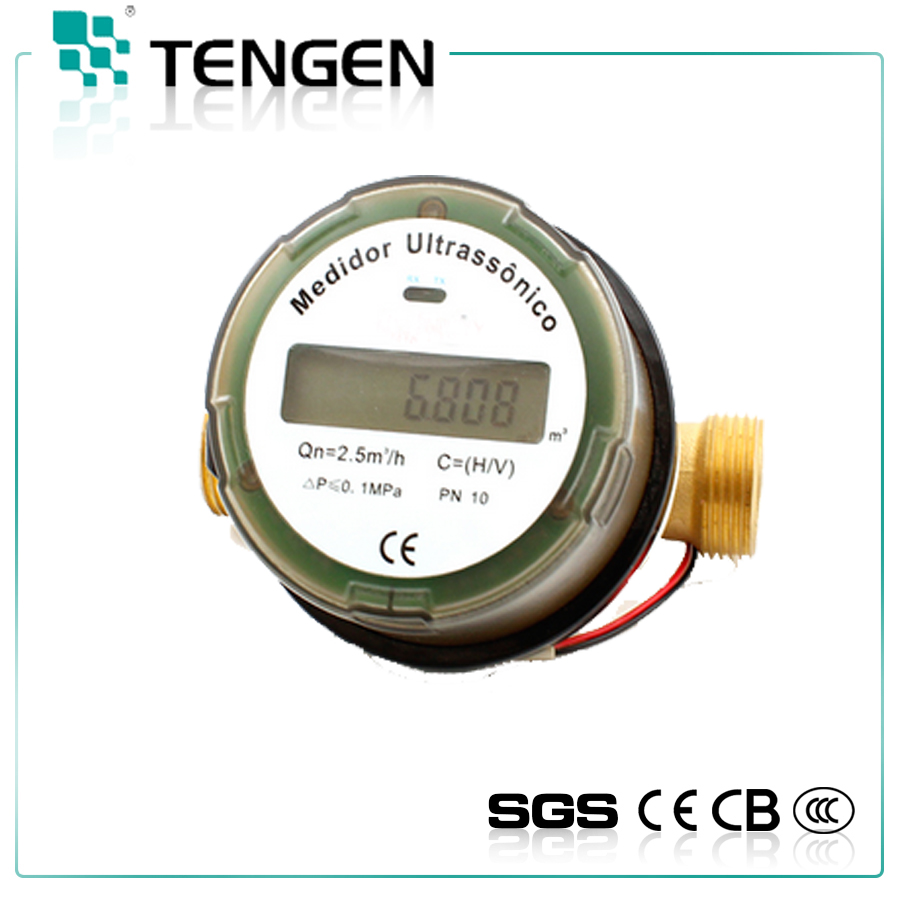

G1.6/2.5 IP68 Intelligent Water meter with alarm

Application



G1.6/2.5 IP68 Intelligent Water meter with alarm  use for precise measurement of water, and can provide records and data transmission of various application for the water supply pipeline.

Parameters

Medium Temperature Range	1-85   °C
Working Ambient Temperature	-20-70   °C
Storage Temperature	-30-80  °C
Nominal Pressure PN bar	16
Power Supply	3.6V Lithium Battery
Battery Life	More than 10 years
Communication Interface	Optical, M-BUS, MODBUS, RS485, Wireless 433,470 or 868MHz, Pulse
Data Storage	Use to store the daily data and events for 550 days
Protection Grade	IP68



Functions and features



1.No moving parts, ultrasonic measuring principle, guarantee in all kinds of long-term

measurement under complicated conditions.

2.Low power consumption, measuring accuracy: Level 2 .
3.According to the requirement of the user to form a net work for meter reading, intelligent

data collection .
4.Real-time data communication, ensure the data accurate and aging.
5.Leak detection, pipe burst alarm, flow and return flow detection .
6.Life decay detection for transducer, and air in the pipe detection.
7.Rotating casing, convenient installation .
8.Innovative pipeline design, ensure the flow of water stability.
9.Installation in any position, lifetime more than 10 years.

10.Protection grade: IP68, be suitable for any complex environment .

11.Intelligent design, LCD can display error message and alarm information.

Display Indicator		LCD, 8-digits,0-99999.99
Unit DN15-DN32		Accumulative Total Flow Quantity (m3 + 3 decimal places) Current Flow Rate
Unit DN40-DN50		Total Flow Quantity-Current Flow Quantity-Medium Temperature-Working State
Data Display		Wireless Signal On/Off-Undervoltage Reminder-Forward and Back Flow Indication Page Number Indication
