| Processing Type: | Plastic Thermoforming Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1year |
| Certification: | CE |
| Weight: | 6Ton |
| Power(W): | 50kw |
| Voltage: | 380v |
| Place of Origin: | China (Mainland) |
| Product Type: | Plastic Cup |
| Condition: | New |
Quick Details
Specifications
Sample:
1.Brief Introduction:

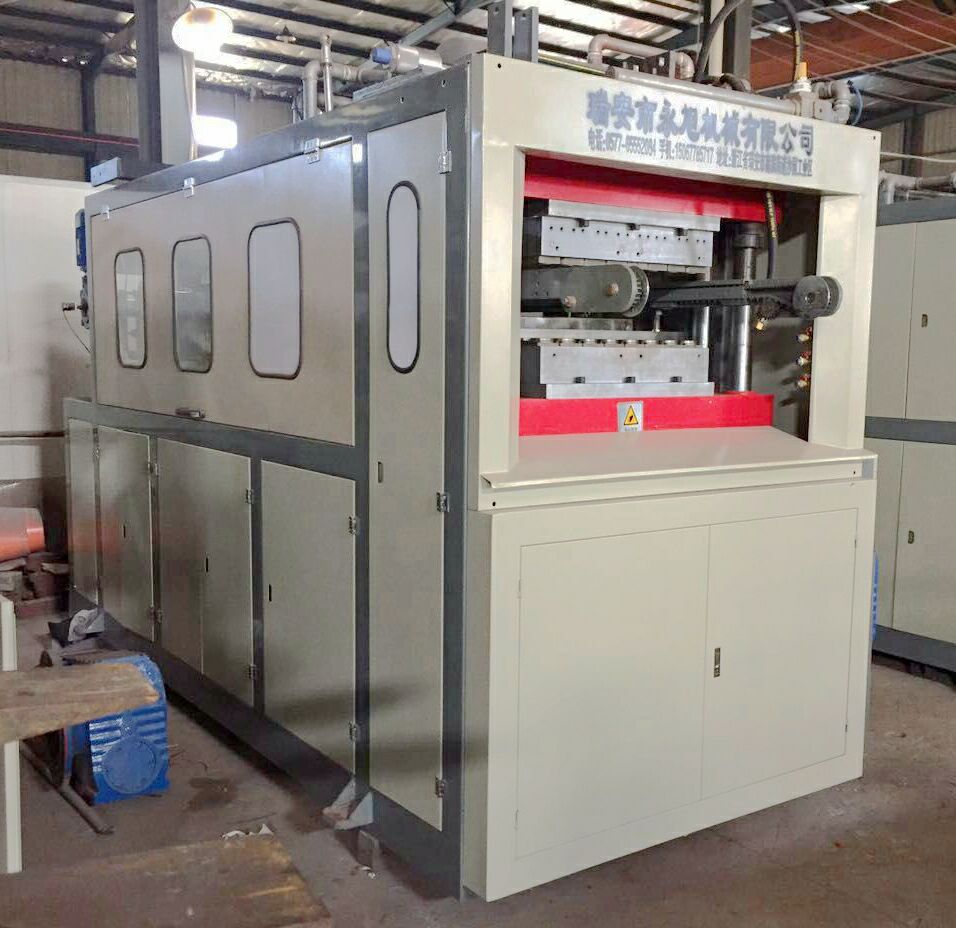

Automatic cam cup making machine for production different kinds of plastic cups,

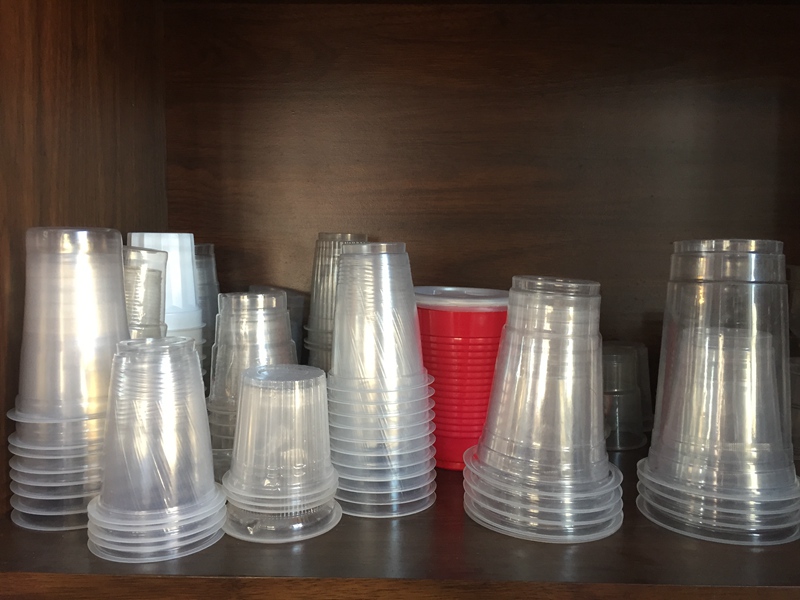

like drinking cups,ice cream cups, jelly cups, yogurt cups, coffee cups etc.
2.Techincal parameters:
Material
PP/PE/PS
Sheet thickness
0.3-2.0mm
Sheet width
500-720mm
Max Install area
750×350mm
Max forming depth
130mm
Work efficiency
10-30strokes/min
Heating rated power
≈50kw
Main motor power
11kw
Power supply
380V/50Hz(three phase four wire)
Voltage
0.6-0.8Mpa
Air volume required
2500～3500L/min
Water volume required
40～45L/min
Machine weight
About 6T
3.Performance features:
