| Standard: | DIN |
|---|---|
| Brand Name: | Rbo |
| Material: | Stainless Steel&Carbon Steel |
| Certificate: | ISO9001 |
| Size: | M3-M20 |
| Model Number: | M3-M20 |
| Place of Origin: | China (Mainland) |
| Material: | Spring Steel&Stainless Steel |
Quick Details
Specifications
| d | DC | h | H | |||||
| Nominal Diameter | Max | Min | Nominal | Tolerance | Nominal | Tolerance | Max | Min |
| 3 | 3.35 | 3.1 | 6 | ±0.24 | 0.5 | ±0.03 | 0.9 | 0.7 |
| 8 | ±0.29 | 0.6 | 1 | 0.8 | ||||
| 10 | ±0.29 | 0.6 | 1.2 | 0.95 | ||||
| 4 | 4.4 | 4.1 | 8 | ±0.29 | 0.8 | 1.2 | 1 | |
| 10 | ±0.29 | 0.9 | ±0.04 | 1.4 | 1.15 | |||
| 14 | ±0.35 | 1 | 1.8 | 1.4 | ||||
| 5 | 5.4 | 5.1 | 10 | ±0.29 | 1 | 1.6 | 1.25 | |
| 12 | ±0.35 | 1.1 | 1.8 | 1.45 | ||||
| 16 | ±0.35 | 1.2 | 2.1 | 1.7 | ||||
| 6 | 6.4 | 6.1 | 12 | ±0.35 | 1.2 | 1.85 | 1.55 | |
| 14 | ±0.35 | 1.3 | 2.1 | 1.75 | ||||
| 18 | ±0.35 | 1.4 | 2.5 | 2.1 | ||||
| 8 | 8.58 | 8.2 | 16 | ±0.35 | 1.4 | 2.2 | 1.8 | |
| 18 | ±0.35 | 1.4 | 2.35 | 1.9 | ||||
| 22 | ±0.42 | 1.4 | ±0.05 | 2.7 | 2.2 | |||
| 10 | 10.56 | 10.2 | 20 | ±0.42 | 1.6 | 2.6 | 2.1 | |
| 22 | ±0.42 | 1.6 | 2.75 | 2.25 | ||||
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 12 | 12.83 | 12.4 | 24 | ±0.42 | 1.8 | 2.9 | 2.4 | |
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 32 | ±0.5 | 2 | 3.6 | 3.1 | ||||
| 14 | 14.83 | 14.4 | 30 | ±0.42 | 2.4 | ±0.06 | 3.7 | 3.2 |
| 16 | 16.83 | 16.4 | 32 | ±0.5 | 2.8 | 4.1 | 3.6 | |
| 20 | 21.02 | 20.05 | 40 | ±0.5 | 3.2 | 4.9 | 4.3 | |
| Materials | Our Advice for You below: |
| Spring Steel: 65Mn | ≤200°C, under Normal Conditions |
| Stainless Steel: SS304, SS316 | ≤300°C, under Corrosive Conditions |
| Customized as Per Client's Requirements |
Dacromet, Gromet, Plated Zinc
Widely used in electric control cabinet, electrical equipment, railway, subway, mechanical and electrical equipment, communication equipment, elevator, rolling stock assembly, medical machinery and equipment and special equipment assembly industry, etc..
Basic information

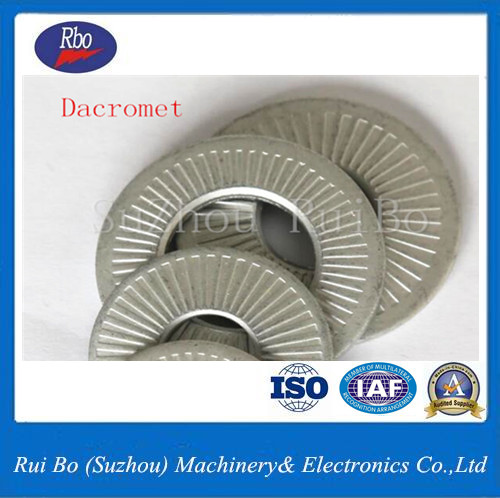

MOdel NO.:NFE25511
Material:Steel
Combination Washer Packaging:All Inclusive
Surface Treatment:Dacromet, Black Finishing
Delivery Time:3-20 Working Days
Production Ability:5000000 PCS / Month
ODM&OEM:Supported
Trademark:Rbo
Specification:DIN, ISO, ANSI, JIS, BS, UNI
Other Material:Stainless Steel
Payment Term:T/T,Westunion,L\C at Sight
Loading Port:Shanghai Port
Certificate:ISO9001
Transport Package:Polybag+Export Strong Carton, Clients′requirements
Origin:China
