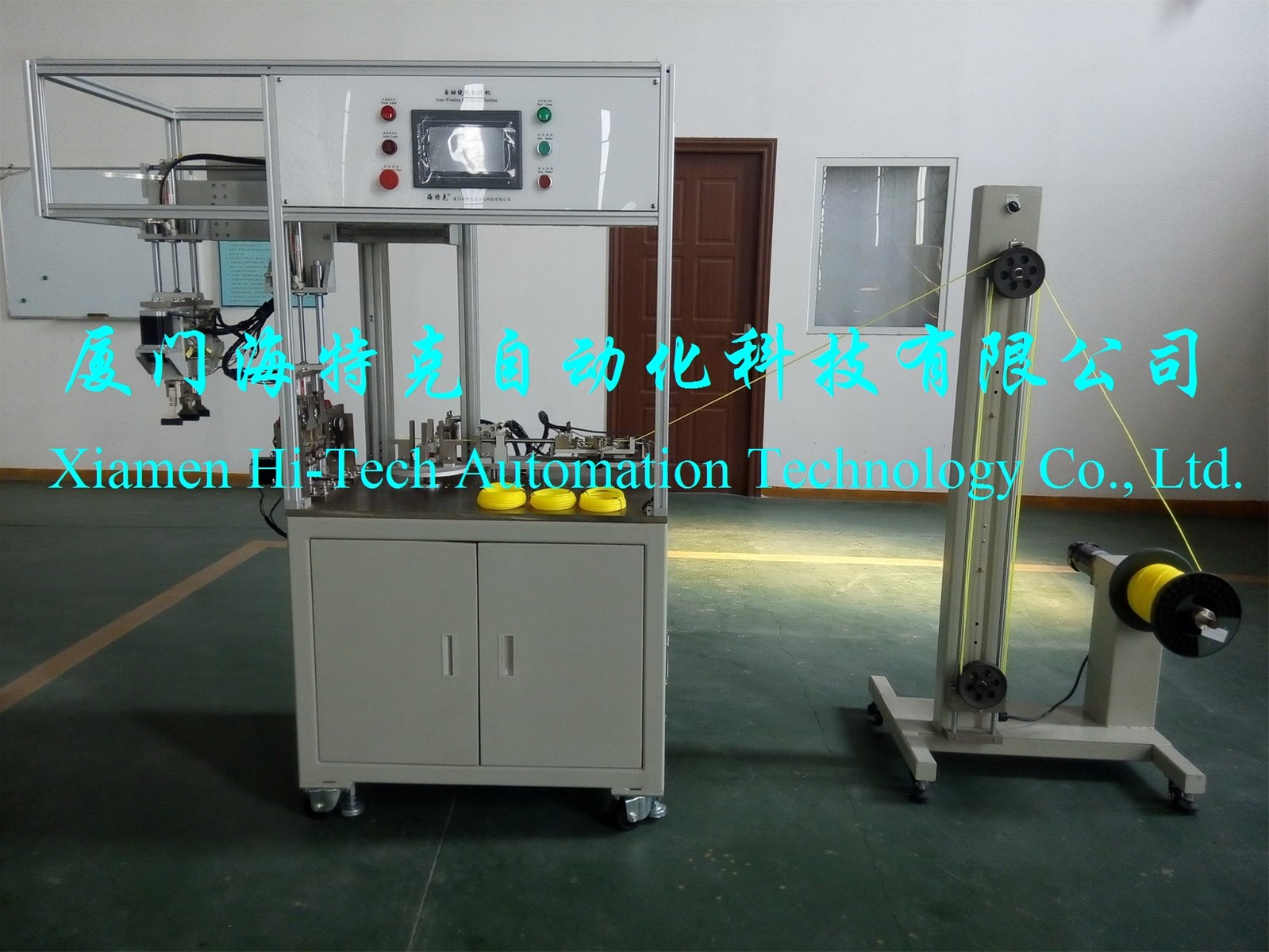

Auto Coiling & Enlacing Machine
Machine Characteristic

1,    Human Machine interface of touch screen; central control; convenient operation; Parameter setting; visual display.

2,    According to the setting parameter, the machine can automatically match the operation and Count the output under the PLC system.

3,    Photoelectric detection system Can automatically detect the lacking, spilling and none wire conditions and Alarm and stop the production.

4,    Complete Alarming and safety protecting function; double protection of electricity and Machinery which is safe and reliable.

2,    Cutting Module.

3,    Coiling Module.

4,    Enlacing Module.

5,    Transposing Module.

6,    Frame Module.

7,    Program and electrical control system.

Principle of Machine Running

1,    Feeding Module feeds wire through precision wheels that driven by stepping motor.

2,    Cutting Module cuts wire through alloy cutter that guided by linear guideway and driven by cylinder.

3,    Coiling Module driven by stepping motor and match feeding, winding and traversing Motion.

4,    Enlacing Module driven by stepping motor and enlaces product in double station.

Provided Technical Drawing

1,    Operation Manual.

2,    Machine Assembly drawing.

3,    Pneumatic and control drawing.

4,    Electrical and control drawing.

5,    Spare Parts and wearing parts list.

Machine Basic Parameter

:	1.05.0 Mm		Length of machine:	1350 Mm
Speed of feeding:	2.0 m/s		Width of machine:	650 mm
Coiling inradium:	70100mm		Height of machine:	1700 mm
Coiling length:	1020 m		Weight of machine:	Approx300 kg
Production Rate:	58 Pcs/min(Based15mlength)		Power supply:	1 Phase AC 220V 50Hz 2Kw
Operator required:	1 person(Can Operate 24 units)		Compressed air:	0.40.6 Mpa1 m3/hr
