| Drawtube: | Binocular |
|---|---|
| Theory: | Biological Microscope |
| Brand Name: | BZ |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

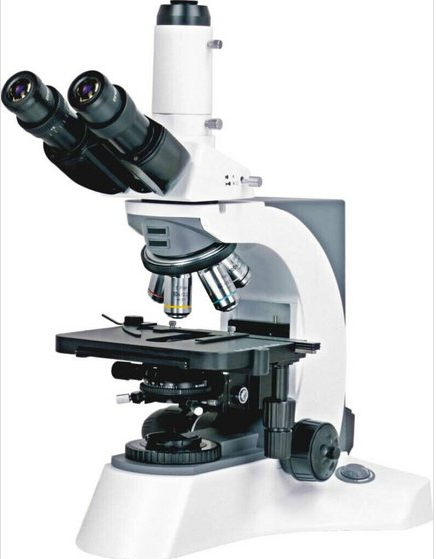

BZ-118 biological microscope is a high level microscope specially designed for laboratory research, with infinite corrected optical system providing excellent images. With infinite optical system providing excellent optical performance, innovative optical and structure design, this biological microscope makes your works easy and enjoyable.
Features
1. Excellent optical performance and friendly operation;
2. Wide field eyepiece, infinite plan achromatic objective and optional sextuple nosepiece;
3. Various accessories for upgrading, such as fluorescence, dark field and phase contrast.
Application
BZ-118 biological microscope is an ideal instrument for your research in biology, histology, patholoy, bacteriology, immunizations and pharmacy field , it can be widely used in medical establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specifications
Note: Yes - Standard Outfit, ○ - Optional
BZ-118 biological microscope is a high level microscope specially designed for laboratory research, with infinite corrected optical system providing excellent images. With infinite optical system providing excellent optical performance, innovative optical and structure design, this biological microscope makes your works easy and enjoyable.
Features
1. Excellent optical performance and friendly operation;
2. Wide field eyepiece, infinite plan achromatic objective and optional sextuple nosepiece;
3. Various accessories for upgrading, such as fluorescence, dark field and phase contrast.
Application
BZ-118 biological microscope is an ideal instrument for your research in biology, histology, patholoy, bacteriology, immunizations and pharmacy field , it can be widely used in medical establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specifications
| Model | Description | BZ-118 |
| Optical System | Infinite Optical System | Yes |
| Viewing Head | Siedentopf Trinocular Head, Inclined at 30°, Interpupillary 48-75mm | Yes |
| Tiltable Binocular / Trinocular Head | ○ | |
| Eyepiece | Extra Wide Field Eyepiece EW10×/ 22, Eyepiece Tube Diameter 30mm | Yes |
| Nosepiece | Backward Quintuple Nosepiece | Yes |
| Backward Sextuple Nosepiece | ○ | |
| Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | Yes |
| Infinite Plan Achromatic Objective 20×, 60×, | ○ | |
| Condenser | Swing-out Condenser NA 0.9/ 0.25 | Yes |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm | Yes |
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | Yes |
| Illumination | External Illumination, Aspherical Collector, Halogen Lamp 6V/30W | Yes |
| External Illumination, Aspherical Collector, Halogen Lamp 24V/100W | ○ | |
| LED Illumination | ○ | |
| Filter | Blue Filter | Yes |
| Green Filter | Yes | |
| Multi Viewing Head | Multi Viewing Head for 5 persons | ○ |
| Multi Viewing Head for 3 persons | ○ | |
| Multi Viewing Head for 2 persons | ○ | |
| Dark Field Attachment | Dark-field Condenser(Dry) | ○ |
| Dark-field Condenser(Oil) | ○ | |
| Upgradable | Photo Attachment | ○ |
| Video Adapter C mount 1× & 0.5× | ||
| Polarization Attachment | ○ | |
| Turret Phase Contrast Kit | ○ | |
| FL-800 Epi-fluorescent Attachment | ○ | |
| FL-LED Epi-fluorescent Attachment | ○ | |
| Temperature Controlled Stage | ○ |
Note: Yes - Standard Outfit, ○ - Optional
