| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | One year |
| Weight: | 300kg |
| Dimension(L*W*H): | 1220*960*1830mm |
| Power(W): | 4560 |
| Voltage: | 220V/380V |
| Ice Shape: | cube ice |
| Model Number: | XICA-2208 |
| Brand Name: | XHC |
| Place of Origin: | China (Mainland) |
| Capacity: | 1000kg/24h |
| Condition: | New |
Quick Details
Specifications

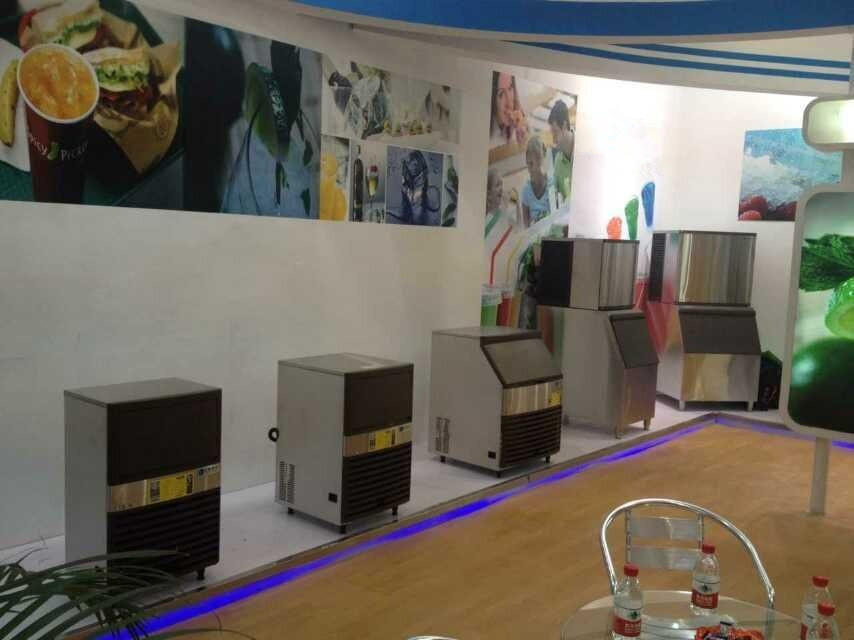

1000kg per day Automatic cube ice machine for shop using
1. Ice form small, the equipment special deigned for the laboratory, hotel, restaurant, coffee shop, sell the ice shop, beverage plants design.
2. Stainless steel shell, beautiful and practical.
3. The high fluorine-free compressor, economy energy saving, make the cooling performance more hasten is perfect.
4. The control system adopts microcomputer board, process monitoring, control the reliable, smooth operation, and perfect Protection.
5. the high heat exchanger and thin profile and air, increase effective volume, come loose hot effect more beautiful, reduce the operating cost.
6. Overload, water and ice full automatic detection and protection.
7. The double helix extrusion ice way, ice compact structure, small volume, reduce laboratory empty take up between.
8. Introduce the ice machine production line from abroad, reliable operation, product quality can be guaranteed.
|
|
Power supply |
ice shape |
max ice output |
storage capacity |
Overall Size(mm) |
|
Vertical ice maker (Air cooled) |
|||||
|
XICA-105 |
220V/360w |
square |
50kg |
18kg |
520*560*780mm |
|
XICA-165 |
220v/490w |
square |
75kg |
38kg |
700*660*920mm |
|
XICA-215 |
220v/600w |
square |
105kg |
38kg |
700*660*920mm |
|
Separated ice maker (water cooled/Air cooled) |
|||||
|
XICA-320 |
220V/780W |
Square |
140kg |
80kg |
560*840*1420mm |
|
XICA-430 |
220V/820W |
Square |
195kg |
100kg |
560*840*1530mm |
|
XICA-550 |
220V/920W |
Square |
230kg |
180kg |
760*840*1530mm |
|
XICA-750 |
220V/1280W |
Square |
320kg |
180kg |
760*840*1530mm |
|
XICA-1008 |
220V/1560W |
Square |
450kg |
270kg |
760*840*1760mm |
|
XICA-1208 |
220V/1980W |
Square |
500kg |
300kg |
760*840*1830mm |
|
XICW-1408 |
220V/2480W |
Square |
660kg |
450kg |
1220*960*1830mm |
|
XICW-1908 |
220V/3580W |
Square |
910kg |
450kg |
1220*960*1830mm |
|
XICw-2208 |
220V/4560W |
Square |
1000kg |
500kg |
1220*960*1830mm |
|
Remark : |
|
||||
|
1.Inlet water16C,ambient temperature35C. |
|||||
|
2.ice cube size :22*22*22mm 29*29*22mm |
|
||||
|
3.Voltage :3PH 380V 50HZ ,3PH 220V 60HZ . |
|||||
III.Main parts of Cube ice machine:
|
Items |
Remark |
|
Compressor |
XICA-105—XICA-750 : Aspera,Slovakia |
|
|
XICA/W-1008—XICA/W-2208: Tecumseh,France |
|
Condenser |
2.2mm space fin radiator (Air cooled)/ Copper tube coils (water cooled) |
|
Evaporator |
Upright type nickel copper evaporation plate |
|
Expanding valve |
DANFOSS ,Denmark |
|
Computer control |
XHC |
|
Filter drier |
Danfoss made inMexico |
|
Solenoid valve |
Saginomiya made inJapan |
|
Pump |
Morrill made inHangzhou |
|
Condensing fan |
Ebmpapst made inShanghai |
|
Refrigerant |
Dupont made inUSA. |
|
Ice cube pool |
Polyurethane foam overall |
