| Brand Name: | QUANSHUN VALVE |
|---|---|
| Place of Origin: | China (Mainland) |
| Port Size: | DN25 |
| Media: | Water |
| Temperature of Media: | Normal Temperature |
| Material: | Ceramic |
| Power: | Electric |
| Pressure: | Low Pressure |
| Structure: | Ball |
| Standard or Nonstandard: | Standard |
| Material: | Ceramic |
Quick Details
Specifications

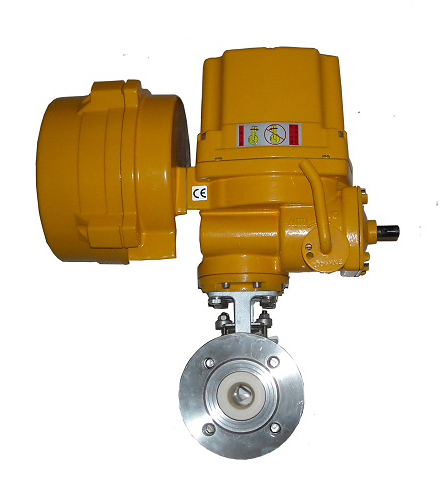

V type ceramic lined ball valve is a speciall ball valve,which apply ceramic materials to ball valve successfully.Ceramic ball valve is widely used in power plant desulphurization system and chemical plant,which is abrasion resistant and corrosion resistant.
Features
1.the hardness of the ceramic lined ball valve can be higher than HRC 80
2.the part contacting with the medium is produced from engineering ceramics,which contributes to the good corrosion resistance of the medium.
3.through grinding machining,Our ceramic ball valve has high precision and outstanding sealing performance.
4. V port design,have a nice control performance
5. Longer life time
Specification:
Size: DN15-DN200 1"- 8"
Pressure: PN1.6MPa /Class 150
Materials: WCB /A105 CF8/304 CF8M / 316
Operation: Manual,Pneumatic,Electric
1.the hardness of the ceramic lined ball valve can be higher than HRC 80
2.the part contacting with the medium is produced from engineering ceramics,which contributes to the good corrosion resistance of the medium.
3.through grinding machining,Our ceramic ball valve has high precision and outstanding sealing performance.
4. V port design,have a nice control performance
5. Longer life time
Specification:
Size: DN15-DN200 1"- 8"
Pressure: PN1.6MPa /Class 150
Materials: WCB /A105 CF8/304 CF8M / 316
Operation: Manual,Pneumatic,Electric
