Product Brief

1.MATE4896RGB, A sophisticated appearance, the structure of precision, ultra-light and ultra-thin, easy to carry, can be re-used to use LED display equipment. Widely used in large-scale commercial exhibition / venue, airport / station / dock shuttle activities, boxing / Free combat competition, entertainment night field, police night patrol tips etc.



2.The product shell is made of pure aluminum material, which is cut and polished by CNC lathe to ensure the products are light and precise. Using sandblasting oxidation surface treatment, the product appearance of fine wear-resistant texture.



3.Use high-quality full-color SMD 2121, show color: Red/Green/Yellow/Blue/White/ Cyan-blue/Pink. Resolution: 48(H)*96(L), Total 4608 Pixels. Pixel pitch: 4MM. Display size: 192mm(H)*384mm(L), Dimension: 228mm(H)*420mm(L)*22mm

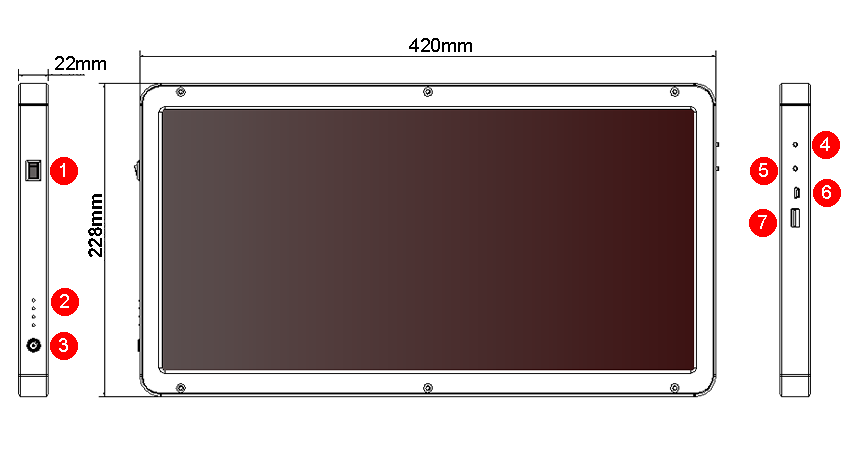

Mate4896RG Schematic

Lable1: Power switch

Lable2: Charging indicator, Value:25%,50%,75%,100%

Lable3: Charging port (Extra power input port)

Lable4: Brightness adjust,Value:25%,50%,75%,100%

Lable5: Program button,12 programs optional, AUTO: Play all programs

Lable6: USB communication port. Directly to the computer USB port for Update programs. (Notes: The USB driver is PL2303)

Lable7: U-Disk (Notes: Low power, No communication)







4.Operating software design is simple, easy to learn. Display mode rich, support the world language, support for partition display, support for multiple clock modes, support 200 programs. (A'a among them 1 to 12 programs by the display side of the selection of broadcast button control), memory capacity 4M, built-in classic GIF animation, theme GIF background animation, application GIF animation and festive atmosphere GIF animation..



5.Built-in professional-grade communications IC. Support computer USB port

communication. Support U disk communication.



6.Built-in 10,000 mAh safety polymer lithium battery, can be recharged to use, 3 to 4 hours fully charged. Support charging by power Bank. The following is a test record:

1> Hite text stable display 12 hours, after the yellow continued to show 10 hours, the total display 22 hours.2> Display red / green / blue single color, working time is 60 hours.3>Show yellow, pink, cyan, working time 40 hours.



7.The product composition and packaging sizes, NW, GW

Main product		Left side view (without fitting, N.G: 1.6KG) Left side: Power switch/ Charge indicator/Power input
		Front view Optimum viewing distance:1 to 15M Visual distance: within 25 meters
		Right side View Right side: Brightness button/program button/USB Port/U-disk port
Power adapter		Optional Certification: CE/UL/CCC/PSE etc
USB cable		Copper wire 1 meter
U-Disk		USB2.0/128M
Bracket		Optional
Power cable		For power bank using
Package		Dimension:58CM*28CM*8CM G.W:2.3KG
Package content		Main unit/Power adapter/U Disk/USB cable/DC charger cable/Bracket
For more information, please contact salesman
