| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Certification: | ISO CE |
| Features: | Thermoplastic Road Marking Machine |
| Weight: | 150KG |
| Dimension(L*W*H): | 800*1260*1000mm |
| Model Number: | YHDJ-S |
| Brand Name: | Winfar |
| Place of Origin: | China (Mainland) |
| Power(W): | Hand-push |
| Condition: | New |
| Heating Mode: | Liquefied petroleum gas |
| Cylinder capacity: | 160kg |
| Glass beads bin capacity: | 10kg |
| Marking width: | 100/150/200/300/400/450mm |
| Marking thickness: | 1~2.5mm |
| Heating temperature: | 0-300 |
| Recommended discharge temperature: | 180-220 |
Quick Details
Specifications

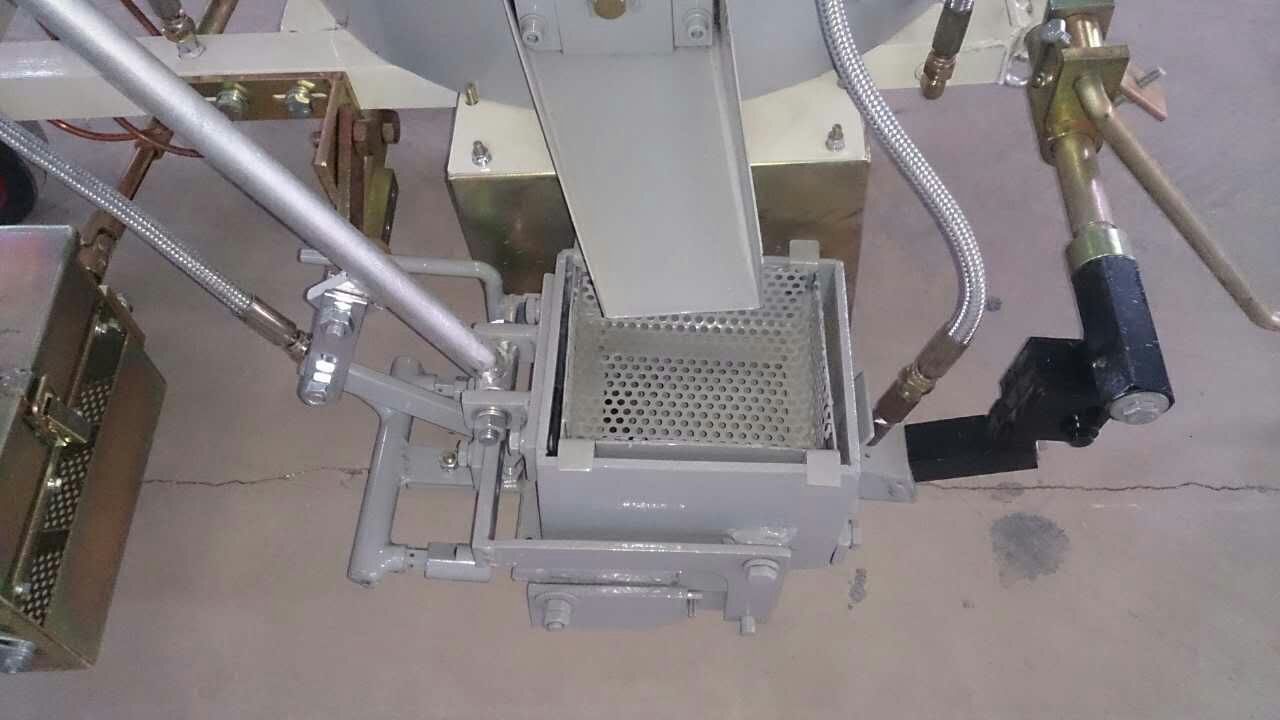

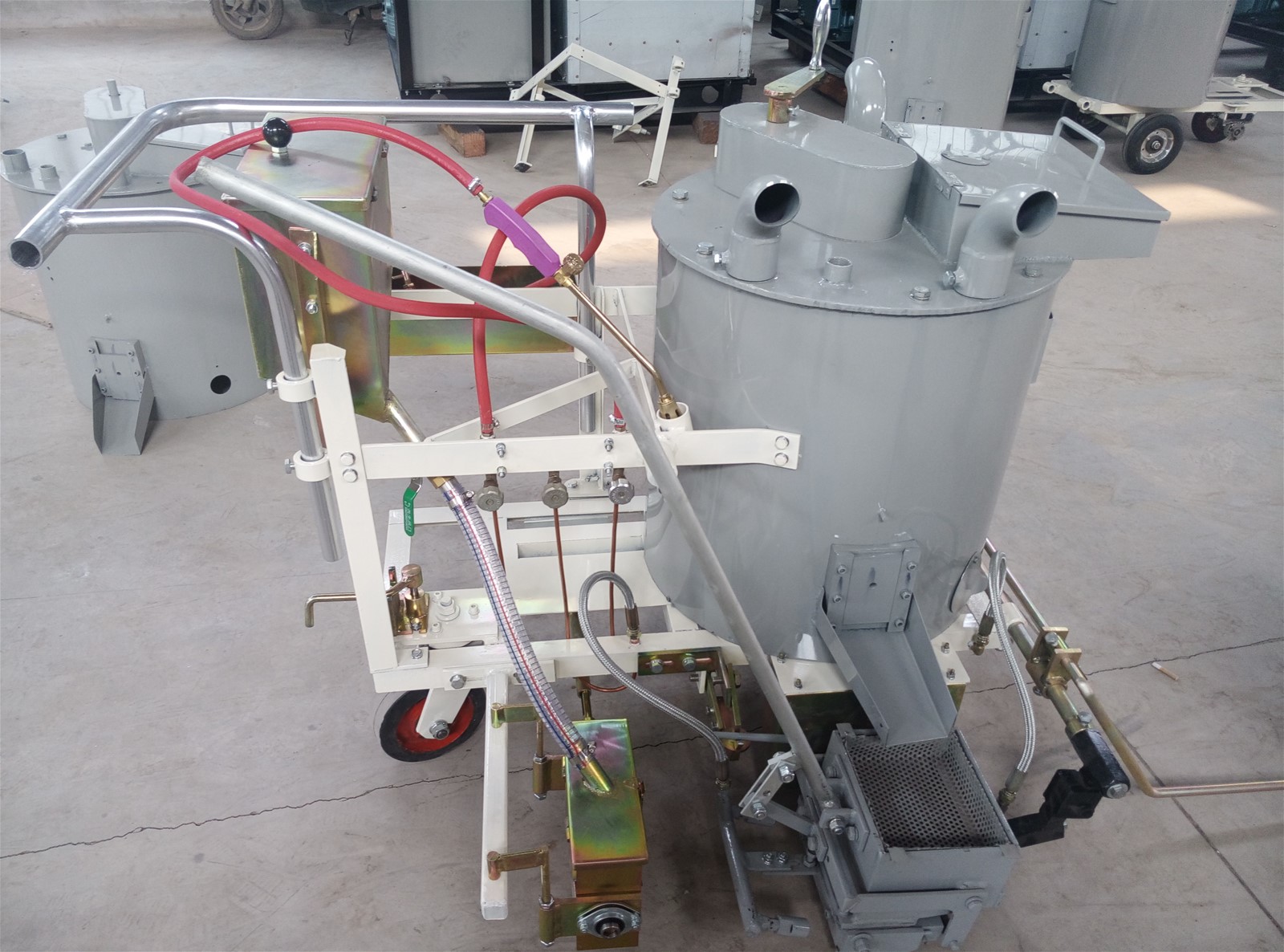

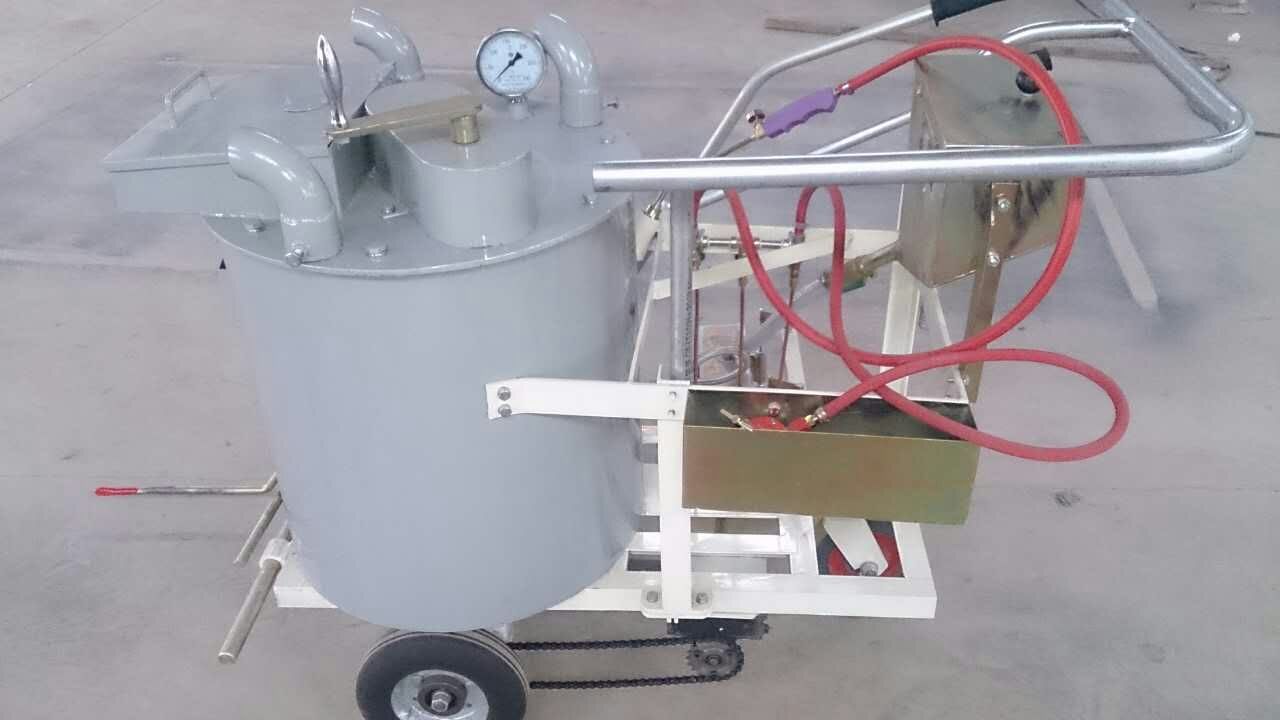

Multi-function Thermoplastic Road Marking Machine
Technical Data
Model Number: YHDJ-S
Heating Mode: Liquefied petroleum gas
Cylinder capacity:160kg
Glass beads bin capacity:10kg
Marking width:100/150/200/300/400/450mm
Marking thickness:1~2.5mm
Heating temperature:0-300
Recommended discharge temperature:180-220
Machine weight:150kg
Dimensions:800*1260*1000mm
Application

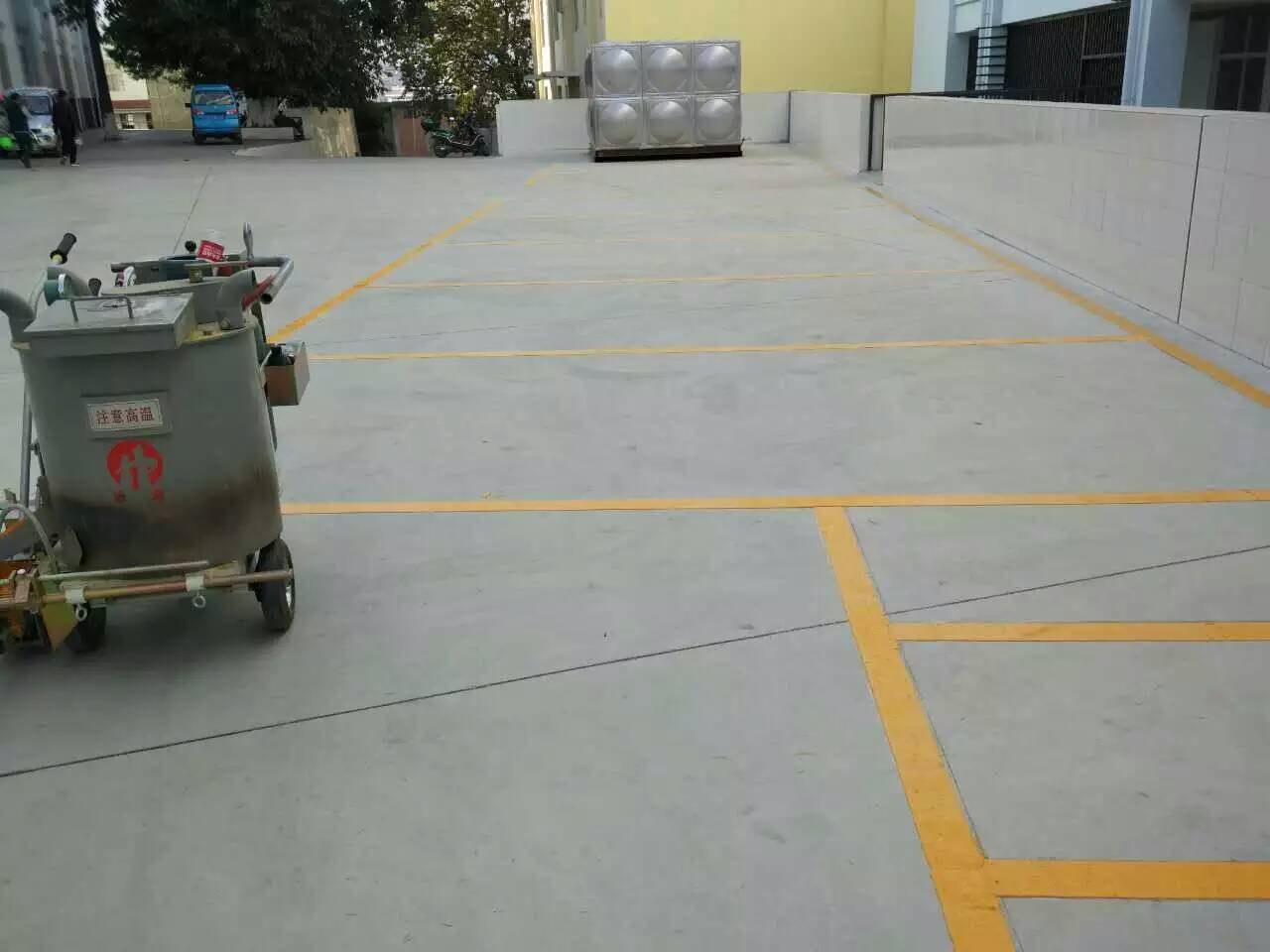

Thermoplastic paint pre-heater have to be carried by trucks for operation and cannot enter areas like underground parking lots due to floor height and area limit. Furthermore, the thermoplastic road marking machine can't be used to melt coating. Multi-function thermoplastic road marking machine integrates thermoplastic pre-heater with road marking machine and can complete the constructions of various types of lines independently in the following areas:
Underground parking lots
Gas station
Factory floor & warehouse floor
Sports ground
Wharf
Residential community etc small project
