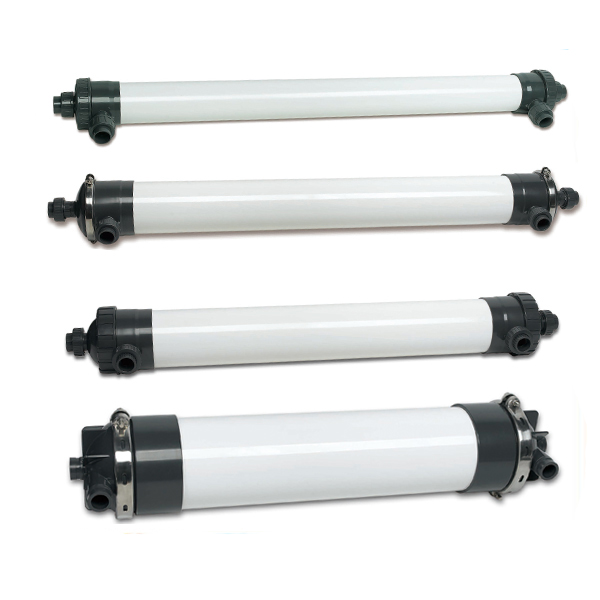

UF Module HM90 Ultrafiltration Components
Model No.	HM90PAN	HM90PS	HM90PP	HM90PVDF
Size	L: 90*1162mm  S: 90*678mm	L: 90*1162mm  S: 90*678mm	L: 90*1162mm  S: 90*678mm	L: 90*1162mm  S: 90*678mm
Hollow fiber material	PAN	PS	PP	PVDF
Hollow fiber ID/OD	1.0mm/1.6mm	1.0mm/1.6mm	0.4mm/0.5mm	0.7mm/1.3mm
MWCO(Daltons)	50k~100k	10k~100k	50k~100k	100k~200k
Membrane area	L-4.5m2  S-2.3m2	L-4.5m2  S-2.3m2	L-8.9m2  S-4.4m2	L-7.0m2  S-3.4m2
Filtration method	Inside-out		Outside-in
Initial flux L/H, 0.1mpa, 25 pure water as feed	900(L) 420(S)	900(L) 420(S)	1100(L) 530(S)	1000(L) 480(S)
Designed water flux	40-120L/m2/h		40-80L/m2/h
End seal material	Epoxy resins
Housing material	UPVC

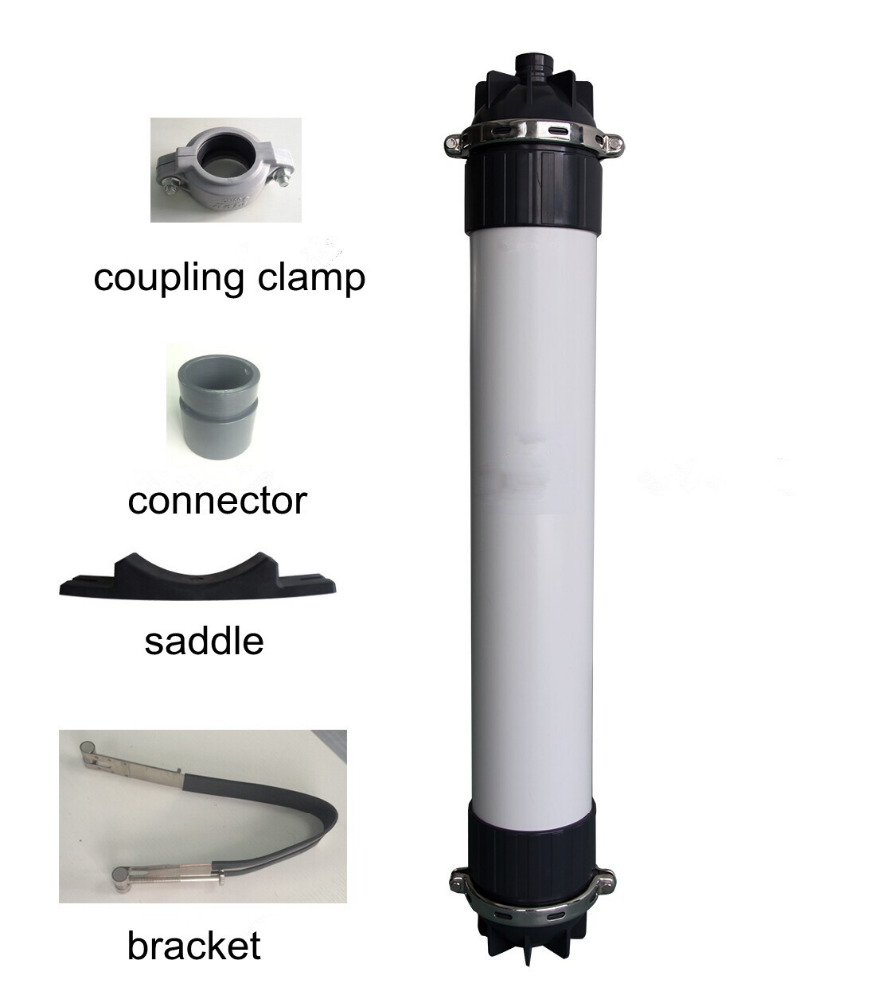

Connection/Pipe	Union connection/PVC Pipe OD.32mm
Max. Feed pressure	0.3mpa	0.3mpa	0.3mpa	0.25mpa
Max. trans-membrane pressure	0.2mpa	0.2mpa	0.2mpa	0.15mpa
Normal trans-membrane pressure	0.02-0.15mpa	0.02-0.15mpa	0.02-0.15mpa	0.01-0.1mpa
Feed turbidity	50ntu
Permeate turbidity	0.1ntu
Max. working temperature	5-45
PH range	3-9	2-12	1-14	2-13
Microorganism, pathogen	99.99% removal
