| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE UL ISO |
| Usage: | Longitudinal seam of cylinder |
| Weight: | 1000 kg |
| Dimensions: | 2000 x 800 x 1500 mm |
| Rated Duty Cycle: | 80% |
| Rated Capacity: | 500 KVA |
| Current: | 500A |
| Voltage: | 380V |
| Model Number: | LSW |
| Brand Name: | yijie |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

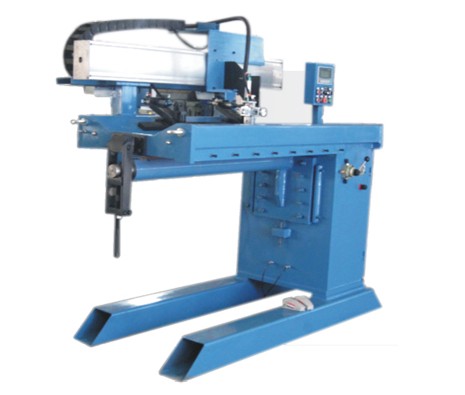

Longitudinal Seam Welder for Thin Thickness Plate Stainless Cylinders
Automatic stainless ice can longitudinal seam welders is a equipment used to produce linear welds on a butting
Edges of Thin wall cylinder or rectangular cylinder. this type high quality lOngitudinal seam welders includes: machine
Seat ,Crossbeam ,Hold down fingers,Back-up mandrel,Water cooling copper interleaver ,Travel Carriage and Control,
Dual Axis Slides etc.Hold down fingers can generates a clamping force of up to 25 kg/cm through air-operated;Travel
Carriage and Controll is mounted on the crossbeam,,It is driven by a DC motor to make the straight line sport on the
Horizontal beam.Dual axis slides provided with manual or dynamoelectric type;Control system can add the function of
Arc length control or welding oscillator.
Main technical parameters:
Press type: pneumatic by piano
Diameter of Cylinder: 200-1500 mm
Length of Cylinder: 100-3000 mm
Welding Type: MIG / MAG / SAW
