| Brand Name: | Huamo |
|---|---|

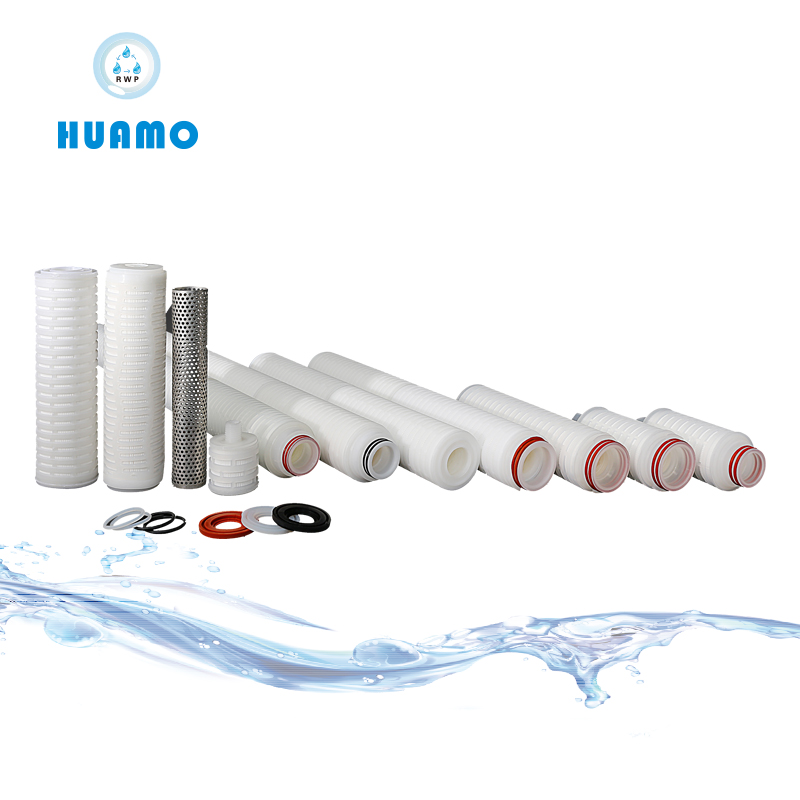

| name: | PES/PTFE/PP/Nylon Membrane Pleated Cartridge 0.1 Micron Water Filter |
| Material: | PES/PTFE/PP/Nylon |
| application: | water treatment |
| Type: | filter cartridge |
| Model Number: | PPL |
| Place of Origin: | China (Mainland) |
| Media: | Polypropylene |
| Support layer: | Polypropylene |
| Core/Cage/End adaptor: | Polypropylene |
| Sealing Method: | Thermal bonding |
| Micron Rating: | 0.1,0.2,0.45,0.65,1,3,5...um |
| Application: | Pre-filtration for RO system, DI water |
| Shipping: | By sea/DHL/UPS/TNT/Fedex |
| MOQ: | 1 pc |
| Payment: | TT/Western union/Paypal |
| Length: | 5",10",20",30",40" |
Quick Details
Specifications
| PP Membrane Pleated Filter Cartridge | |||
| Material of Construction | Filter Media | Polypropylene | |
| Support Layers | Polypropylene | ||
| Micron Rating | 0.1,0.2,0.45,0.65,1.0,2.0,3.0,5.0,10,30,50,70,100um | ||
| Inner Core | Polypropylene | ||
| Outer Cage&End Cap | Polypropylene | ||
| Seal Method | Thermal Bonded, No Adhesives | ||
| O-ring/Gaskets | EPDM, Silicone, Buna, Viton | ||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75") | |
| Inner Diameter | 28mm(1.10") | ||
| Length(Based on DOE End Cap) | 5", 10", 20", 30", 40" | ||
| Filtration Area(m2) | 0.65m2 per 10" | ||
| Operating Conditions | Normal Operating Temperature | up to 65(140) | |
| Max Operating Temperature | 80(176) at P1.0 bar(14.5psi) | ||
| Forward Flow Direction | 5.1 bar(75psi) at 25(77) | ||
| Reverse Flow Direction | 2.1 bar(30psi) at 25(77) | ||
| PH Value Compatibility | 1-14 | ||
| Sterilization Temperature Time | Steam Sterilization for 30 minutes at 1212, 100 cycles, Autoclave 30minutes(optional) | ||
| Cartridge Safety | Endotoxin | 0.25 EU/ml | |
| Extractables | 0.03g/10" | ||
