| Brand Name: | AFT |
|---|---|
| Accuracy: | 0.3% |
| Power Supply: | 220VAC/AC160V~250v |
| output: | RS485/RS232,4~20mA |
| Medium: | Liquid |
| Model Number: | AFT-MF |
| Place of Origin: | China (Mainland) |
| Display: | LCD Digital |
| Material: | ABS Engineering plastics |
| Medium: | Liquid |
| Pressure: | Normal pressure |
| Connection: | Threaded |
| Measuring range: | 0~93m3/s |
Quick Details
Specifications
Digital ultrasonic open channel water flow meter
Introduction
Ultrasonic open channel flowmeter is a high precision using the ultrasonic measurement of Venturi channels or Parshall flume flow meter, ultrasonic measurement in contact with the channel surface bounce back after the time, then according to the formula to calculate the channel flow, it can provide output flow, the flow rate and total flow.
Product Description
Flow range |
0~93m3/h(and determine the range with weir tank specifications) |
Weir trough type |
Triangular weir, Rectangular weir, Full width weir, Parshall flume |
Display accuracy |
Depending on the input signal. the flow error related with weir trough: Triangular weir:1~2%; Rectangular weir: 1~4%; Parshall flume: 3% |
Display |

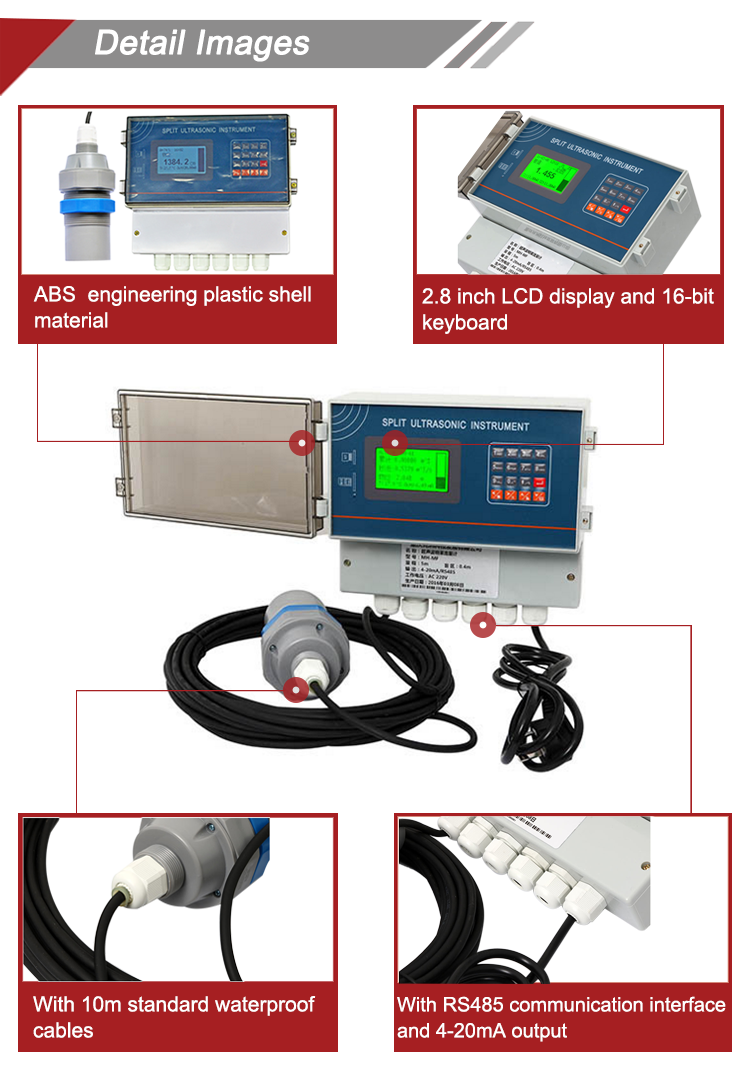

2.8 inches LCD display, it can display height of liquid level, Instantaneous flow rate, cumulative flow, time flow, daily flow, year flow, month flow, date, month and year, the battery level (Can be arbitrarily set) |
Signal output |
4-20mA, RS485/ RS232 |
Relay Contact capacity |
AC:5A 120V DC:10A 24V |
Power supply |
Working power: DC24V, or AC 160V-250V Normal power: <5 W |
Physical property |

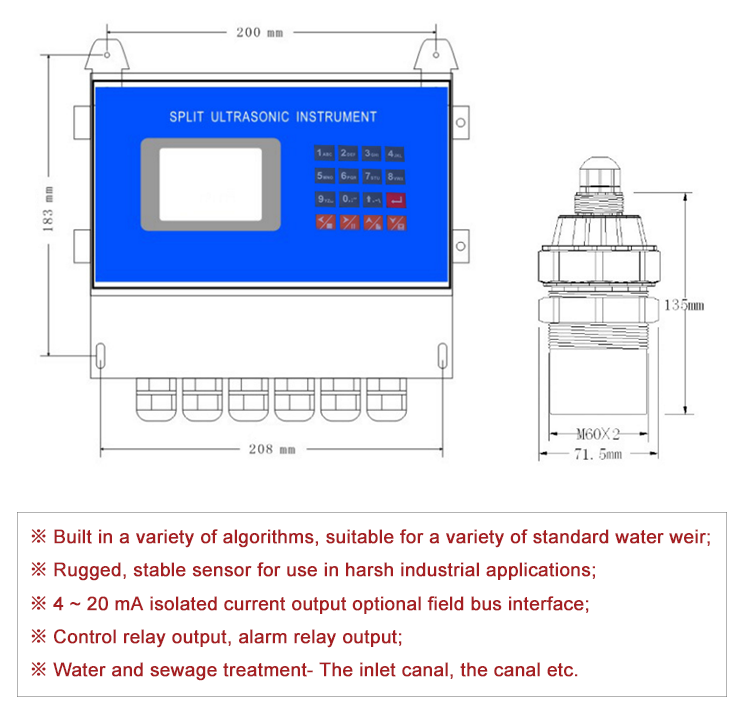

Main body shape size: 240*184*110 mm; Shell material: ABS Transducer: PP Connection: Thread or Screw fixation; Installation: Screw M48*1.5 Keyboard: Five bit chip key Sensor wire: 10M (Optional) |
ENvironmental performance |
Working temperature: 0~50 Ambient humidity: 85RH Pressure: normal pressure |
Data storage |
the past 168 hour flow. the past 31 days flow. the past 36 months flow and the past 10 years flow |
Optional instruments |
12V Battery Level gauge lead: the most remote can be connected to 1000 meters, need to be set by yourself. Minimum display resolution: 1MM Temperature compensation: Automatic temperature compensation Working frequency: 20KHZ~200KHZ (related to different models and specifications) Locale setting: through the machine button to complete Calibration: Factory calibration,also can on site calibration Display: 3 lines LCD display Support data collection |
