| Brand Name: | Huamo |
|---|---|

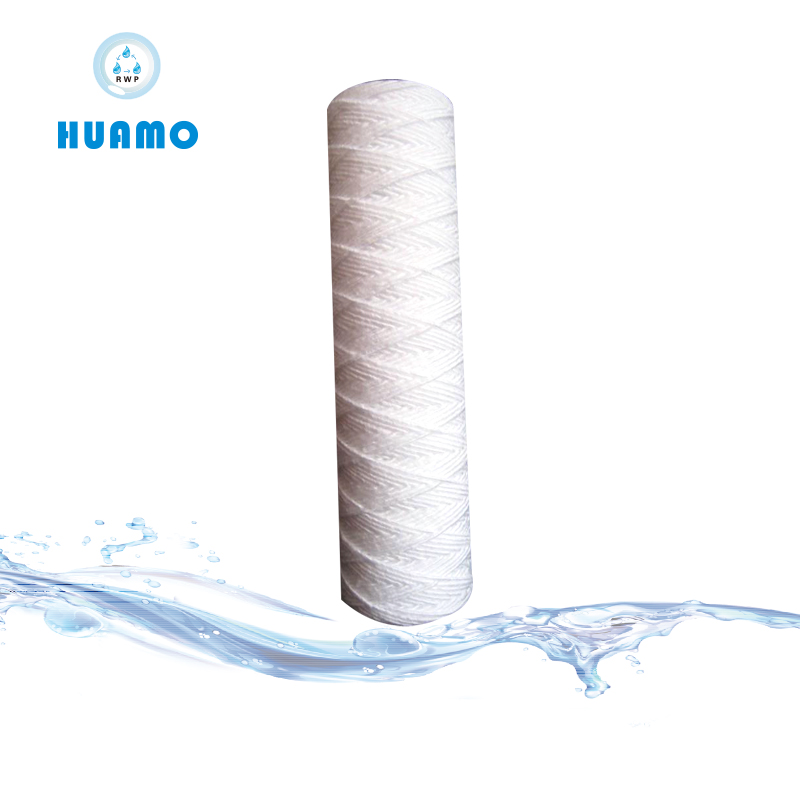

| name: | PP String Wound Water Filter Cartridge for Water Treatment |
| Material: | PP |
| application: | water treatment |
| Type: | string wound filter cartridge |
| Model Number: | String Wound Filter Cartridge |
| Place of Origin: | China (Mainland) |
| Material: | Polypropylene, Cotton, Glass Fiber |
| Core: | Polypropylene, Stainless Steel |
| Micron Rating: | 1,3,5,...150um |
| Length: | 5",10",20",30",40" |
| Application1: | Organic Solvent |
| Application2: | Dilute acids |
| Application3: | Chemicals |
| Shipping: | By sea/DHL/UPS/TNT/Fedex |
| MOQ: | 1 PC |
| Payment: | TT/Western Union/Paypal |
Quick Details
Specifications
| String Wound Filter Cartridge | |||
| Material of Construction | Filter Media | Polypropylene, Cotton, Glass Fiber | |
| Micron Rating | 1.0,2.0,3.0,5.0,10um | ||
| Inner Core | Polypropylene, Stainless Steel | ||
| Outer Cage&End Cap | Polypropylene | ||
| O-ring/Gaskets | EPDM, Silicone, Buna, Viton | ||
| Cartridge Dimensions | Outer Diameter | 62-65mm, 110-115mm | |
| Inner Diameter | 28mm | ||
| Length(Based on DOE End Cap) | 10", 20", 30", 40" | ||
| Operating Conditions | Maximum Differential Pressure | 4.5 bar at 25 | |
| Recommended Change Out |
1-1.5 bar | ||
| Maximum Temperature | PP Yarn+PP Core(80) Cotton Yarn+SS Core(180) Glass Fiber+SS Core(200) | ||
